Hardware Installation - 21 -
English

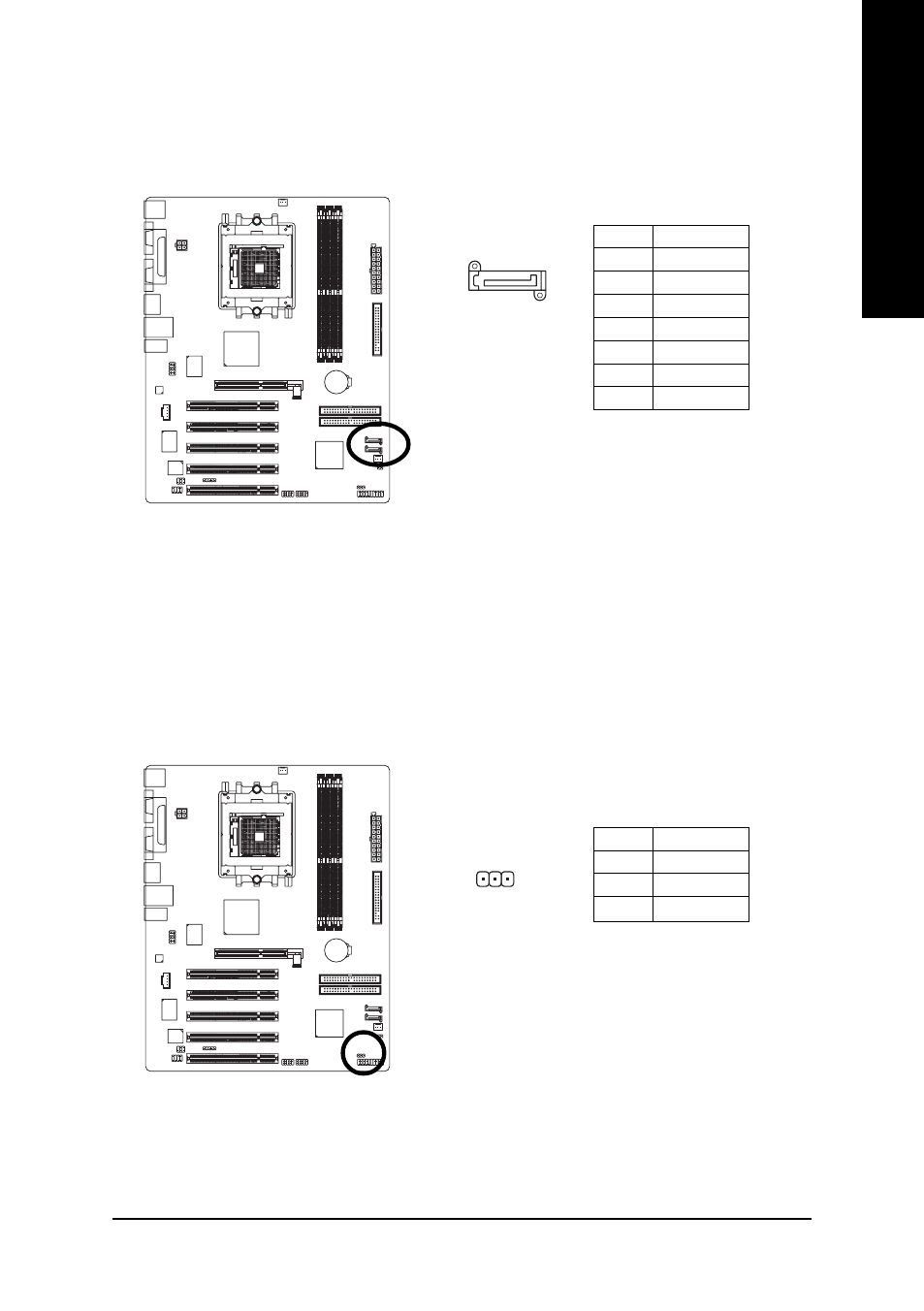

8) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will
blink when the system enters suspend mode.
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
7) SATA0/ SATA1 (Serial ATA Connector)
Serial ATA can provide up to 150MB/s transfer rate. Please refer to the BIOS setting for the Serial
ATA and install the proper driver in order to work properly.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
1 7
1
