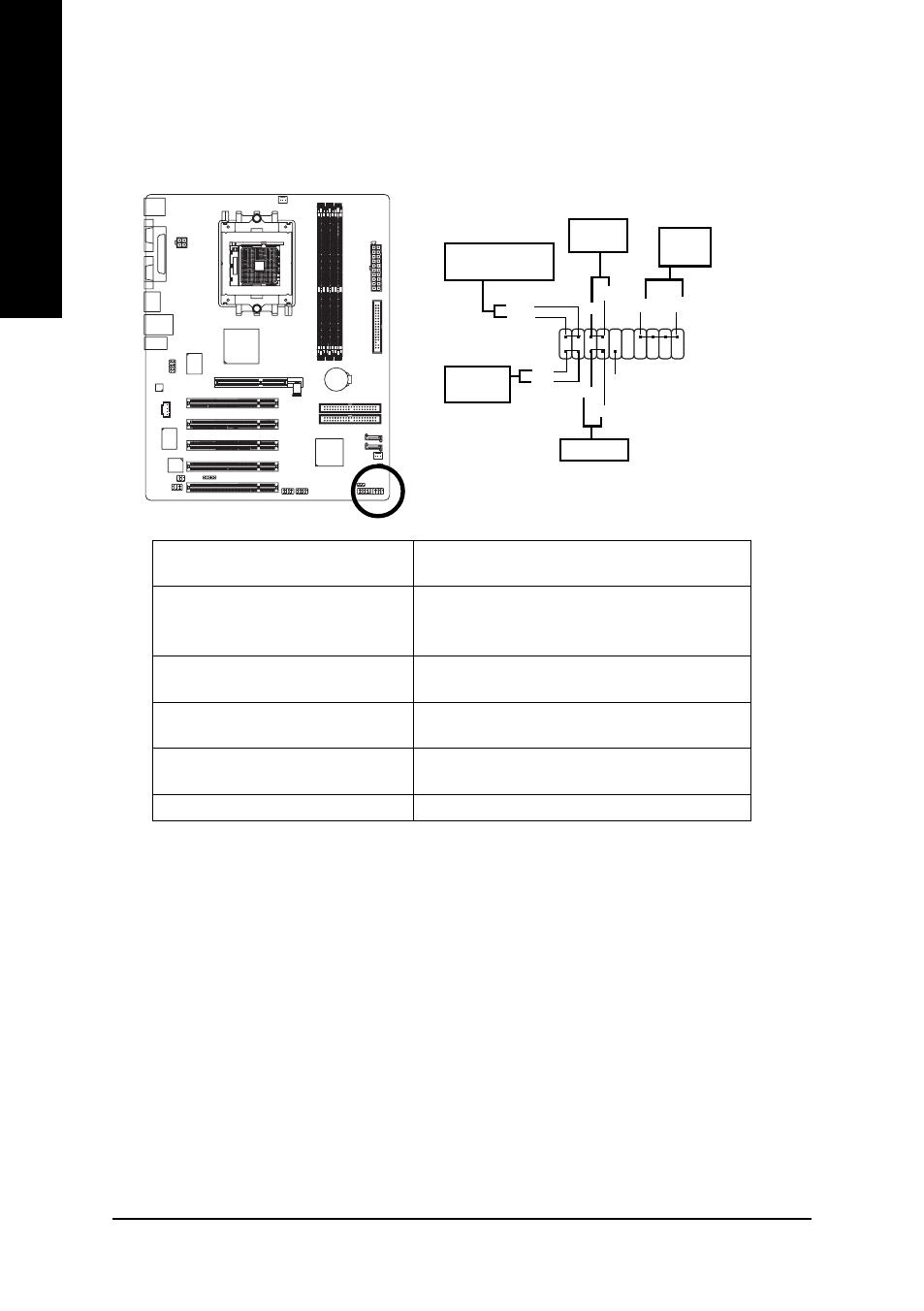

9) F_PANEL (Front Panel Jumper)
Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis
front panel to the F_PANEL connector according to the pin assignment below.
SPK-
SPK+
20
Speaker
Connector
19
IDE Hard Disk
Active LED
Reset Switch
2
Soft Power
Connector
MSG+
MSG-
Message LED/Power/
Sleep LED
PW-
PW+
1
HD+
HD-
RST+
RST-
NC
HD (IDE Hard Disk Active LED)
Pin 1: LED anode(+)
(Blue)
Pin 2: LED cathode(-)
SPEAK (Speaker Connector)
Pin 1: Power
(Amber)
Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch)
Open: Normal
(Green)
Close: Reset Hardware System
PW (Power Switch)
Open: Normal
(Red)
Close: Power On/Off
MSG(Message LED/Power/Sleep LED)
Pin 1: LED anode(+)
(Yellow)
Pin 2: LED cathode(-)
NC (Purple)
NC
