GIGABYTE M1405 User Manual
Page 53
English
43
M1405 SERIES USER’S MANUAL

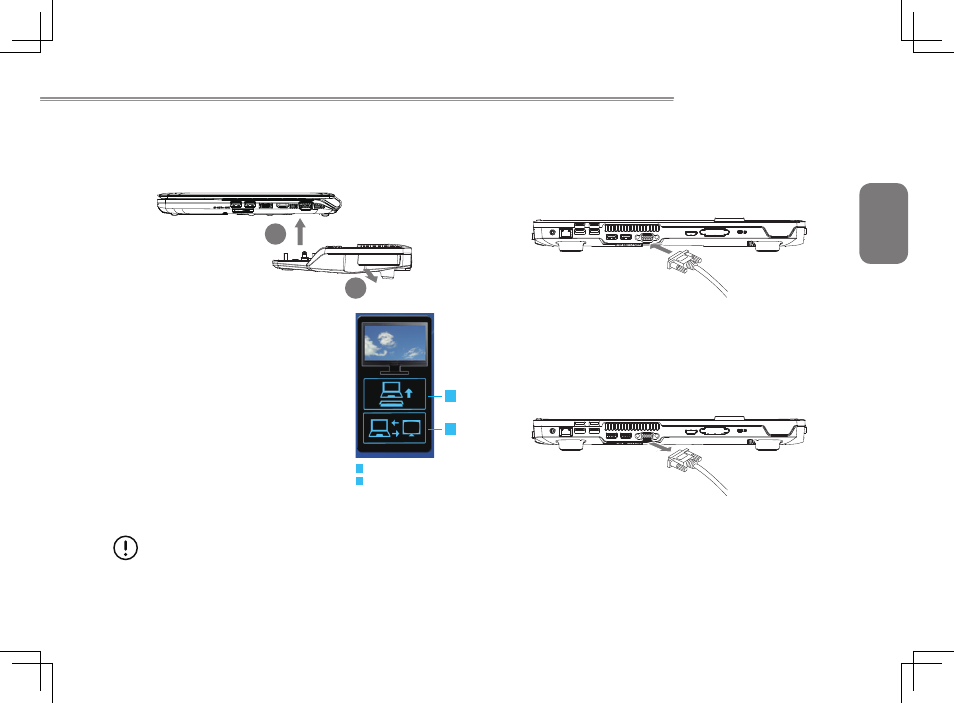

7.6 Attachment: Undocking the Notebook
Follow the guide below to undock the notebook from the docking station:
Please follow the instructions to learn how to remove the notebook.
3
2
Un-Docking
Monitor Setup
A
B
A
B
1. If the docked computer is on, you can
initiate the undocking process by 1) Pressing
the “Un-Docking” button on the Docking
Station. 2) Clicking the “Un-Docking” icon in
the Docking Control Gadget.
2. Pull the Ejector Level out and back until the
notebook unclips from the docking station.
3. Lift the notebook off of the docking station
from the back of the notebook so as not to
damage the docking connector.
An alternate option to step one is to Shut
Down the notebook first and the follow steps 2 and 3.
WARNING:
To avoid system crash or data loss, make sure to follow the
above instruction to safely remove the computer from the
Docking Station.
7.7 How to: Connect an External D-Sub Display
Connect an External D-Sub Display
To insert the cable, simply line it up with the port on the back of the
dock and press it into the port securely. Tighten the two securing
screws so as to ensure that the cable stays connected.
Disconnect an External D-Sub Display
To remove the cable simply loosen the securing screws and grab
the head of the cable and gently pull it out of the dock, ensuring that
the port is no longer active with a display out-put. DO NOT pull by
the cable itself is this can damage the display cable of the monitor
or projector or display device.
