6.7 WWAN 3G Connection

The M1405, depending on configuration, features a WWAN 3G

Connection. This section will briefly explain how to install and set up

the WWAN 3G unit if it did not ship with your M1405.

If you purchased the GIGABYTE WWAN 3G Module separately you

should have these items in the package:

1x WWAN 3G Mobile Broadband Card

1x Driver CD

1x Quick Installation Guide

To install the 3.5G Mini Card please follow these steps, however

if you are not comfortable doing so, please contact the supplier

to install the Module for you. Ensure the M1405 is off before

proceeding:

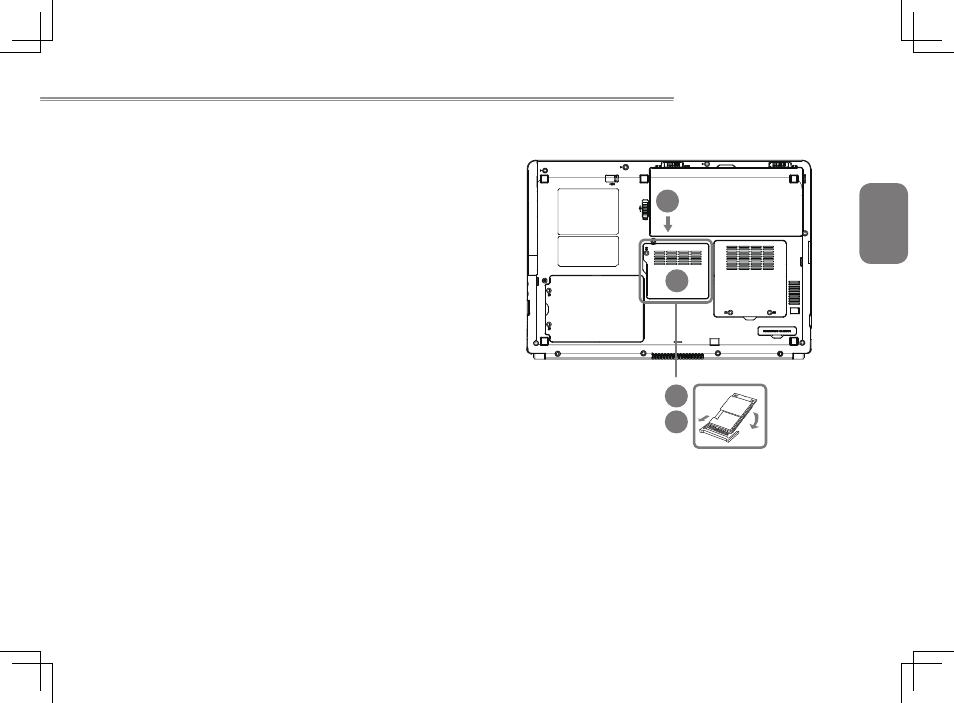

1. Remove the Comm. Bay cover shown above to reveal the Mini

Card slots. There should be one open slot available.

2. Line up the 3.5G mini card with the slot, making sure to check the

alignment of the notch, and press the card into the slot.

3. There should be an antenna plug available to plug into the mini

card to allow for signal reception and transmission - Plug this into

the port on the card. Follow the software installation steps on the

next page.

4. The SIM card slot is under the battery in the battery bay. Follow

the How To Remove Battery guideline to gain access to the slot

and then install the SIM card.
