replace bolt from
bottom side up
into square holes on rear foot tube
replace washer
and nut from top side and nut from top side
replace washer
and nut from top side
rear foot tube
assembly shown
(no roller on
rear foot tube)
rear of unit
seat post
height
adjustment
knob
6

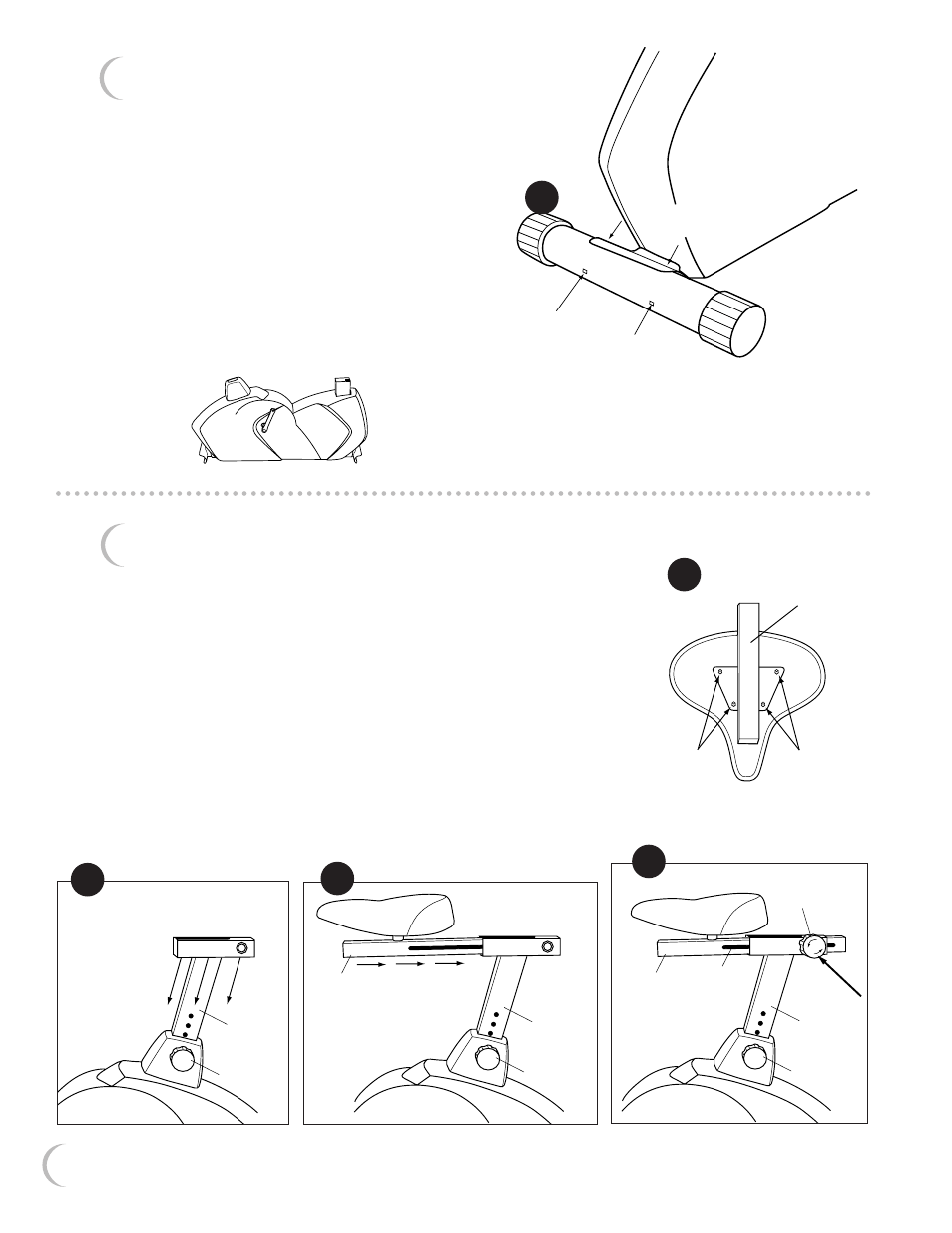

STEP 1 – Foot Tube Assembly
Remove the two Carriage Bolts, Washers and
Nylon Nuts from both the Front Foot Tube with
Rollers and the Rear Foot Tube with Caps.
Align the Rear Foot Tube with the rear of the
Main Frame Assembly. Make sure the square
holes in the Rear Foot Tube are on the outside.
Insert Bolt through the Rear Foot Tube and
Main Frame Assembly. Secure with Washers
and Nuts you just removed. Tighten with the
Wrench provided.
Repeat on the front of the unit using the
Front Foot Tube with Rollers.
STEP 2 – Seat Assembly
a) Lay the Seat upside down. Remove the four Nuts and Washers
on the underside of the Seat. Place the Seat Post Slider over the
Bolts on the back of the Seat. Replace the Washers and Nuts.
Tighten with the Wrench provided.
b) Slide the Seat Post into the rear of the Main Frame by loosening
the Height Adjustment Knob (aligning the holes with the adjust-
ment Knob). Once in position, turn the Height Adjustment Knob
to tighten it.
c) Slide the Seat Post Slider into the Seat Post making sure the Seat
is facing forward.
d) Insert the Seat Adjustment Knob into the hole on the Seat Post
and tighten into place. Make sure the Seat Post Slider is pushed
into the Seat Post far enough for the Seat Adjustment Knob to
“catch” into the slot on the Seat Post Slider.
seat post
slider
nuts and
washers
nuts and
washers
2a
seat post
slider
seat
seat adjustment
knob
seat post
height
adjustment
knob
slot
seat
seat post
height
adjustment
knob
seat post
slider
2b
2d
2c
replace washer
and nut from top side
main frame
assembly
front
of unit
rear
of unit
1
