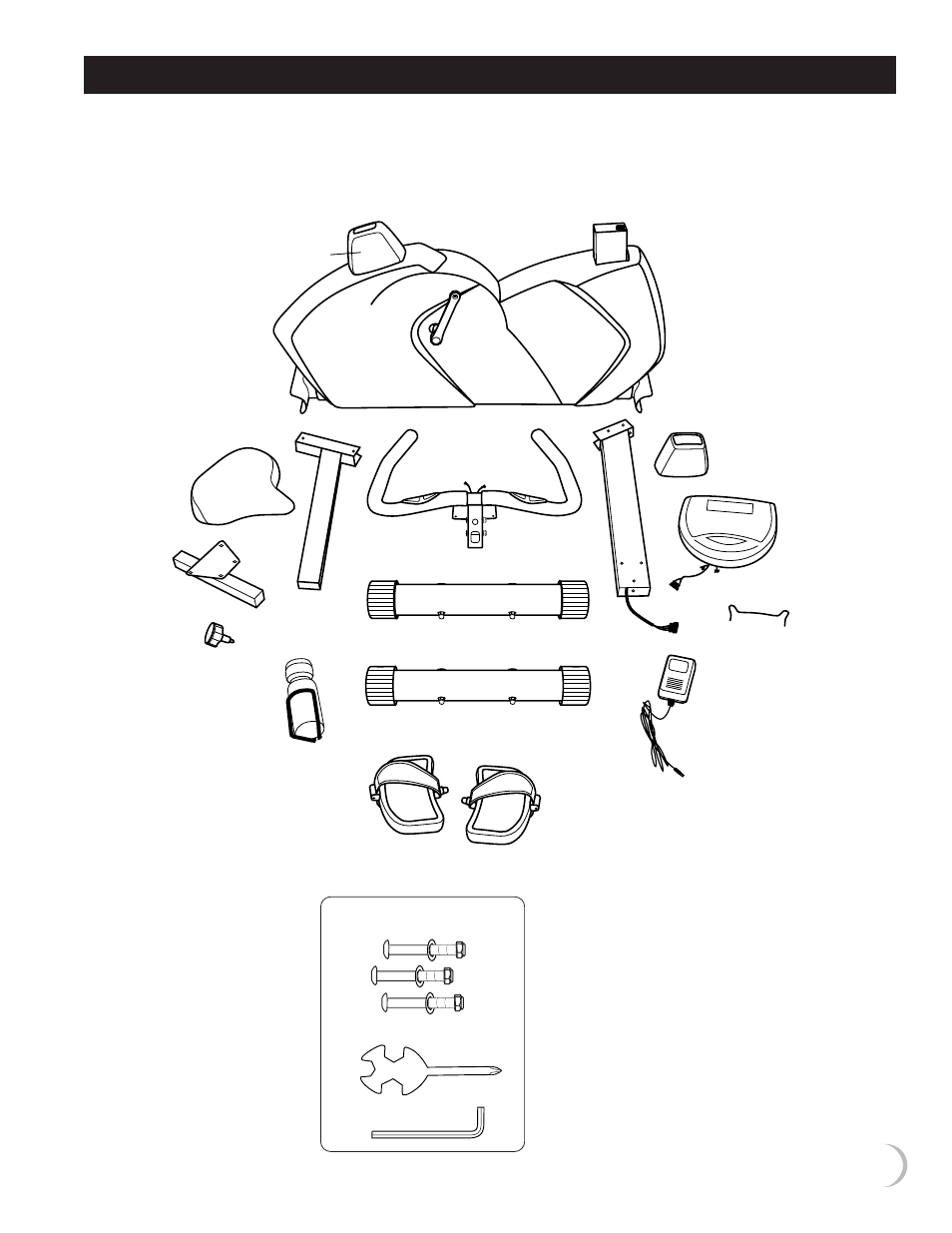

5
water bottle
with holder
computer
book holder
AC adapter
handlebar
tube
cover
handlebar
handlebar
tube
seat adjustment
knob
seat
post slider
seat
post cover
seat
main frame
assembly
front foot tube with rollers
rear foot tube with caps
seat
post
tube
L & R foot pedals & straps
front
of unit
rear
of unit
Fastener
Pack
Tools Required:
(included)
Multi Hex Tool with
Phillips Screwdriver
Allen Wrench
multi hex tool
with phillips
screwdriver
M8 x 60mm allen bolts
M8 washers and M8 nylon nuts
allen wrench
13mm
6mm
15mm
17mm
Occasionally our products contain components that are pre-lubricated
at the factory. We recommend that you protect flooring, or anything else
the parts may contact, with newspaper or cloth.
ASSEMBLY INSTRUCTIONS
