2. WIRING
Wiring

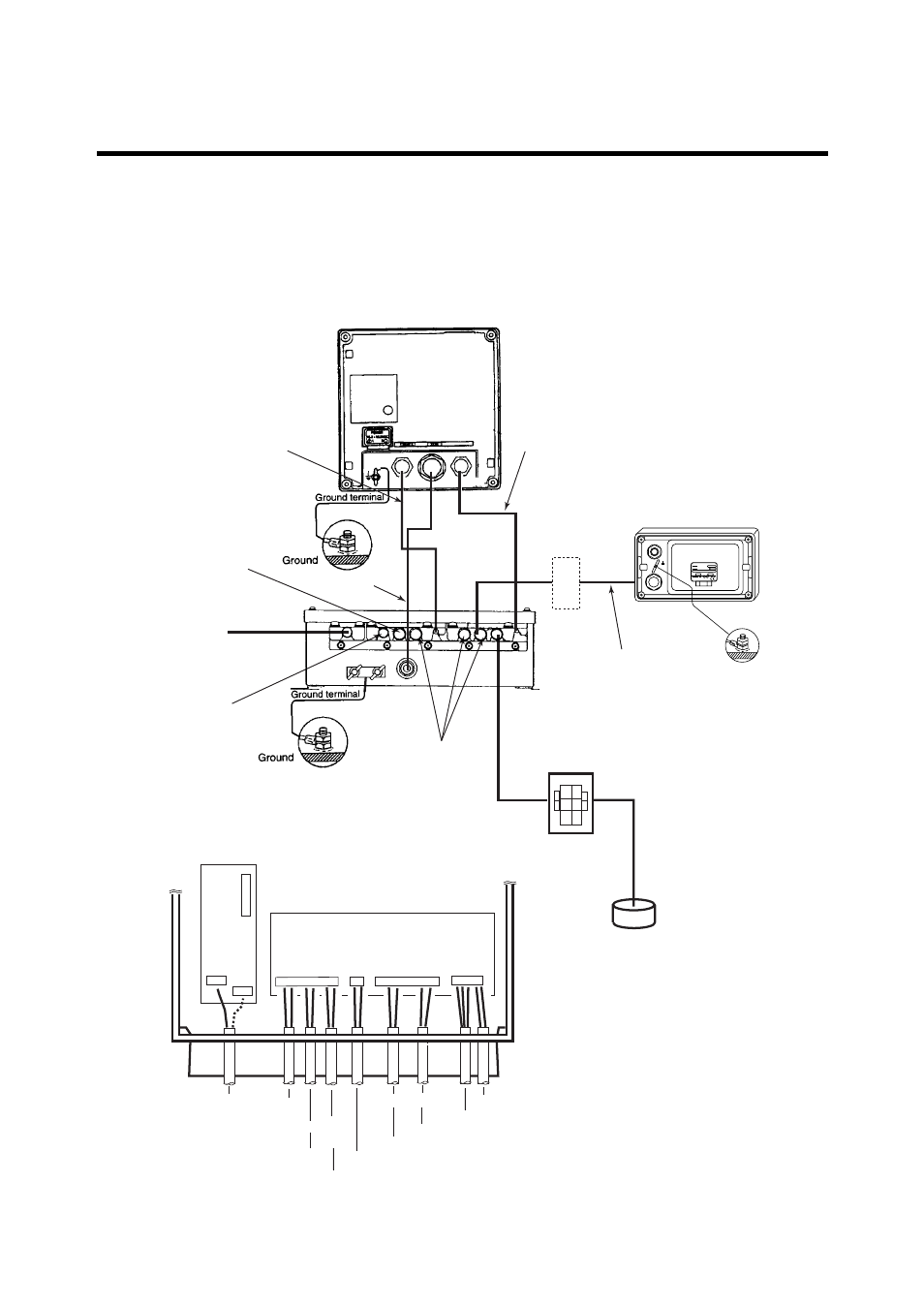

Connect three cable assemblies (supplied) between the display unit and distribution box. See
the interconnection diagram for details.
Ship's
mains
Navigation
Device
(IEC 61162-1)
Alarm system
Personal computer
(EIA-232C)
Ground
Digital depth indicator FE-720 (option)
*1
*1 *2
*1: with power
*2: without power
Display unit FE-701 (rear panel)
Distribution box FE-702
When silencing the alarm beep, connect
to *2 connector.
1a
2a
3a
1T
2T
3T
TB1 TB2
2RNCT-SB
2CX1.5
Transducer
Matching box
1.25 sq
DPYCYS-1.5
2.0 sq
2.0 sq
CONE board 02P6283
12345678910 12345678910 12 12345
TB1 TB2 TB3 TB4
123
123
AC
TB5 DC
TB6
TB7
FE-702 Top view
Cable clamp
Ship's
Main
Terminal
Box
TTYCYS-4
DPYCYS-2.5
MJ-A3SPF0015-100C
MJ-A7SPF0009-020C
02S4169
DPYCYS-2.5
FE-720 FE-720
Power
Sours
for FE-701
IEC
61162-1
PC
Alarm
System
TTYCYS-4
TTYCYS-4
TPYCYS-1.5
TTYCYS-4
POWER
DATA XDR
MJ-A10SPF0002-100
FM-C6FPS002-100
