Page 28
28
TRACTOR - - MODEL NO. 2348LS (96043007700), PRODUCT NO. 960 43 00-77

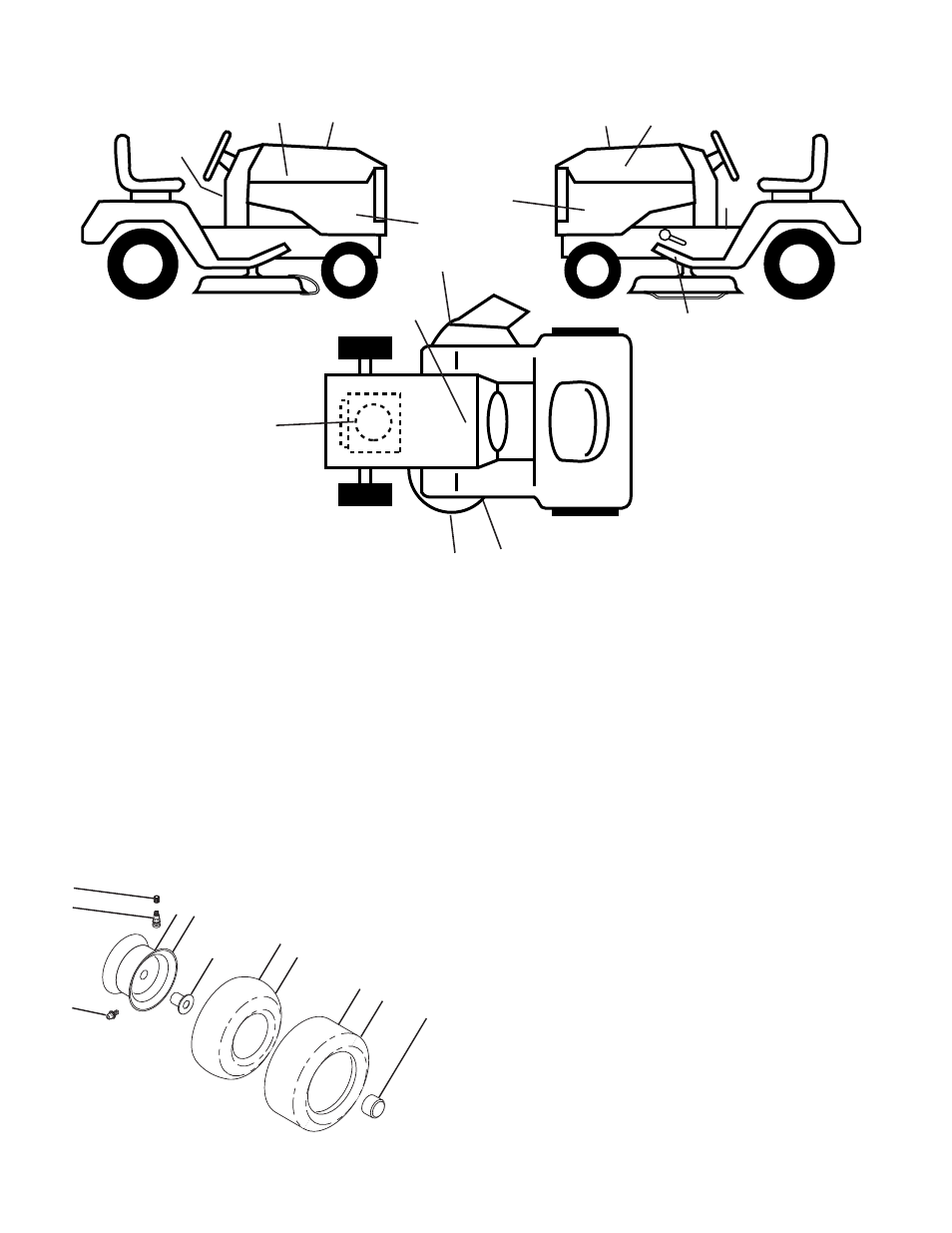

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO.
NO.
DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO.
DESCRIPTION
KEY PART
NO. NO.
DESCRIPTION
1
532 05 91-92 Cap, Valve, Tire
2
532 06 51-39 Stem, Valve
3
532 13 83-36 Rim Assembly, Front
4
532 05 99-04 Tube, Front (Ser vice Item Only)
5
532 17 04-55 Tire, Front
6
532 12 49-57 Fitting, Grease (Front Wheel Only)
7
532 12 49-59 Bearing, Flange (Front Wheel Only)
8
532 17 50-39 Cap, Axle (Front Wheel Only)
9
532 17 04-56 Tire, Rear
10
532 12 49-26 Tube, Rear (Service Item Only)
11 532 13 83-37 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1
532 41 16-58 Decal, Warning
3
532 42 41-02 Decal, Warning Spark Arrestor
5
532 41 82-77 Decal, Air Induction
6
532 41 84-95 Decal, Eng. HP
7
532 41 86-00 Decal, Pedal
8
532 19 87-85 Decal, Mower Sch.
9
532 14 50-05 Decal, Battery Dnge/Poi
10
532 17 05-63 Decal, Warning
14
532 41 82-13 Decal, Panel Side
15
532 42 38-29 Decal, Cust. Resp.
16
532 42 47-89 Decal, Hood Emblem
17
532 42 55-33 Decal, Replacement
- -
532 16 69-60 Decal, Bypass
- -
532 41 08-05 Pad, Footrest, LH
- -
532 41 08-06 Pad, Footrest, RH
17
16
10
16
14
1
14
9
6
15
3
7
8
5
