Tribute Model 8040
13
Chimney Cap
Extended Roof
Support Bracket
(Conduit
not included)
Storm Collar
Adjustable Roof
Flashing
Twist-Lock
Chimney Sections
Attic Insulation Shield
Firestop Radiation
Shield
Firesafe Enclosure

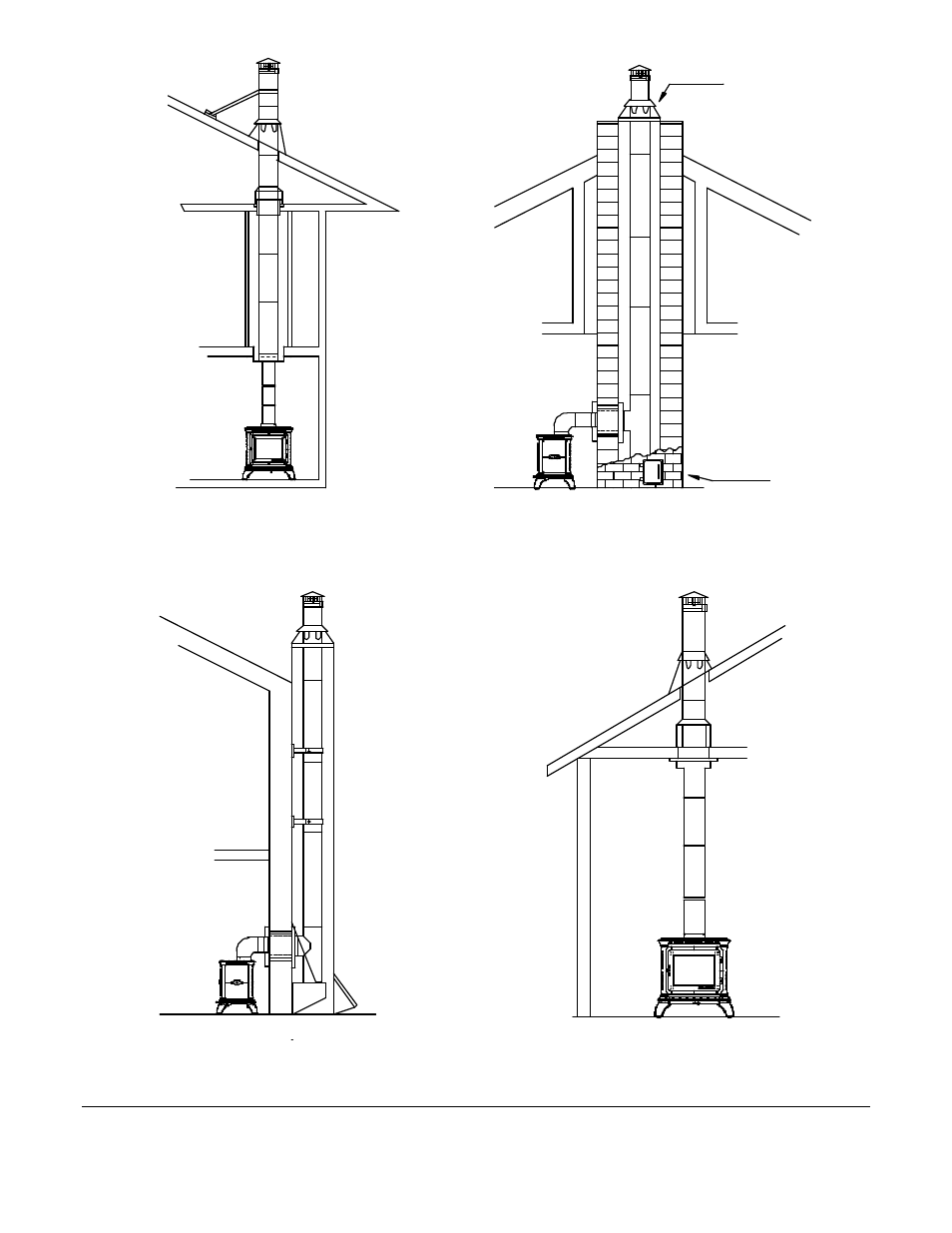

Two story house installation with attic.
Stovepipe
Support Box and Trim
Collar with built-in
Starter section
Chimney through outer wall with enclosed chase.
One story house installation with attic.
Chimney Cap
Storm Collar
Flashing
Chimney Sections
Chase Enclosure
Wall Strap
Support Box
with built-in
Starter
Adjustable Roof
Tee clean-out
Access door
Tee Support Bracket
Chimney is supported by Tee Support Bracket.
Chimney is supported by Ceiling.
Chimney Cap
Storm Collar
Flashing
Adjustable Roof
section
Insullation
Shield
Stovepipe
Chimney pipe through Clay tile
Chimney Cap
Storm Collar
Flashing
Masonry Chimney
Adjustable Roof
Wall Thimble
Tee clean-out
Access door
or other Lined Masonry Chimney
Clay tile or
other Liner
Wall Thimble
Tee
Tee
