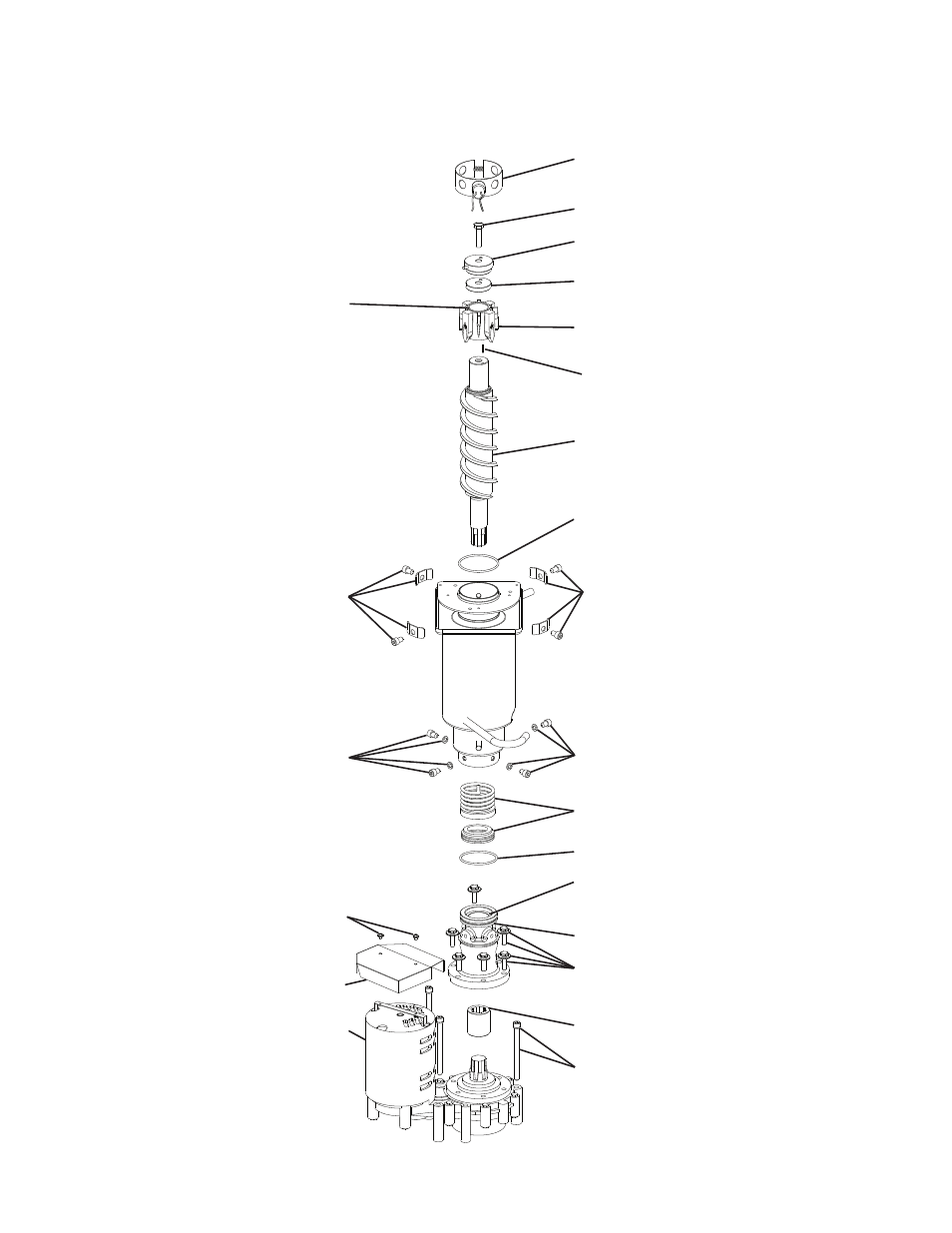

Evaporator Assembly

Evaporator Heater

Cutter

Cutter Hex Head Bolt

Extruding Head

Auger

O Ring

Seal Bolts and Washers

Socket Head Cap Screw and Split
Lock Washer

Gear Motor

Gear Motor Barrier

Lower Housing

O Ring

Mechanical Seal

Spline Coupling

Hex Bolt and Washer

Socket Head Cap Screw and Split
Lock Washer

Washer

Socket Head Cap Screw and Split
Lock Washer

Upper Bearing
(pressed into auger)

Lower Bearing
(pressed into lower housing)

Truss Head Screw
w/Rubber Washer

Fig. 7

Dowel Pin

Seal Bolts and Washers
