Installation and adjustment
Please install and adjust the machine according to the requirement of the manual.
It is very important to your security and correct operating the machine.

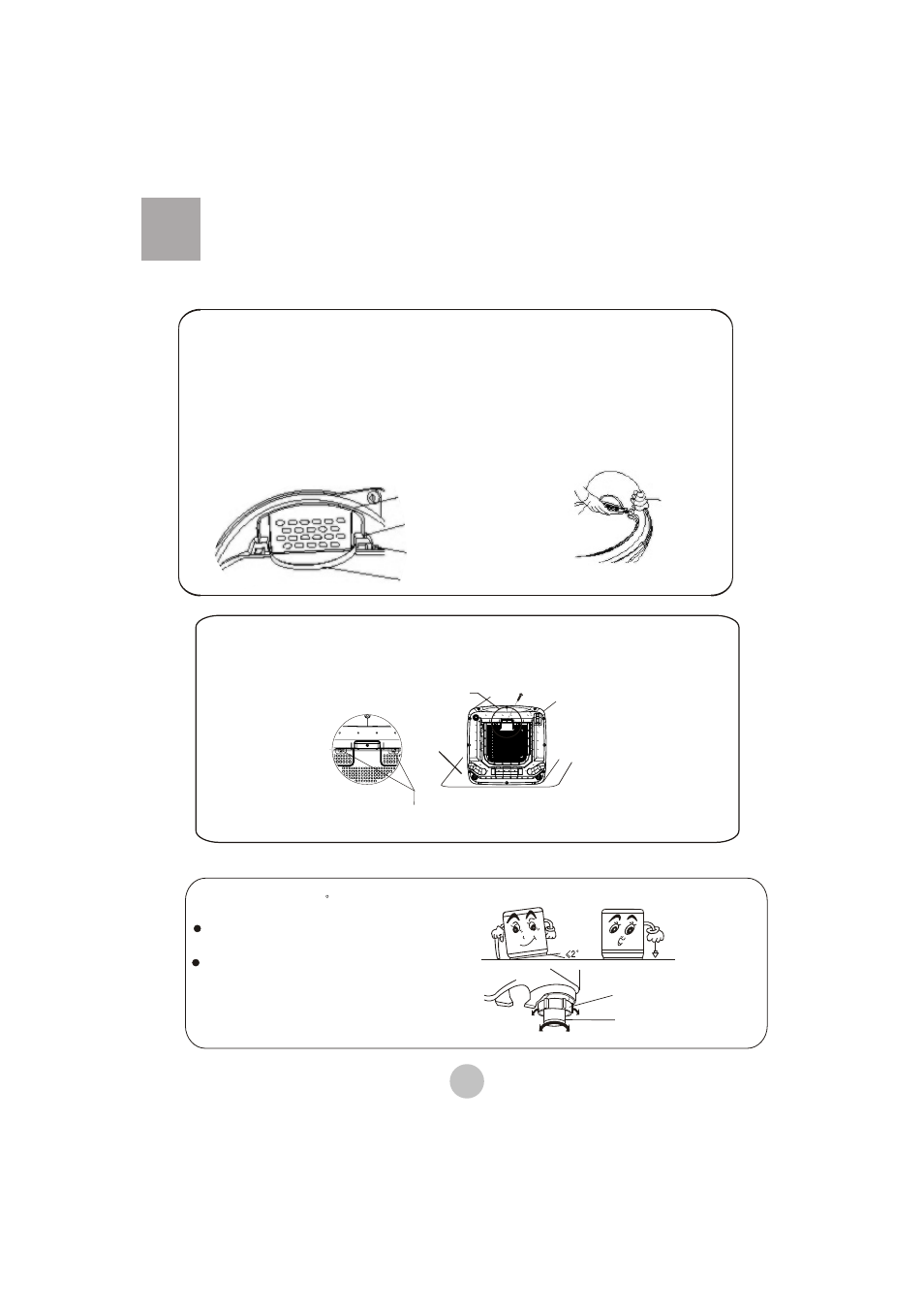

Install the inner cover component
1.Open the top lid of the washing machine.
2.Put the inner cover component on the outer tub cover, aiming the inner cover shaft to the installation
hole of the corresponding outer tub cover shaft groove.
3.Firstly insert the inner cover shaft of the left side into the corresponding outer tub cover shaft groove(see
to the figure 1), then hold the middle position of the front of the outer tub cover with left hand forcibly ,
handhold the right and below position of the inner cover with right hand, push the inner cover to the
outer cover vertically, make the inner cover shaft into the corresponding outer tub cover shaft groove(see
to the figure 2). Please install to designated position to guarantee there are no dropping or abnormal
sound in opening and closing of the inner cover, and the operation shall be smooth. Do not dismount the
inner cover component after washing.
Outer tub cover
Outer tub cover shaft groove
Inner cover shaft
Inner cover component
Figure 1
Right hand
Left hand
Figure 2
Before using the washing machine firstly, please install the inner cover component.
I
After opening the package, please lean the washing machine gently down on
soft items (like towel cloth,blanket, etc.). Install the bottom plate to the bottom
of the machine with one screw by a cross screwdriver, then lift the machine up
gently. See to the figure:
I enlarge
Carpet
Front
Back
The two claws of bottom plate should
insert the two strip holes ,and insure
Adjust the Installation position
The washing machine away from wall should be overrun 20mm. The largest allowable slope of the shank
base of the machine is 2
.The slanting or rough ground will result in unstable running or stoppage of the
machine. Please adjust it with following methods:
Confirm it's horizontal:
Hang the lead line to check if it is horizontal.
Adjust the adjustable leg:
Fasten Loosen
High Low
the adjustable nut
the adjustable feet
1 .To twist the adjustable leg, please first lift up the side of the
leg slightly, loosen the adjustable nut, and twist the leg.
2 . After adjustment, fasten the nut.
