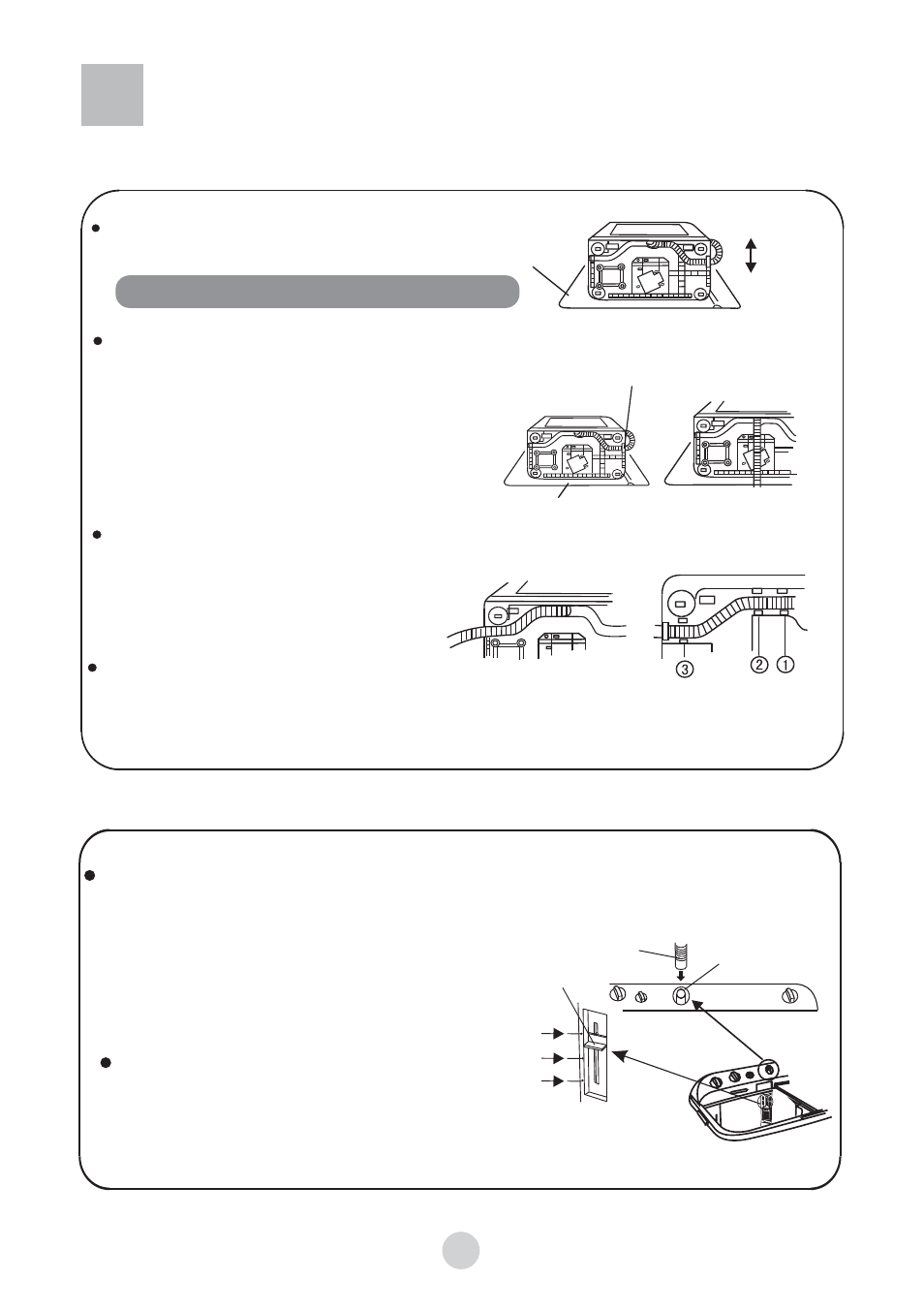

How to change the direction of the drain hoses
Install the water inlet hose; Select the water level
Select water level according to the
quantity of the laundries.
Set the water level adjusting lever
to needed line.
Figure 1 indicates the ex factory installation
position of the drain hose.
Put soft items on the ground. Lean the machine
down gently with the front surface facing the
ground. Take off the drain hose from the cabinet.
Dismantle the drain hose fixing clamp and take
the hose out of the fixing groove.
(See to Figure 2).
Embed the drain hose into the groove along the side
of the spin tub in the order of (1)~(3), heading for the
side of the spin tub. (See to Figure 3).
Embed the drain hose into the groove with
hands. Take care not to damage the drain
hose in fastening the fixing clamp.
Figure 1
Figure 2
Figure 3
Embed into the
groove in turn
Back
Extend the drain hose from the side of spin tub
Soft item
Soft item
Extend to the
spin tub side
Front
Drain hose fixing clamp
Maximum
Max
Minimum
Min
Medium
Med
Water inlet hose
Water-filling
entrance Water level
adjusting lever
5
Insert the water inlet hose into the water-filling
entrance on the control panel directly. (pull it
out to dismantle it)
