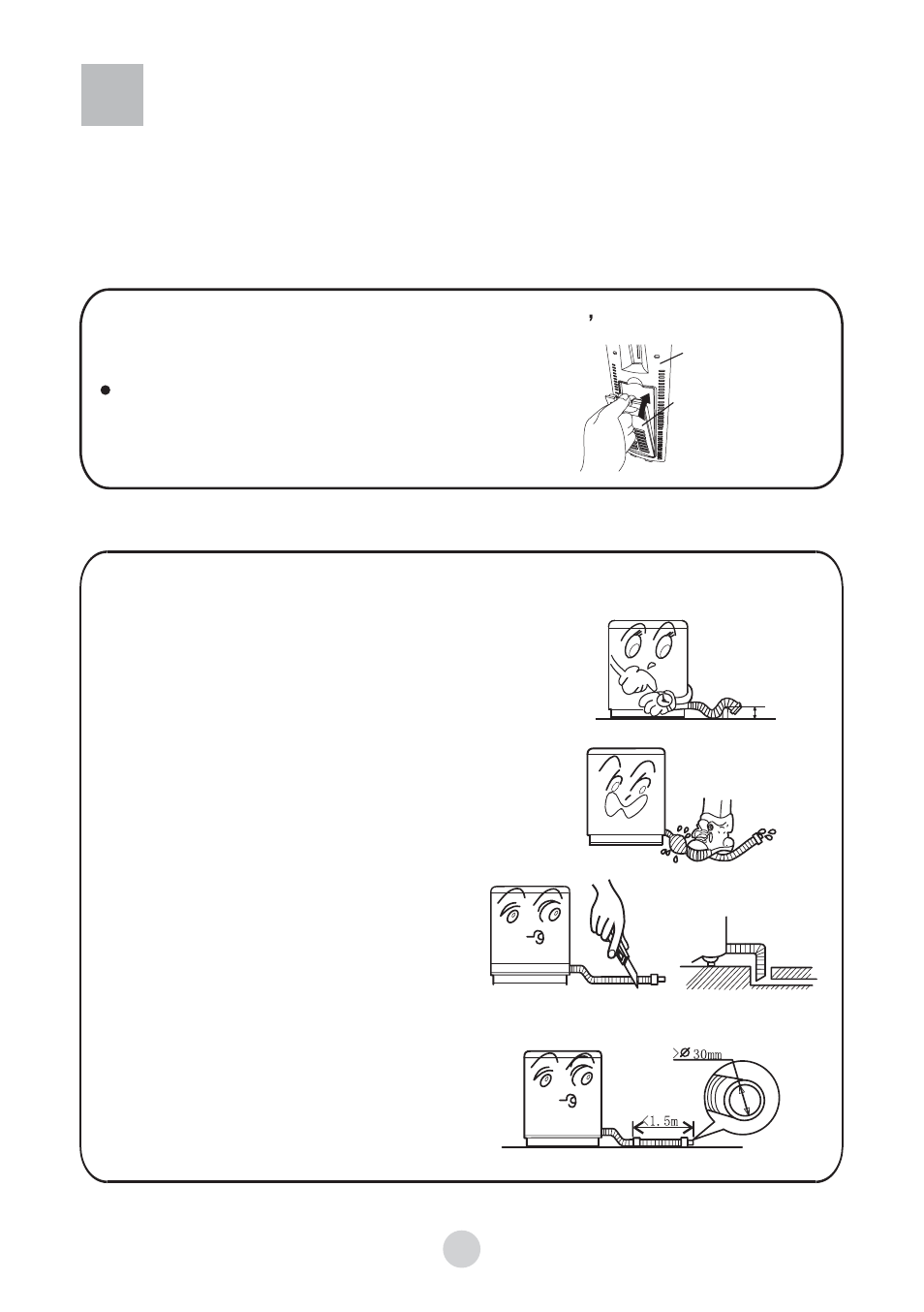

Put the underside of the lint filter into overflow filter
then push the upside into overflow filter
After installation, please refer that the lint filter
installed to the right station, otherwise the lint
filter may be fallen off when washing, influencing
your use.
overflow filter
lint filter
Installation and adjustment
Please install and adjust the machine according to the requirement of
the manual. It is very important to your security and correct operating
the machine.
Install the lint filter
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.The height of the drain hose shall
be less than 10cm. or the drainage
will not be smooth enough and cause
incomplete drainage.
3.If the drain hose is too long, cut
it at mid point. To make smooth
drainage, cut the front end of
the hose slantingly.
2.Do not step on or press the drain hose.
4.IF extra drain hose is needed,
please make separate purchase.
The inner diameter of the extra
hose shall be not less than
30mm, and the length shall
be not exceed 1.5m.
<10cm
4
