Husqvarna YTH2242 TF - Manual (Page 39)

39
TRACTOR - MODEL NO. YTH2242 TF (96041022400), PRODUCT NO. 960 41 02-24

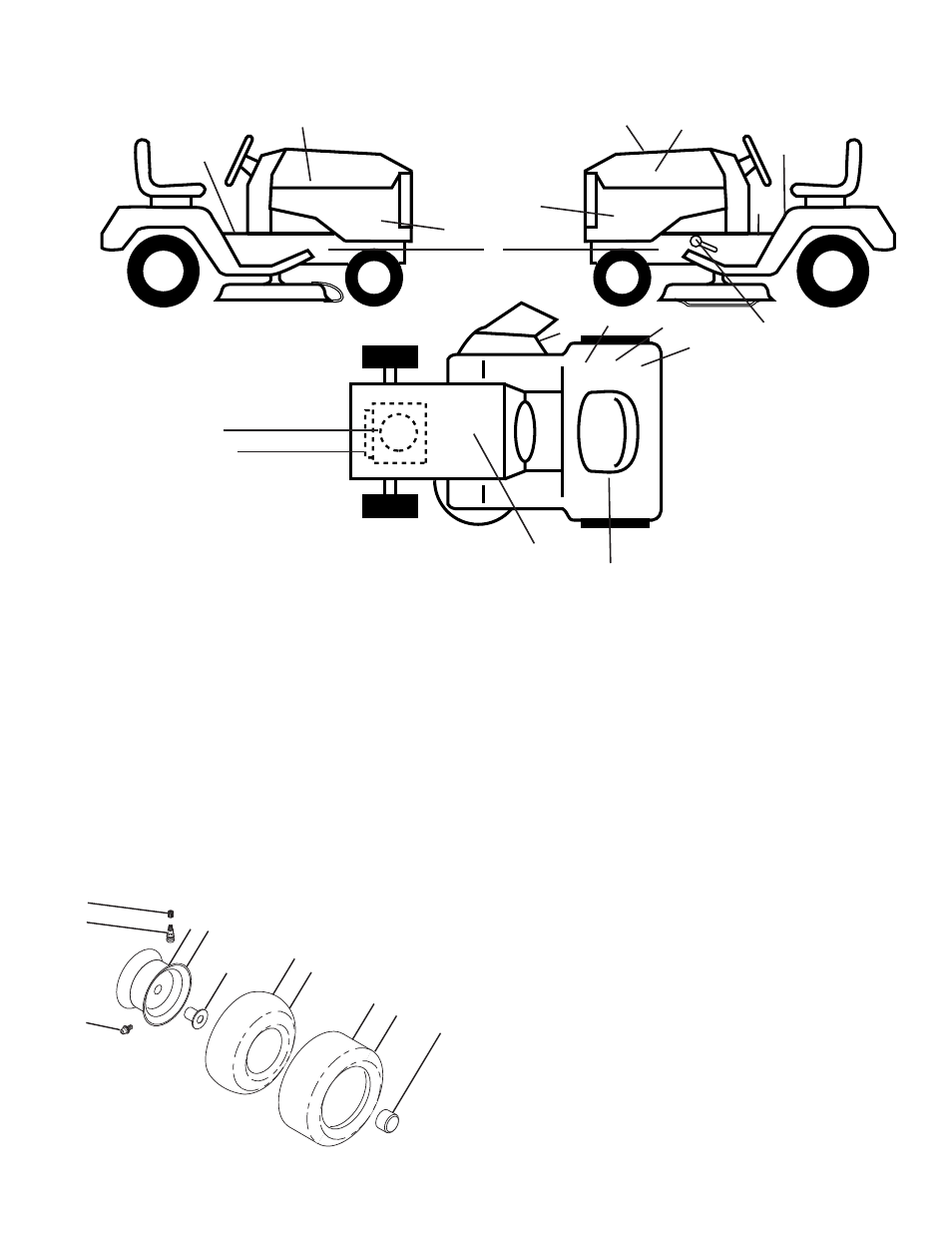

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3 11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 14 45-09 Rim Assembly, Front
4 532 00 81-34 Tube, Front (Ser vice Item Only)
5 532 10 62-30 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle
9 532 12 20-82 Tire, Rear
10 532 12 49-26 Tube, Rear (Service Item Only)
11 532 13 83-37 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 14 08-37 Decal, Saddle
2 532 14 50-05 Decal, Battery
3 532 40 03-89 Decal, Warn. Sym.
4 532 15 97-36 Decal, Chassis Hot
5 532 43 29-14 Decal, Engine HP
6 532 16 88-69 Decal, Tick Mark
7 532 12 44-33 Decal, DBA
8 532 41 86-00 Decal, Pedal
9 532 17 83-02 Decal, Oper. Cruise
10 532 43 37-72 Decal, Replacement
11 532 15 97-37 Decal, Brake/Clutch
12 532 42 62-09 Decal, Warning Reserve Fuel
13 532 19 68-41 Decal, Engine
14 532 44 15-73 Decal, Panel Side
16 532 42 91-96 Decal, Hood Logo Badge
- - 532 16 25-98 Decal, Drawbar
- - 532 16 69-60 Decal, Bypass
- - 532 40 17-71 Pad, Footrest, LH
- - 532 40 37-73 Pad, Footrest, RH
- - 532 44 15-91 Manual, Owner's (English)
16 16
14
12
5
13
1
14
8 8
11
10
3
4
7
6
9
2
