SETTING FOR WALL MOUNTING

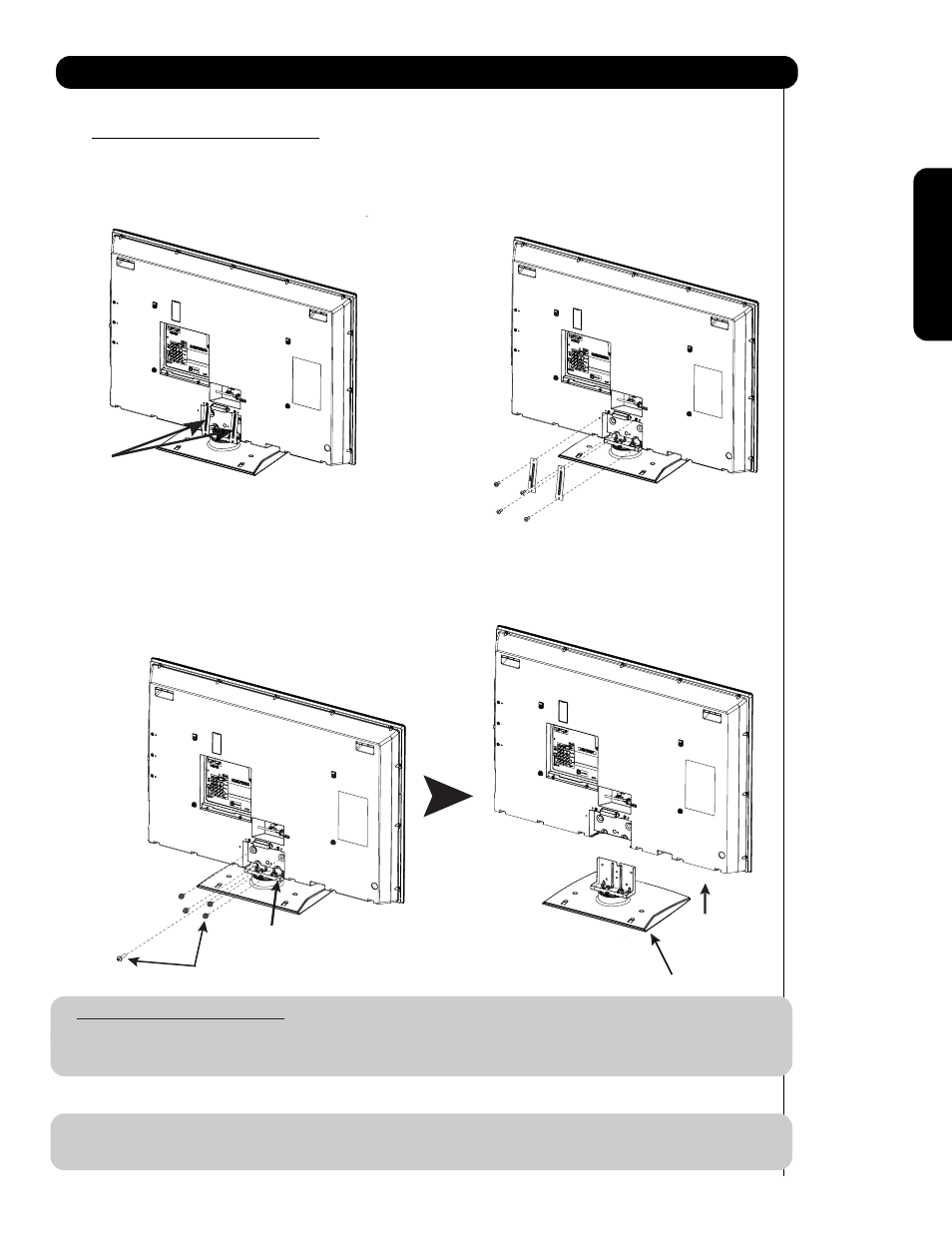

STEP (1) :
Please locate the STAND METAL SUPPORTS on the back of the TV . These metals is use to hold the TV and the Base ;
so it needs to remove 4 screws from the STAND METAL in order to separate the TV from the Base.

2 STAND METAL

STEP (2):
Now please remove the 5 screws of the STAND metal from the TV, now the TV STAND can be separated from the
TV. For dimensions of the WALL MOUNT assembly please refer to page 62.

STAND METAL

5 SCREWS

TV STAND BASE

NOTE:

Use the specified WALL MOUNT unit for the LCD TV depending on the size of your TV.

Please access our web site at: www.hitachi.us/tv (US) or www.hitachi.ca/tv (CAN) for

CAUTION- This LCD Flat Panel for use only with Hitachi WM07S Wall Mount. Use with other

Wall Mount is capable of resulting in instability causing possible injury.

For Model L47S601 & L42S601

First

time

use

SUPPORTS

Remove 4 screws

then remove the 2 metal

supports.
