REMOTE CONTROL sensor
Point your remote at this area when selecting
channels, adjusting volume, etc.
INPUT- FRONT JACKS
INPUT- FRONT provide composite Video jacks for
connecting equipment with this capability,
such as a DVD player or Camcorders.
Side Panel Controls
POWER light indicator
To turn the TV ON, press the power button
located on the right side of the TV set.
A red stand-by indicator lamp located on
the lower right corner of the front bezel
is illuminated. The LCD TV is now ready for
remote ON/OFF operation.
NOTES: 1. Your HITACHI LCD TV will appear to be turned OFF (lights orange) if there is no video input
when INPUT : 1, 2, 3, Front and HDMI 1, 2 , Front. Check the Power Light to make sure the TV
is turned off or in Stand-by mode (lights red) when not in use.
2. Remote Control can not turn ON/OFF the “MAIN POWER” of the TV.

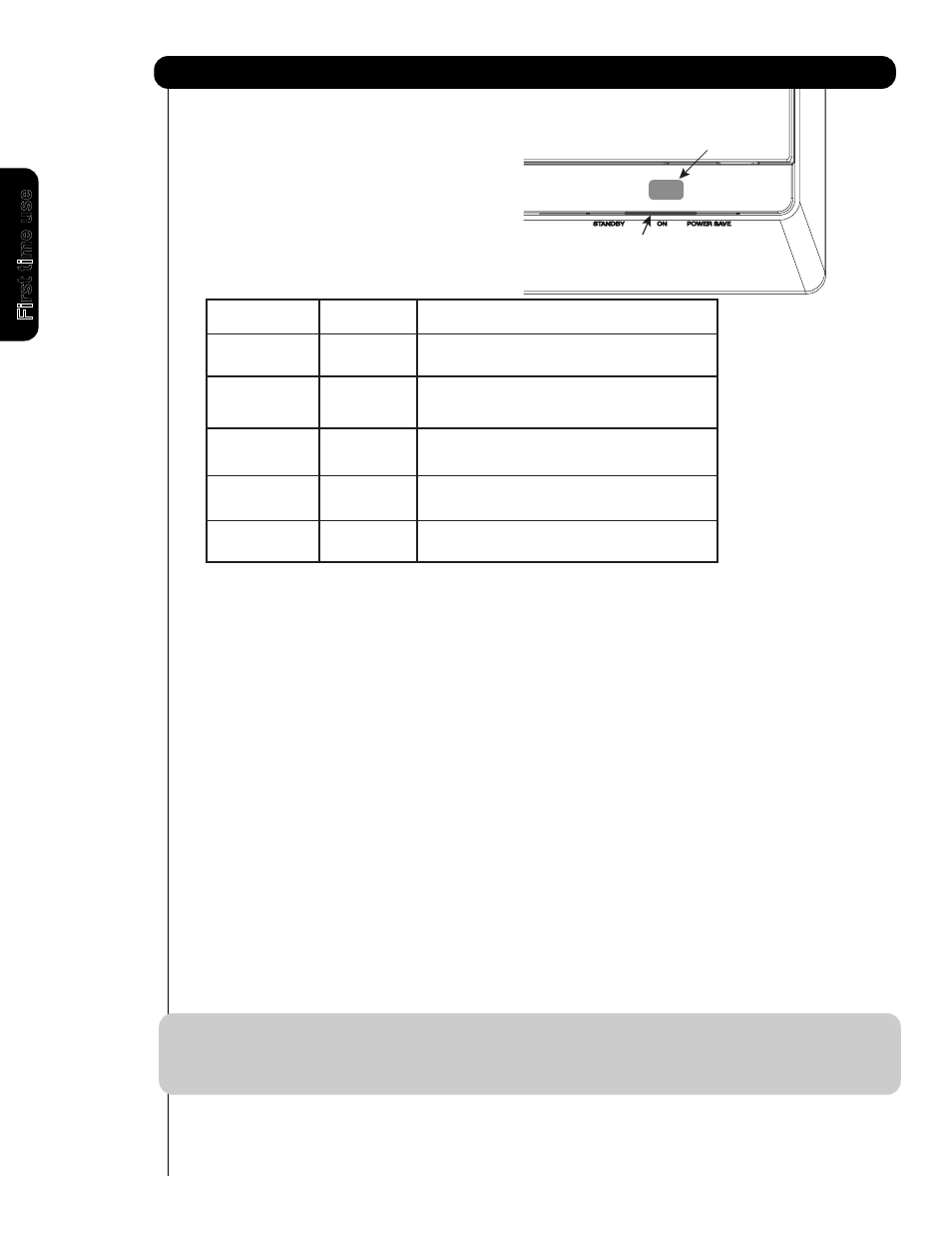

Indicating Lamp
R/C sensor
ቫ
ቪ
Indicating Lamp Power Status Operating
OFF. When the TV set is unplugged from AC line.
When the TV set is plugged to the AC line.
(Stand-by)
On
TV POWER is ON with no signal input
(Power Saving) except antenna (no sync. signal).
Off
Lights
Red
OFF.
Lights
Blue
TV POWER is ON ; picture is shown.
Lights
Orange
Off
Blinking
Blue
On When TV receives the IR signal from R/C.
