Figure 5 proper wire preparation and insertion, Strip ¹-inch of insulation, Figure 6 wiring and assembling the digital gateway – Hach 6120118 User Manual
Page 12: Digital gateway front, O-ring, Sensor wire connector, Digital gateway back, Cable bushing, Anti-rotation washer, Cord grip
12
Installation

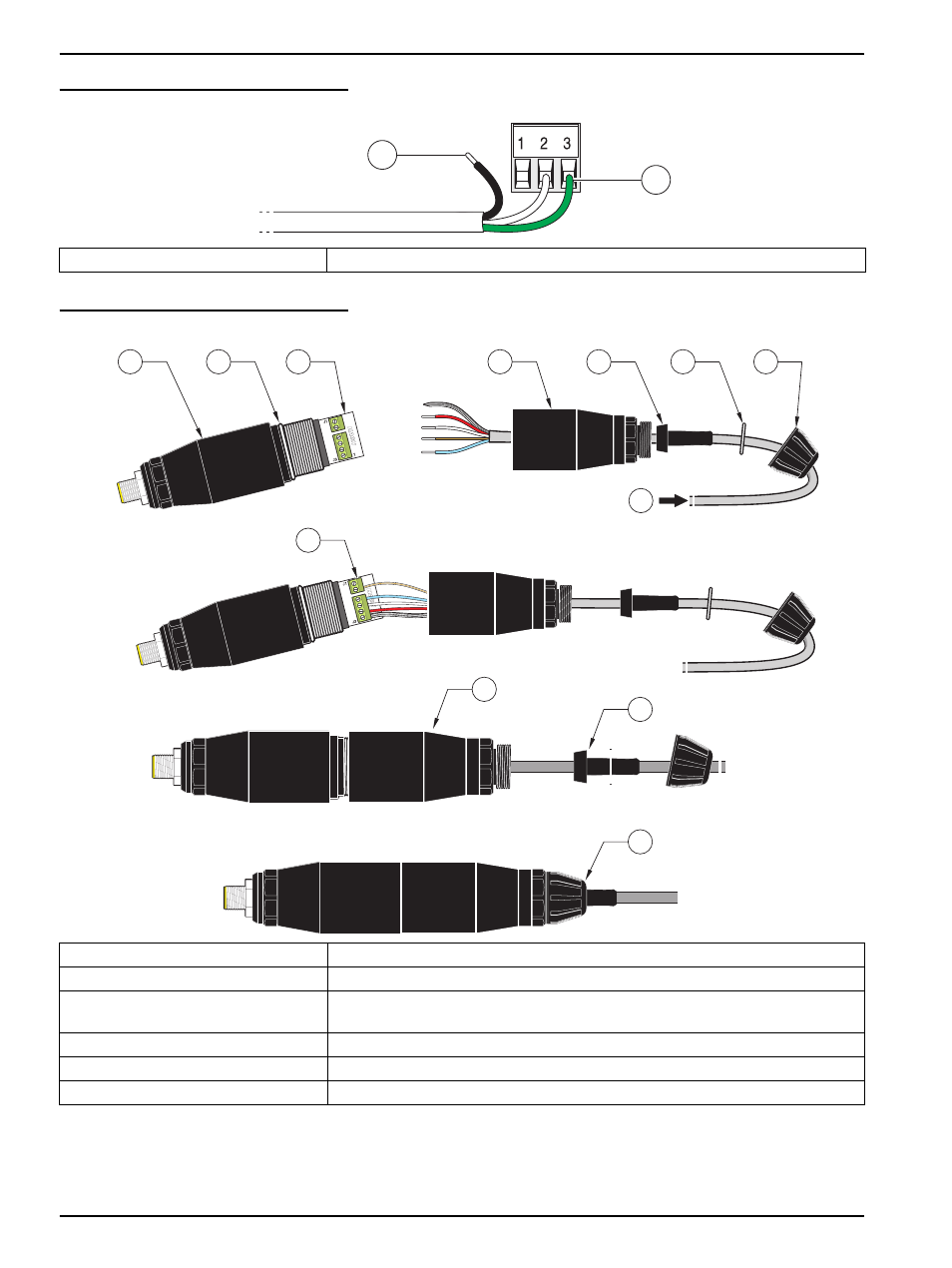

Figure 5
Proper Wire Preparation and Insertion
Figure 6
Wiring and Assembling the Digital Gateway
1.
Strip ¼-inch of insulation.
2.
Seat insulation against connector with no bare wire exposed.
1.
Digital gateway front
7.
Cord grip
2.
O-ring
8.
From sensor
3.
Sensor wire connector
9.
Insert wires into connector according to
. Use the included 2 mm
screwdriver (Cat. No. 6134300) to secure connections.
4.
Digital gateway back
10. Screw back of digital gateway onto front.
5.
Cable bushing
11. Push cable bushing and anti-rotation washer into back.
6.
Anti-rotation washer
12. Fasten cord grip securely. Assembly is complete.
1
2
METAL BRAID
RED
WHT
BLU
CLEAR
1
6
5
4
3
2
9
10
11
12
7
8
