C15

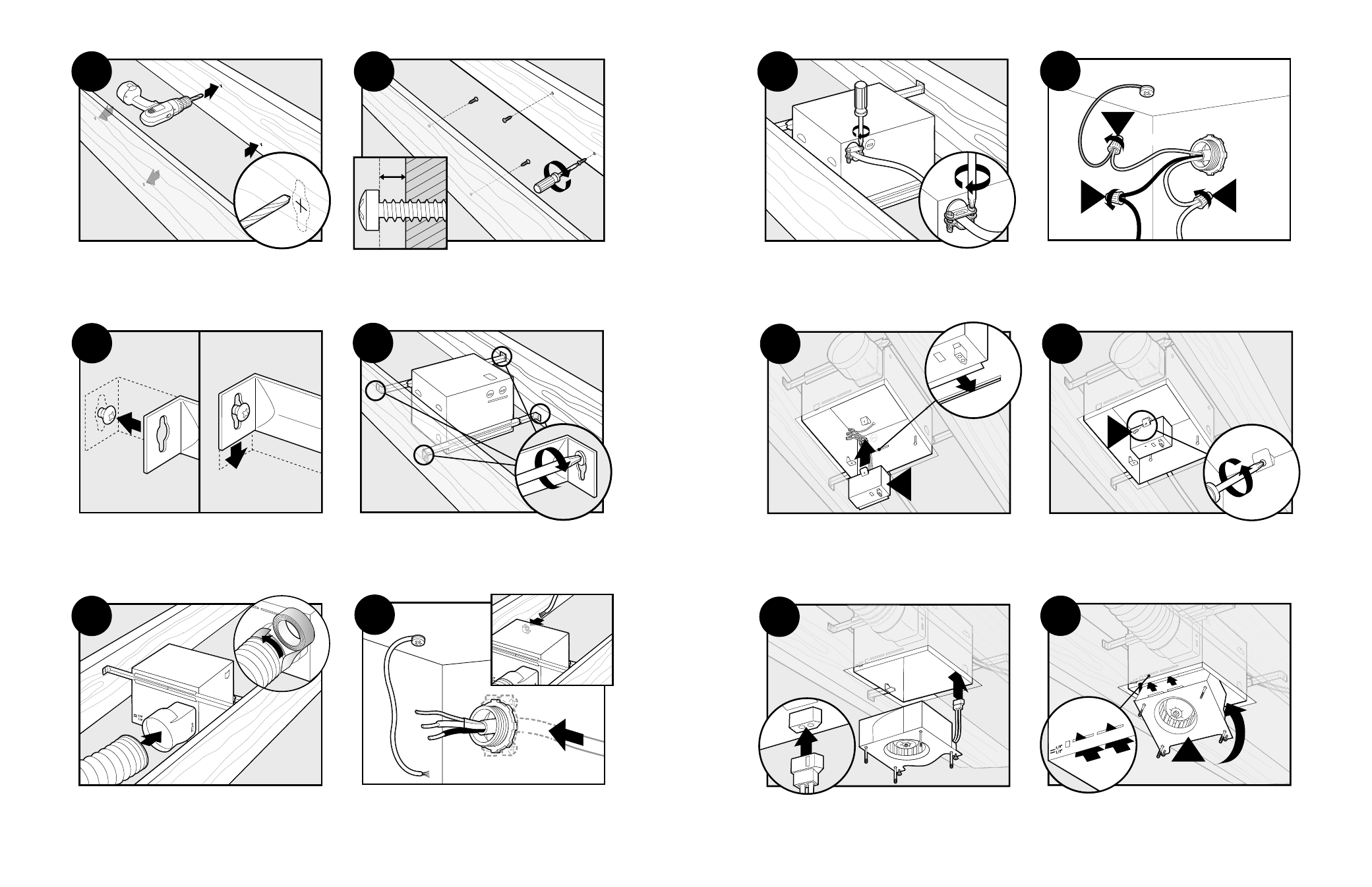

Drill a hole in the center of each outline.
C16
Insert screws, leaving space between the screw head
and the joist. Screws are not provided.
C17
Attach the rails onto the screws.
C18
Tighten screws.
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may
need to be purchased.
C19
Pull wires through the strain relief.
12
13
C20
C21
Tighten the strain relief screws. Connect wires as shown.
C23
F
1
2
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
A
A A
Green
Black White
Bare Copper
Ground
C22
B
D
•
C24
G
Tighten the wiring cover plate screw.
C25
Connect wiring from the motor to the wiring cover plate.
C26
H
Reinstall the motor by inserting the tabs and pushing up
into position. Make sure the wires are not pinched
between the motor and the housing.
