ASSEMBLY
10 – English

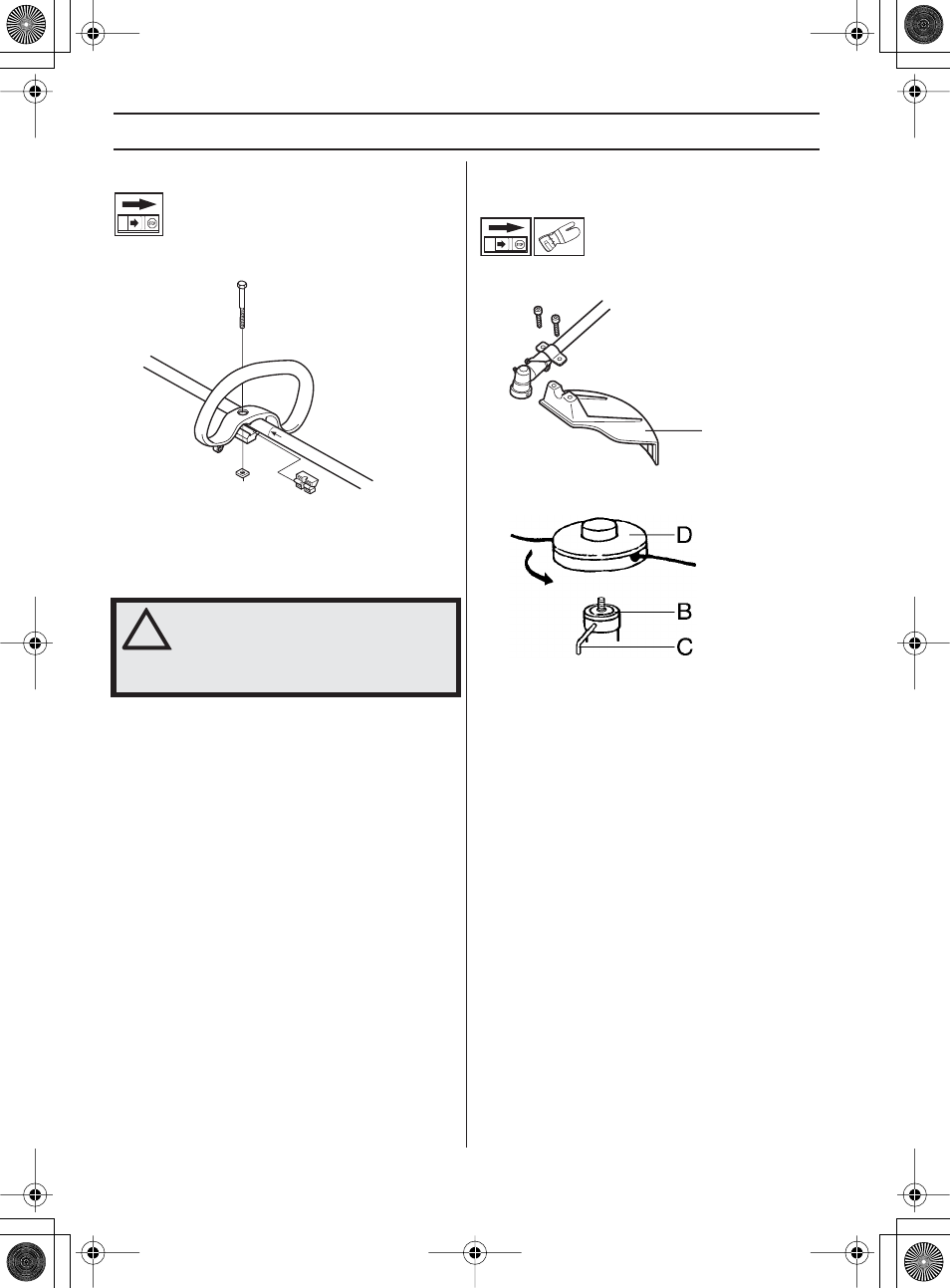

Fitting the loop handle
•
Position the handle on the shaft. Note that the handle
must be mounted below the arrow on the shaft.
•
Slide the spacer into the slot in the loop handle. Fit the
nut and screw. Tighten.
Assembling the cutting
equipment
Fitting the trimmer guard and
trimmer head
•
Fit the correct trimmer guard (A) for use with the
trimmer head.
•
Tighten the two screws.
•
Fit the drive disc (B) on the output shaft.
•
Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
•
Insert the locking pin (C) in the hole to lock the shaft.
•
Screw on the trimmer head (D) in the opposite
direction to the direction of rotation.
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
A
