9

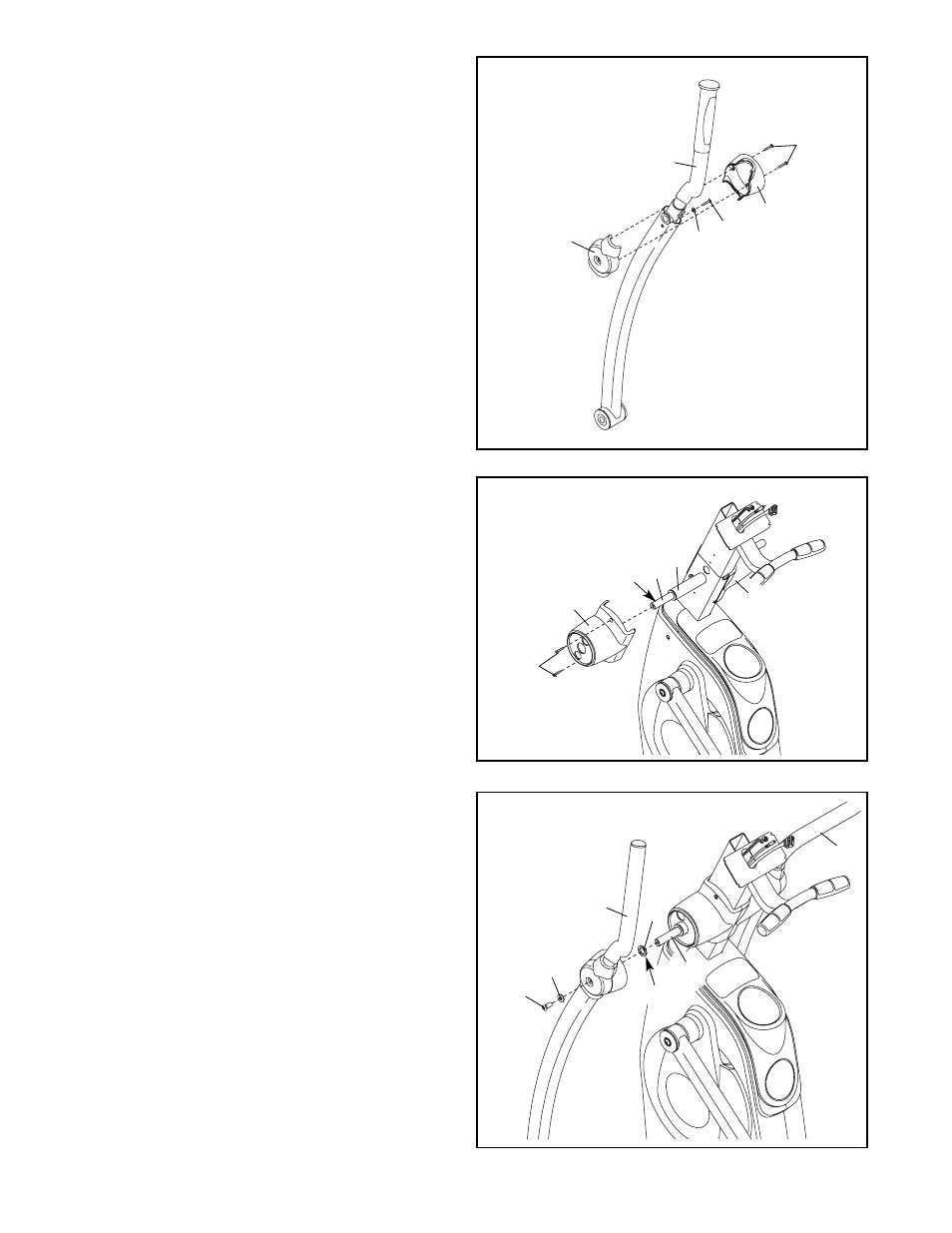

8. Attach Inner and Outer Handlebar Covers (18,
19) around the Left Handlebar (8) with three M4
x 16mm Self-tapping Screws (79) and an M4 x
13mm Washer (93). Start all three Self-tapping
Screws before tightening any of them.
Repeat this step for the Right Handlebar (not
shown).
8
79
79
93 19
8
18
9. Apply a generous amount of grease to the
Pivot Axle (65), and insert the Pivot Axle into the
Frame (2).
Attach each Frame Cover (17) to the Frame (2)
with two M4 x 16mm Screws (86).
9
Grease 65
17
86
10. Apply a small amount of grease to both sides of
a Wave Washer (98). Slide the Wave Washer
onto the left end of the Pivot Axle (65). Next,
slide the Left Handlebar (8) onto the Pivot Axle
as shown. Attach the Left Handlebar with an
M10 x 23mm Shoulder Screw (80) and an
M10 x 20mm x 1mm Washer (81).
Repeat this step for the Right Handlebar (9).
10
98
8
9
80
81
2
65
17
Grease
