11

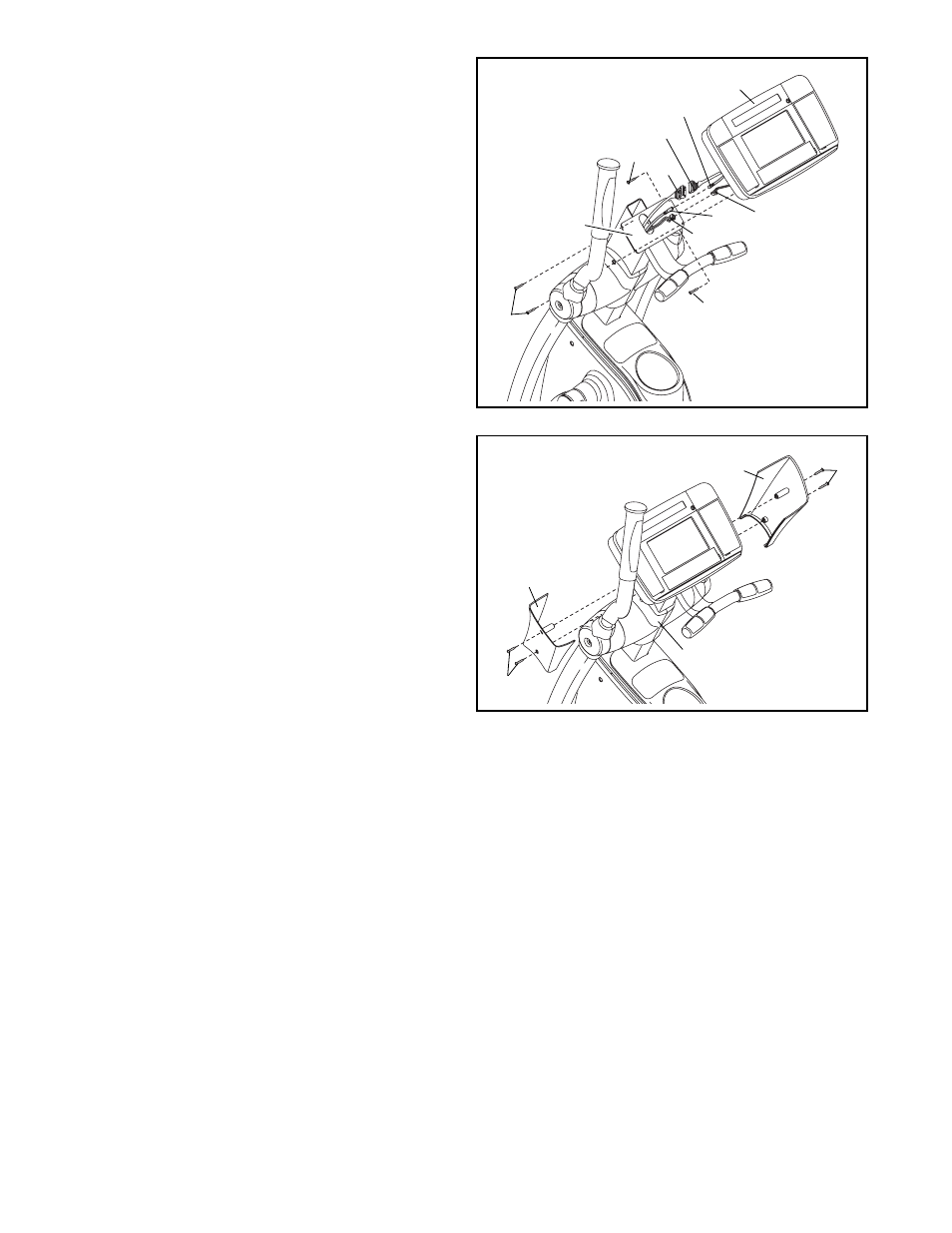

14. Have a second person hold the Console (5) near
the Upright (6) as shown. Connect the console
wire harness to the Wire Harness (48), connect
the console cable to the Coaxial Cable (109),
and connect the console pulse wire to the Pulse
Wire (110). Insert the excess wire and cable
downward into the Upright (6).
Attach the Console (5) to the Upright (6) with
four M4 x 16mm Self-tapping Screws (79).
Avoid pinching the wires and cables during
this step.
16. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
Plug the power cord into the power socket at the rear of the elliptical exerciser (see HOW TO PLUG IN THE
POWER CORD on page 13). IMPORTANT: If the elliptical exerciser has been exposed to cold tempera-
tures, allow it to warm to room temperature before plugging in the power cord. If you do not do this,
the console displays or other electronic components may become damaged.
14
5
79
48
Console Cable
Console
Pulse Wire
109
110
79
79
Console Wire Harness
15. Attach the Left and Right Upright Covers (10, 64)
to the Upright (6) with four M4 x 16mm
Screws (86).
10
86
86 64
15
Avoid pinching
the wires and
cable during
this step
6
6
