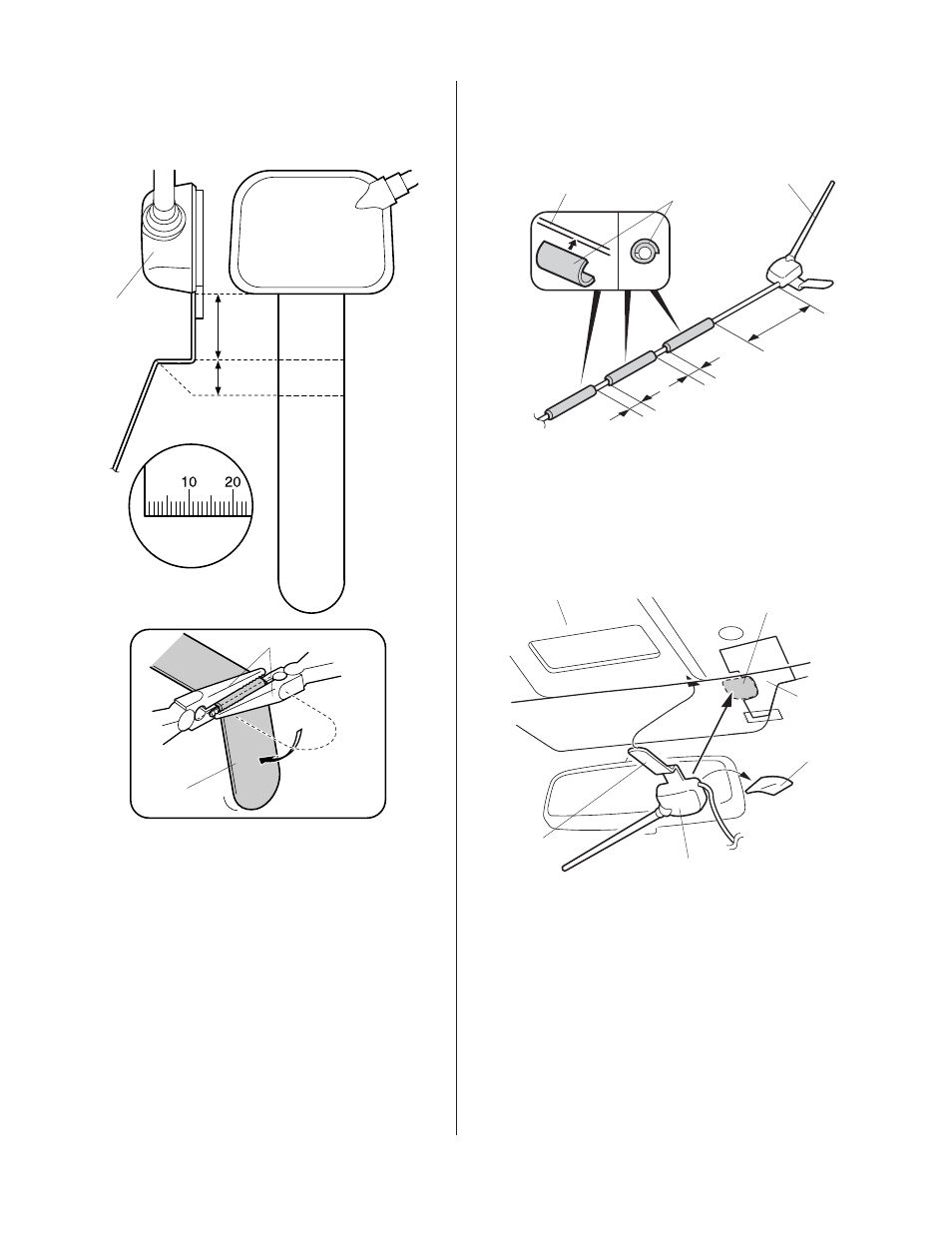

24. Measure the antenna cable as shown. Attach the

three foam cushion tapes to the antenna cable in
the measurement shown.

25. Using isopropyl alcohol on a shop towel, clean the

area where the antenna will attach. Allow to dry
before proceeding.

26. Remove the adhesive backing from the antenna,

insert the antenna plate under the roof liner, and
attach the antenna to the windshield aligning the
template.

27. Remove the template.

6D01240T

ANTENNA

CABLE

FOAM

CUSHION TAPE

ANTENNA

360 mm

(14 in.)

30 mm

(1.2 in.)

30 mm

(1.2 in.)

6D01250T

ROOF LINER

Clean with

isopropyl alcohol.

TEMPLATE

ADHESIVE

BACKING

ANTENNA

PLATE

23. Using two pairs of needle-nose pliers, bend the

antenna plate according to the illustration and
measurement shown.

6D01232T

SCALE

ANTENNA

8 mm

(0.3 in.)

PLATE

15 mm

(0.6 in.)

NEEDLE-NOSE PLIERS
