AII 38215-38958 (0802)

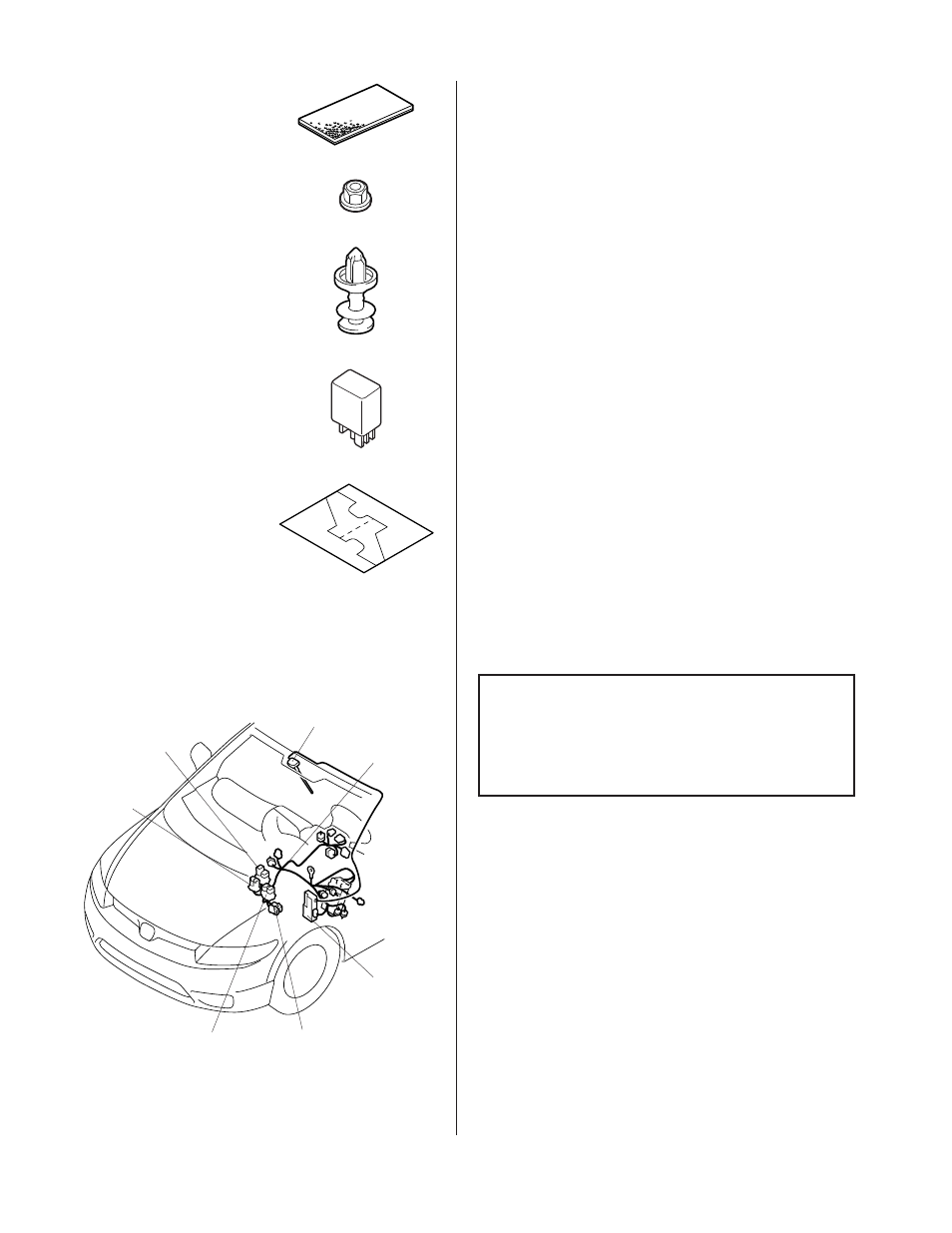

7 Foam cushion tapes

Flange nut

Clip

Green relay (5-pin)

Template

Illustration of the Engine Starter System Installed
on the Vehicle

7507010T

ENGINE

STARTER

HARNESS

ANTENNA

RELAY

(5-PIN)

2 FUSES 40 A

3 RELAYS

(4-PIN)

CONTROL

UNIT

2 FUSES 3 A

TOOLS AND SUPPLIES REQUIRED
Phillips screwdriver
Long blade flat-tip screwdriver
Small flat-tip screwdriver
6 mm Hex wrench
T25 Torx bit
3 mm and 7 mm Drill bit
File
Ratchet
10 mm Socket
Combination wrench
Isopropyl alcohol
Shop towel
Tape measure
Clip remover
Diagonal cutters
Felt-tip pen
Center punch
Scissors
2 Pairs of needle nose pliers
Rubber mallet
HDS (Honda Diagnostic System)
Masking tape
Safety goggles

INSTALLATION

Customer Information: The information in this
installation instruction is intended for use only by
skilled technicians who have the proper tools,
equipment, and training to correctly and safely add
equipment to your vehicle. These procedures
should not be attempted by “do-it-yourselfers.”

NOTE: The antenna should only be installed if the
ambient air temperature 15°C (60°F) or above.

Make sure you have the anti-theft code for the
radio, then write down the radio station presets.

Disconnect the negative cable from the battery.
