54. Install the clip from the engine starter harness to

the fuse box bracket behind the fuse box.

53. Unplug the white vehicle 14-pin connector at the

front lower pillar behind the fuse box, and plug the
engine starter harness 14-pin connectors into the
white 14-pin connector. Attach the engine starter
harness 14-pin connector to the vehicle 14-pin
connector.

55. Remove the ground bolt from the vehicle. Secure

the engine starter harness ground terminal with the
ground bolt you just removed.

52. Behind the fuse box, unplug the blue vehicle 23-

pin connector from the inside of the front lower
pillar, and plug the blue engine starter harness 23-
pin connectors into the blue vehicle 23-pin
connector. If the vehicle 23-pin connector is
difficult to disconnect, perform the work after first
disconnecting the connector on the upper side.

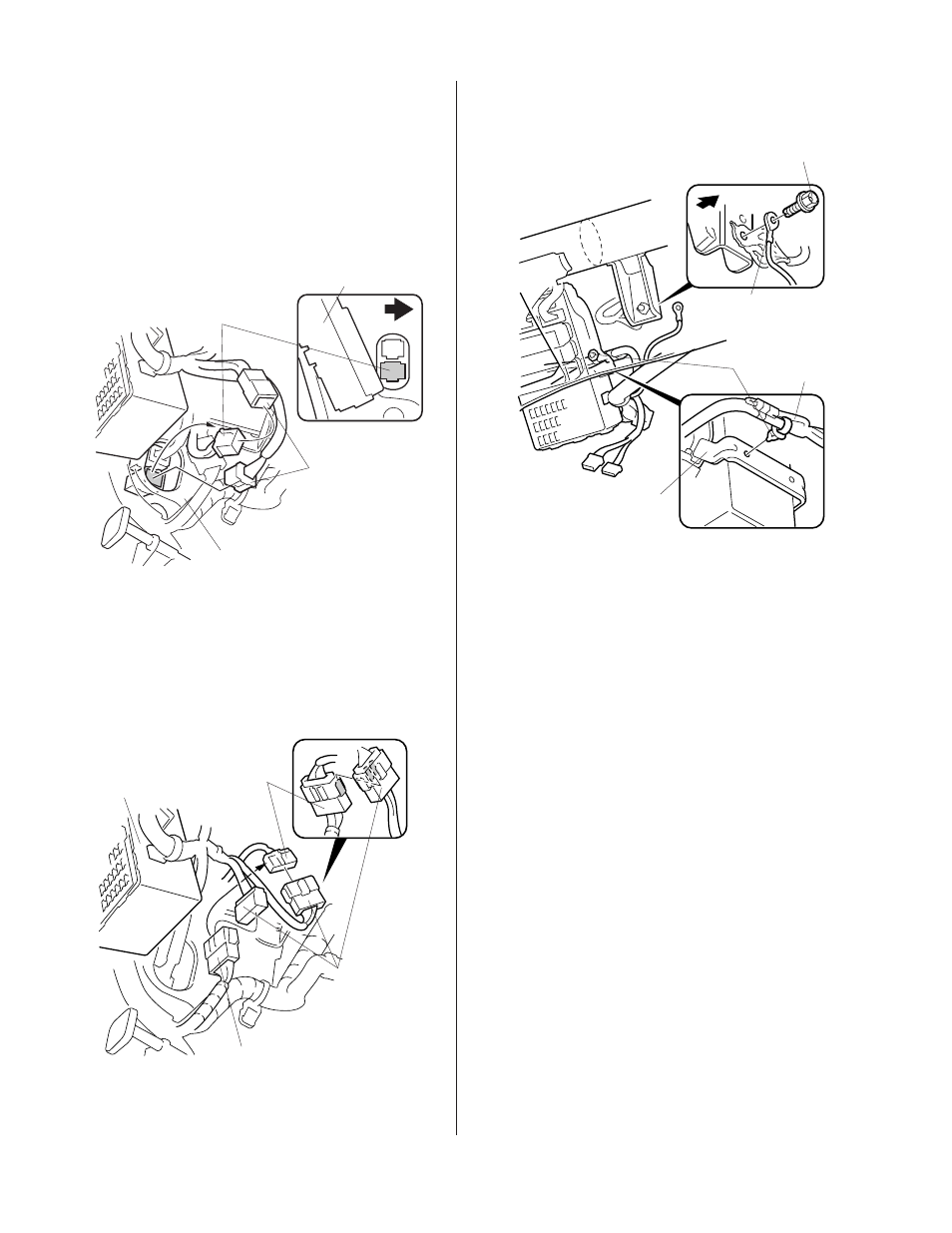

6D01152T

WHITE VEHICLE

14-PIN

CONNECTOR

ENGINE

STARTER

HARNESS

14-PIN

CONNECTOR

VEHICLE 14-PIN

CONNECTOR (white)

FUSE BOX

6D01132T

VEHICLE 23-PIN

CONNECTOR

(blue)

FUSE BOX

ENGINE STARTER

HARNESS 23-PIN

CONNECTOR (blue)

FRONT

LOWER

PILLAR

FRONT

SIDE VIEW

6D01181T

ENGINE

STARTER

HARNESS

FUSE BOX

BRACKET

CLIP

FRONT

GROUND BOLT

(Reuse.)

ENGINE STARTER

HARNESS GROUND

TERMINAL
