7. If you unplugged the transducer cable at the beginning of this procedure,
plug it back into the depth sounder.
NOTE: The connector is keyed to prevent reverse installation, so be careful not
to force the plug into the connector the wrong way.
NOTE: Neither water, spilled gasoline, nor oil will affect the performance of the
transducer.
Trolling Motor Transducer Installation

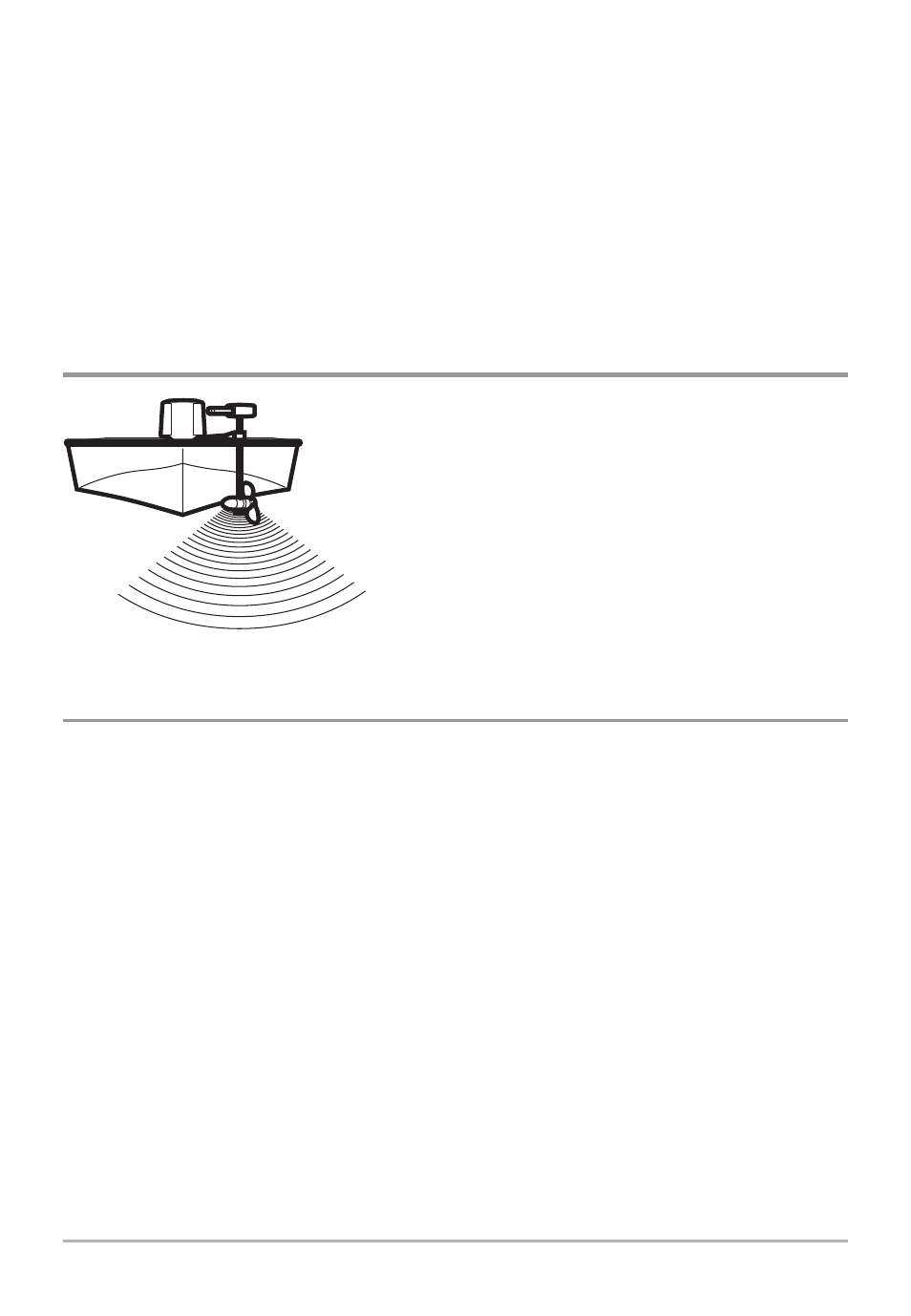

Several styles of the transducer are compatible
with trolling motor mounting. If you have a
trolling motor bracket, refer to the separate
installation instructions that are included with
the bracket.
Trolling Motor Transducer Options
If you don’t have a trolling motor transducer, there are several options:
• You may purchase a Trolling Motor Adapter kit that will allow you to mount
the transducer on the trolling motor.
• You may also exchange your NEW and UNASSEMBLED transducer (with
mounting hardware included) for a trolling motor transducer.
NOTE: There are also several transducer switches available that support the
configuration of two depth sounders with one transducer or two transducers with
one depth sounder.
NOTE: Call the Humminbird® Customer Resource Center at 1-800-633-1468 for
details and pricing, or visit humminbird.com for more information.
29 Trolling Motor Transducer Installation
