Page 20
4. Align the mounting bracket transducer
assembly with the drilled holes in the
transom. With a 5/16" socket driver, mount
the assembly to the transom using the two
#10 - 1" long screws provided (see the
illustration Mounting the Assembly to the
Transom).
NOTE: Make sure that the mounting screws
are snug, but do not fully tighten the mounting
screws at this time to allow the transducer
assembly to slide for adjustment purposes.
5. Snap the pivot arm down into place.

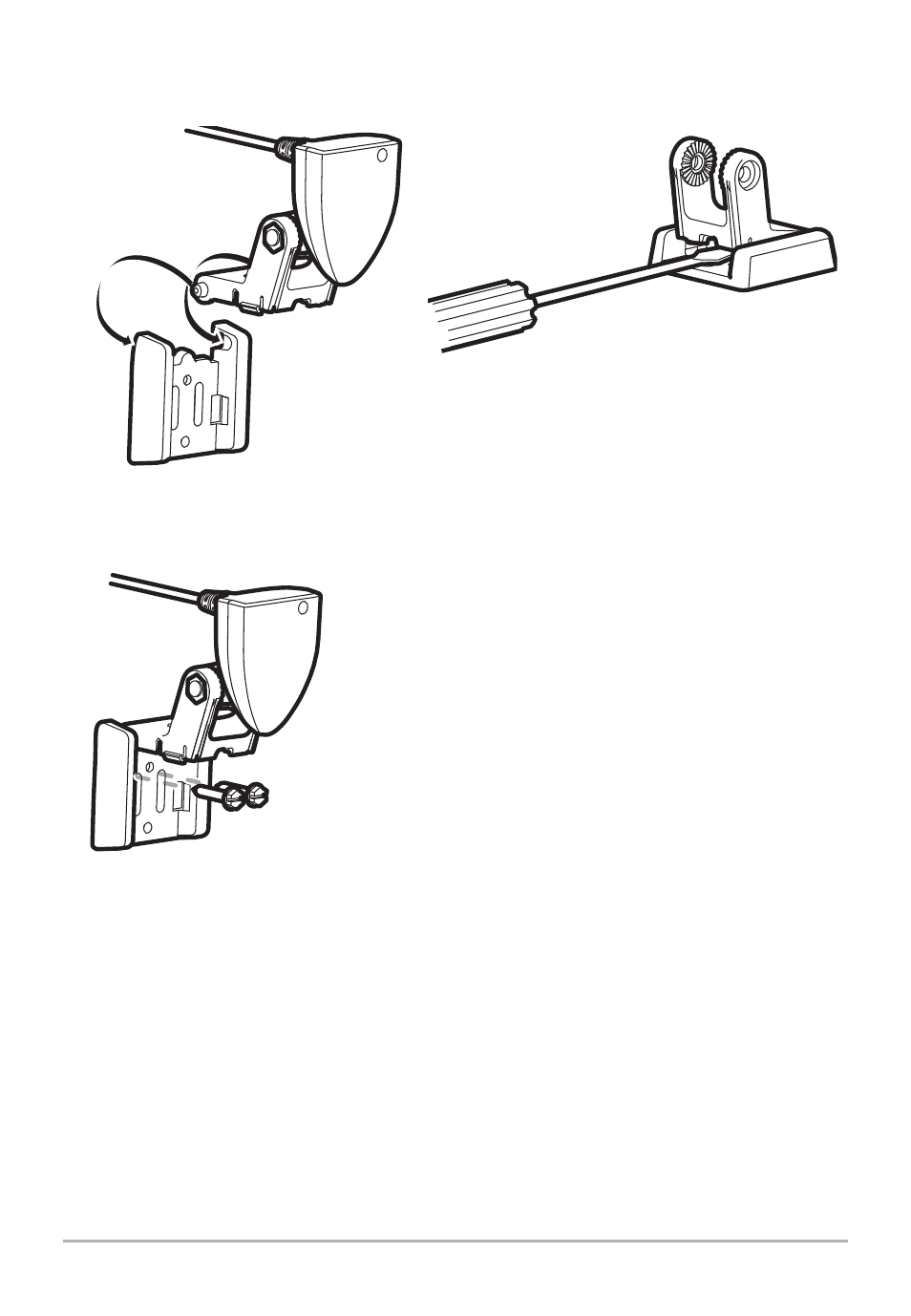

Mounting the Assembly
to the Transom
Inserting the Pivot Arm Assembly
Into the Mounting Bracket
Prying the Assembly Away
from the Mounting Bracket
16
Transom Mount Transducer Installation
