Hobart Welding Products BETASTICK 500 - Manual (Page 33)

OM-201 444 Page 29
Description
Part
No.
Dia.
Mkgs.
Item
No.

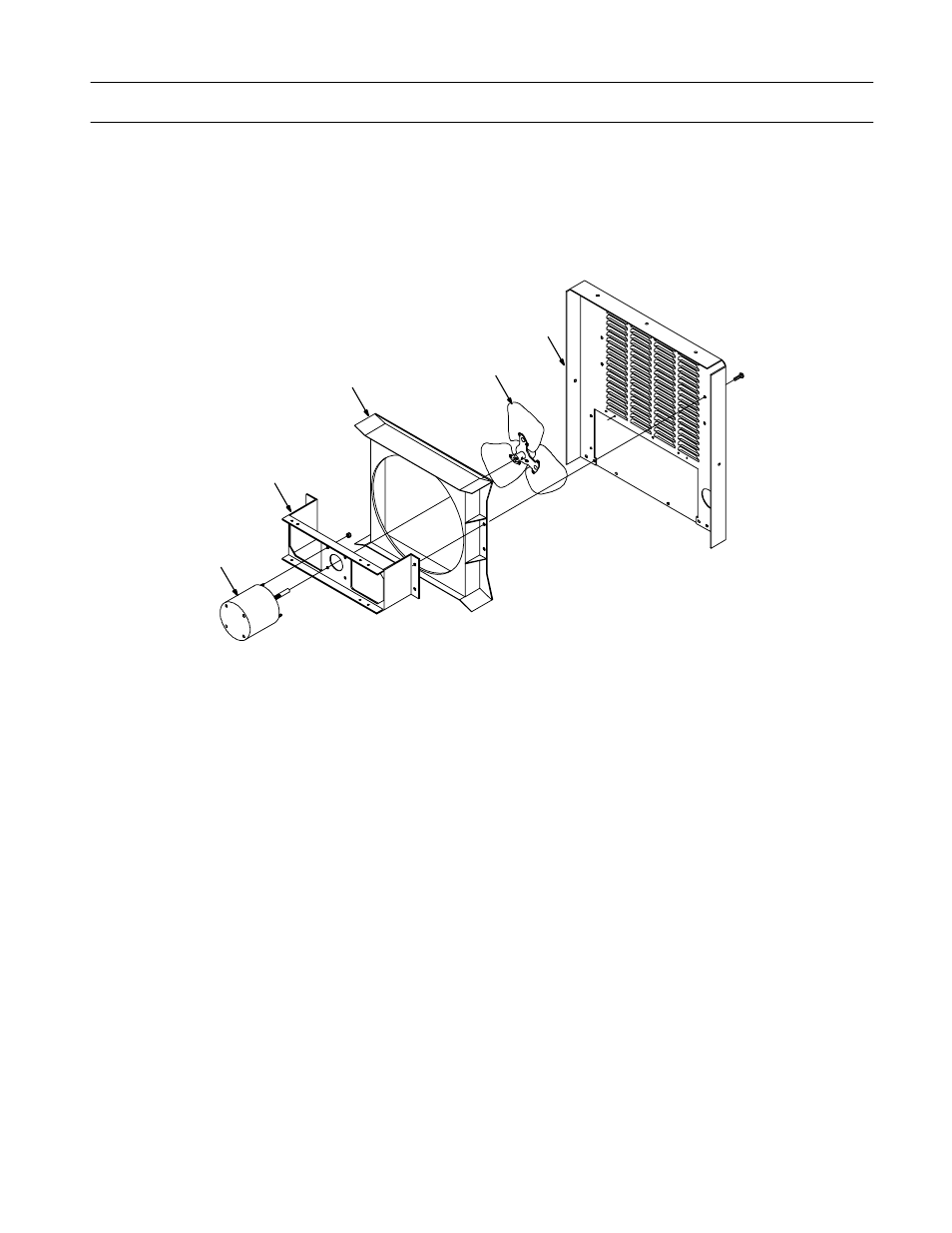

Figure 7-3 Panel, Rear w/Components (Fig 7-1 Item 10)
Quantity
1 FM 116 190 MOTOR, 1/12HP 230V 1550RPM 50/60Hz 1.5A 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 124 274 BRACKET, mtg fan motor 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 173 283 CHAMBER, plenum 14 in 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 180 165 BLADE, fan 14 in 3wg 28deg .375 bore CCW 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 +018 144 PANEL, rear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
179 290 LABEL, warning electric shock input connections (50 Hz models) 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.
Hardware is common and not
available unless listed.
1
ST-018 370-D
2
3
4
5
Figure 7-3 Panel, Rear w/Components
+When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
