Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11 46
H. Install the Logs
• Base logs are pre-installed.
• Place three top logs:
Place slot in bottom of top log over pin in top of base log.
Align opposite end of log with white notched area in top
of base log. Repeat for each top log. See Figures 15.1
through 15.6.

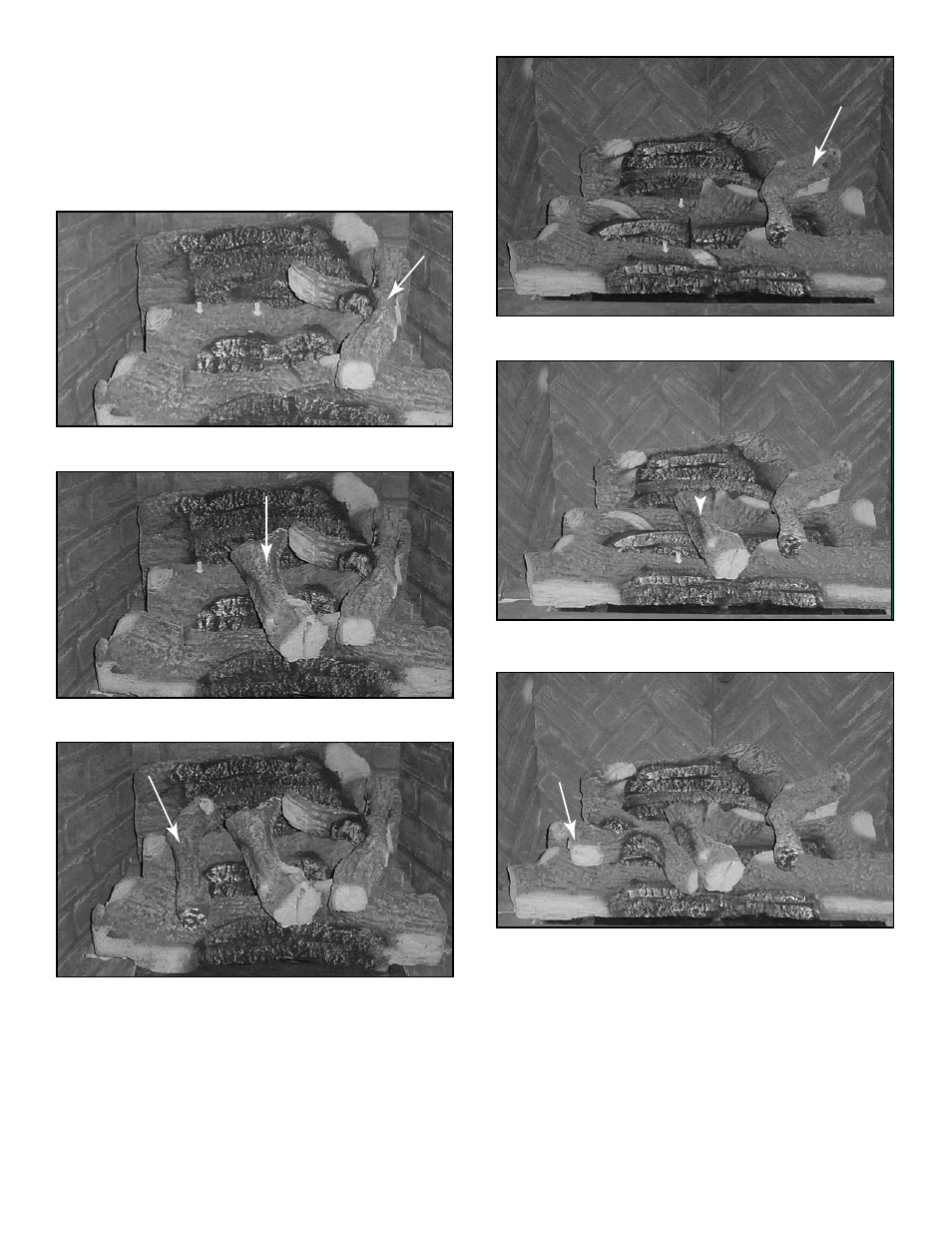

Figure 15.1 Placing First Top Log (4042-356) - IDV4833
Figure 15.2 Placing Second Top Log (4042-355) - IDV4833
Figure 15.3 Placing Third Top Log (4042-354) - IDV4833
Figure 15.4 Placing First Top Log (4042-362) - IDV6247
Figure 15.5 Placing Second Top Log (4042-355) - IDV6247
Figure 15.6 Placing Third Top Log (4042-356) - IDV6247
