Heatilator • ICON DV-IDV Series • 4042-575 • Rev. S • 5/11
17
5
5
Framing and Clearances
A. Select Appliance Location
When selecting a location for the appliance it is important
to consider the required clearances to walls (see Fig-
ure 5.1).
WARNING! Risk of Fire or Burns!
Provide adequate
clearance around air openings and for service access. Due
to high temperatures, the appliance should be located out
of traffi c and away from furniture and draperies.
NOTICE:
Illustrations refl ect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale. Actual installation may vary due to
individual design preference.
Top Vent
One 90° Elbow
Horiz Term
Top Vent
One 90° Elbow
Horiz Term
A
A
D
C
E
B
B
1-1/2 in. (38 mm)
min.
appliance
to combustibles
Alcove
Installation
F
A
Drywall
A
B
C
D
E
F
in.
47-1/2
64-1/4
30-1/2
48-1/2
90-7/8
48
mm
1207
1632
775
1232
2309
1219
in.
61-1/2
74-1/8
30-1/2
62-1/2
104-7/8
48
mm
1562
1883
775
1588
2665
1219
Model #
IDV4833I
IDV6247I

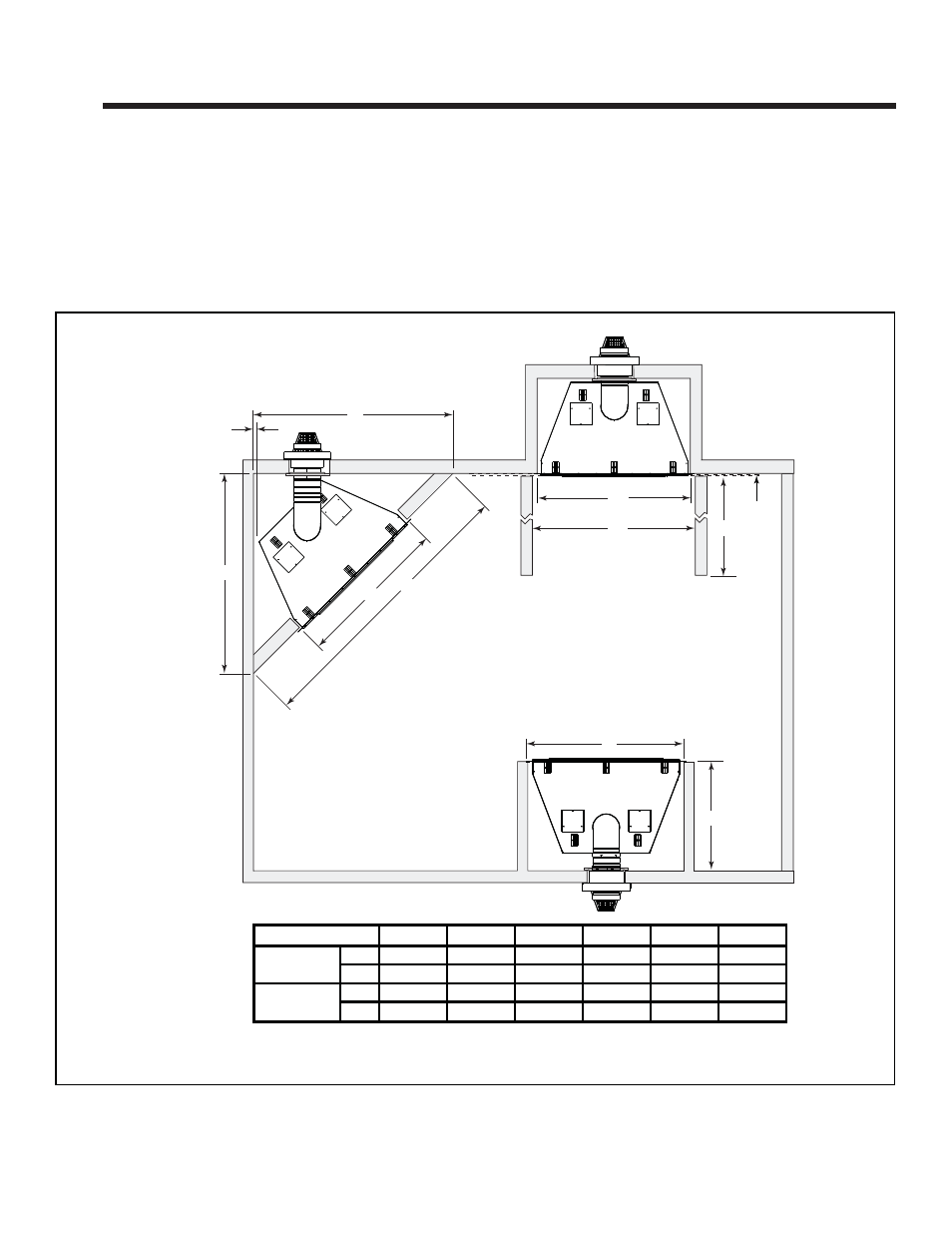

Figure 5.1
Appliance Locations
