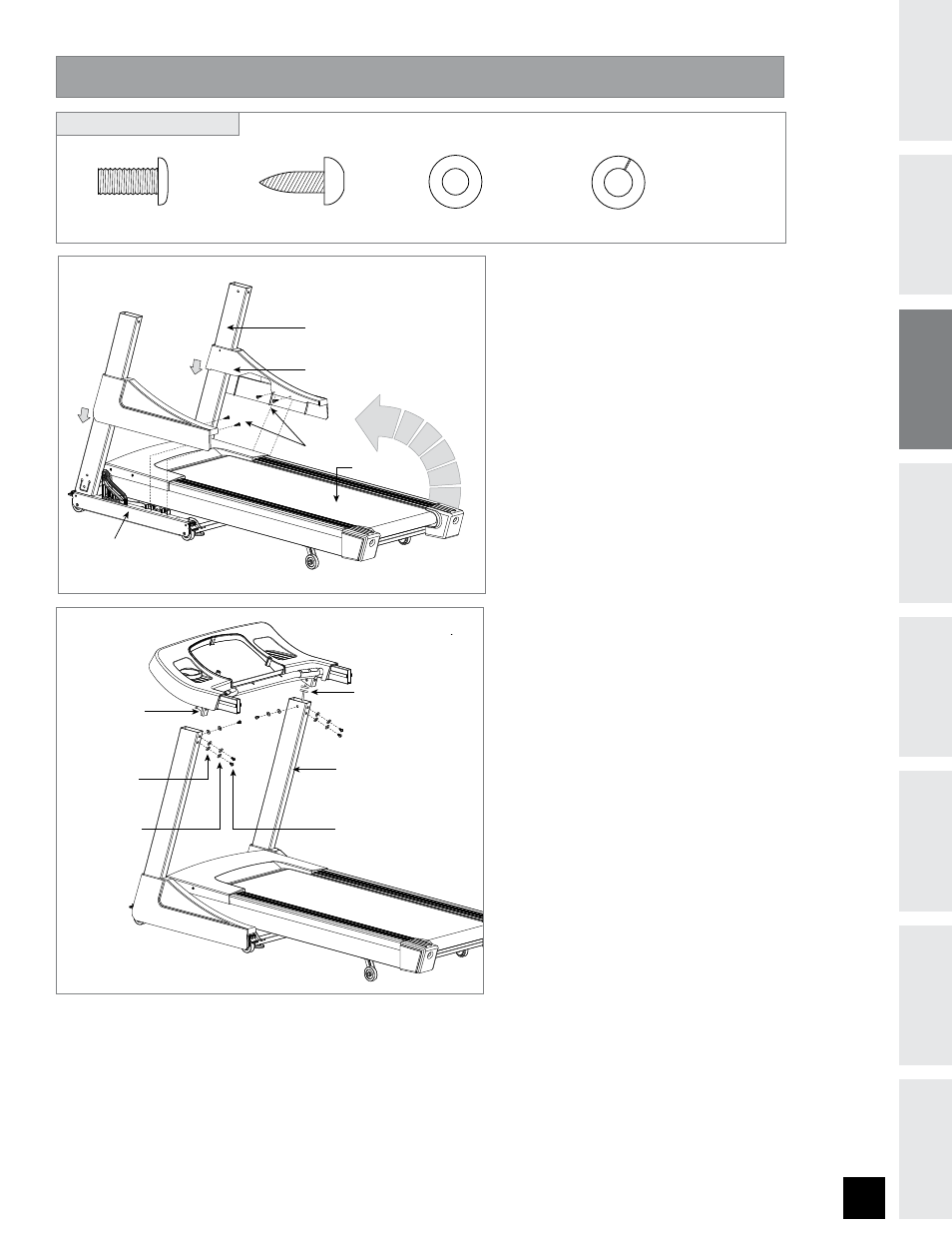

A Open HARDWARE BAG 2.
B Slide CONSOLE MAST BOOTS
down over BASE FRAME.
C Lift RUNNING DECK to upright
position.
D Insert 4 SCREWS (E) into inside
holes of CONSOLE MAST BOOTS.
E Connect CONSOLE WIRES.
F Slide CONSOLE BRACKETS into
CONSOLE MAST as shown.
G To attach CONSOLE, insert
1 FLAT WASHER (F), 1 LOCK
WASHER (G) and 1 BOLT (D) into
all 6 holes on upper CONSOLE
MASTS.
ASSEMBLY STEP 2
$0/40-&."45#005
$0/40-&."45
#"4&'3".&
36//*/(%&$,
4$3&84 &
$0/40-"$,&54
$0/40-&."45
#0-54 %
'-"58"4)&34 '
-0$,8"4)&34 (
$0/40-&8*3&4
'-"58"4)&3 '
NN
2UZ
-0$,8"4)&3 (
NN
2UZ
#0-5 %
NN
2UZ
4$3&8 &
NN
2UZ
HARDWARE BAG 2 CONTENTS :
