A Open HARDWARE BAG 1.
B Connect CONSOLE WIRES.
C Slide CONSOLE MASTS over BASE
FRAME BRACKETS.
D Insert BOLT (A) and FLAT WASHER
(B) into bottom side hole and
attach with NUT (C).
E Insert BOLT (D) and FLAT WASHER
(B) into rear hole.
F Repeat on other side.
G Insert BOLT (D) and FLAT WASHER
(B) into top side hole.
H Insert BOLT (D) into rear-most
inside hole.
I Repeat on other side.
NOTE: It is recommended that you apply grease to the threads of each bolt as you assemble your treadmill, to
prevent loosening and noise. Also, during each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
PRE-ASSEMBLY
$0/40-&8*3&4
#"4&'3"."$,&5

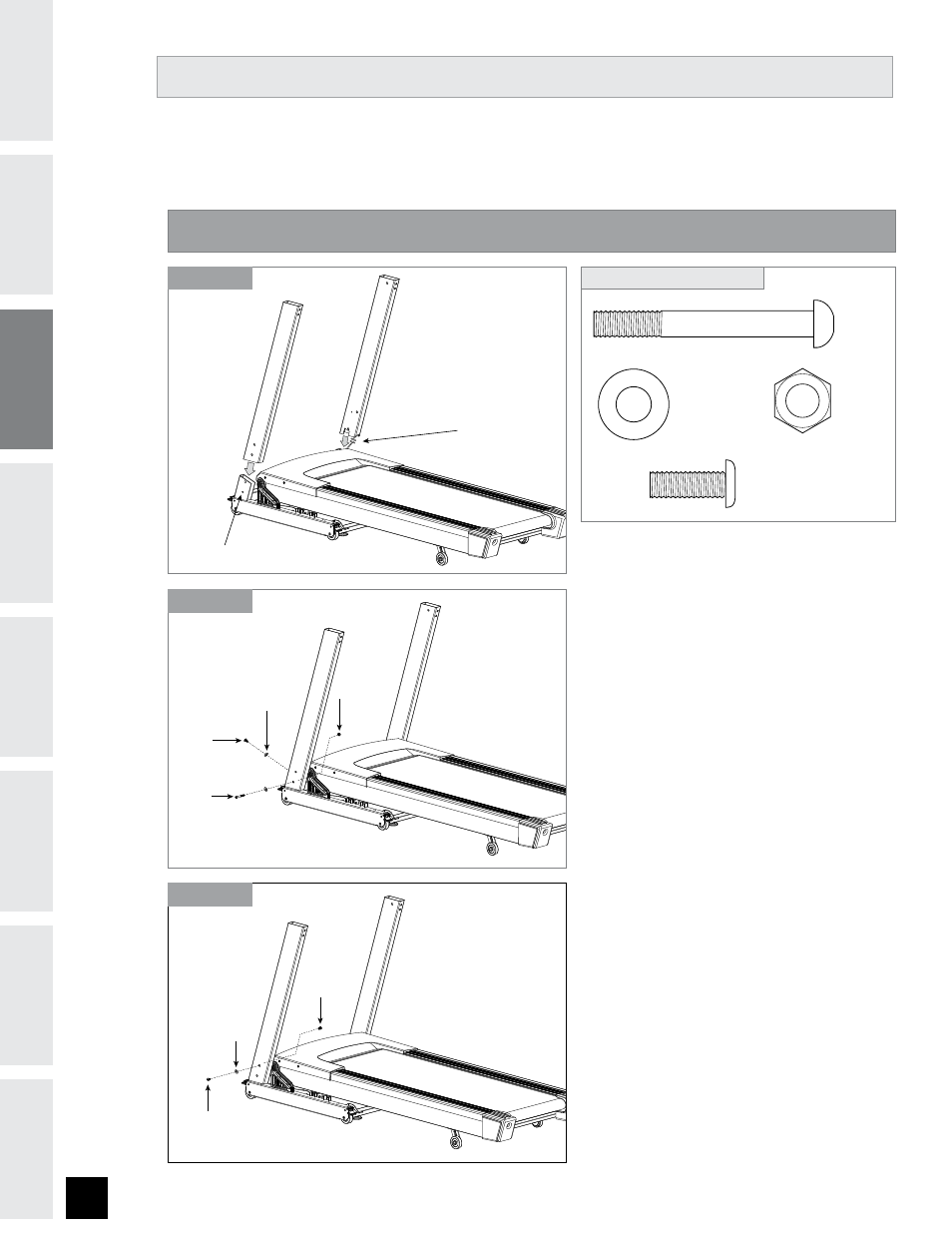

ASSEMBLY STEP 1
'-"58"4)&3 #
2UZ
#0-5 %
NN
2UZ
#0-5 "
NN
2UZ
/65 $
NN
2UZ
HARDWARE BAG 1 CONTENTS :
/65 $
#0-5 %
'-"58"4)&34 #
#0-5 "
#0-5 %
#0-5 %
'-"58"4)&3 #
Steps A-C
Steps D-F
Steps G-I
