SKU 00086

For technical questions, please call 1-800-444-3353.

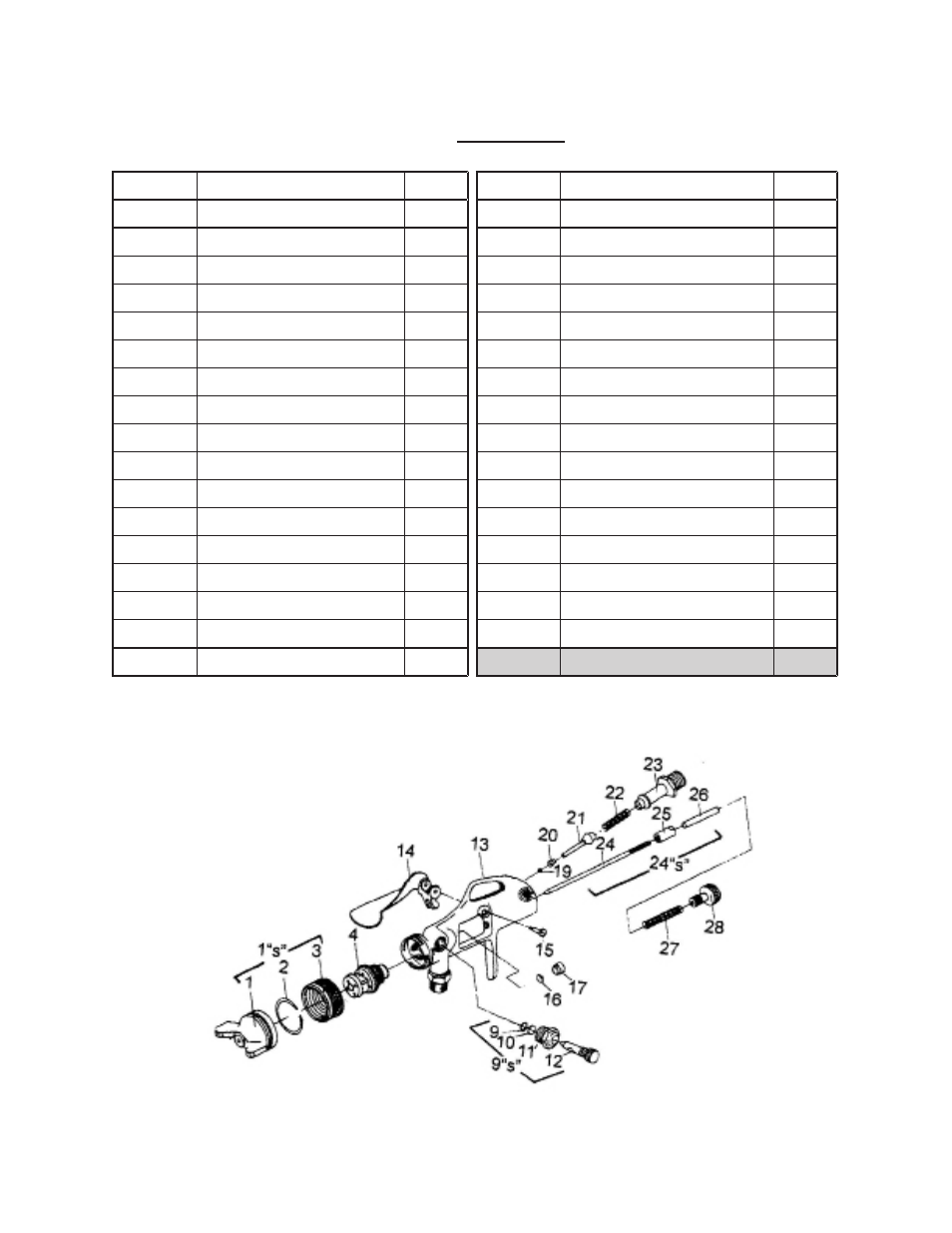

PARTS LIST

PART #

DESCRIPTION

QTY

PART #

DESCRIPTION

QTY

1

Air Cap

1

23

Union

1

2

Inner Ring

1

24

Needle

1

3

Retainer Ring

1

25

Lock Nut

1

4

Fluid Nozzle

1

26

Rear Nut

1

9

Ring

1

27

Spring

1

10

Packing

1

28

Fan Adjusting Screw

1

11

Vol. Adj. Screw Receiver

1

29

Lever

1

12

Volume Adjusting Screw

1

30

Yoke

1

13

Gun Housing

1

31

Fluid Stem

1

14

Trigger

1

32

Lid

1

15

Trigger Screw

1

33

Lid Nut

1

16

Packing

1

34

Cup

1

17

Nut

1

35

Cup Locks

2

19

Packing

1

1”S”

Nozzle Assembly

1

20

Valve Nut

1

9”S”

Volume Adjustment Assy.

1

21

Stem Assembly

1

24”S”

Needle Assembly

1

22

Spring

1
