CONTROL SYSTEM

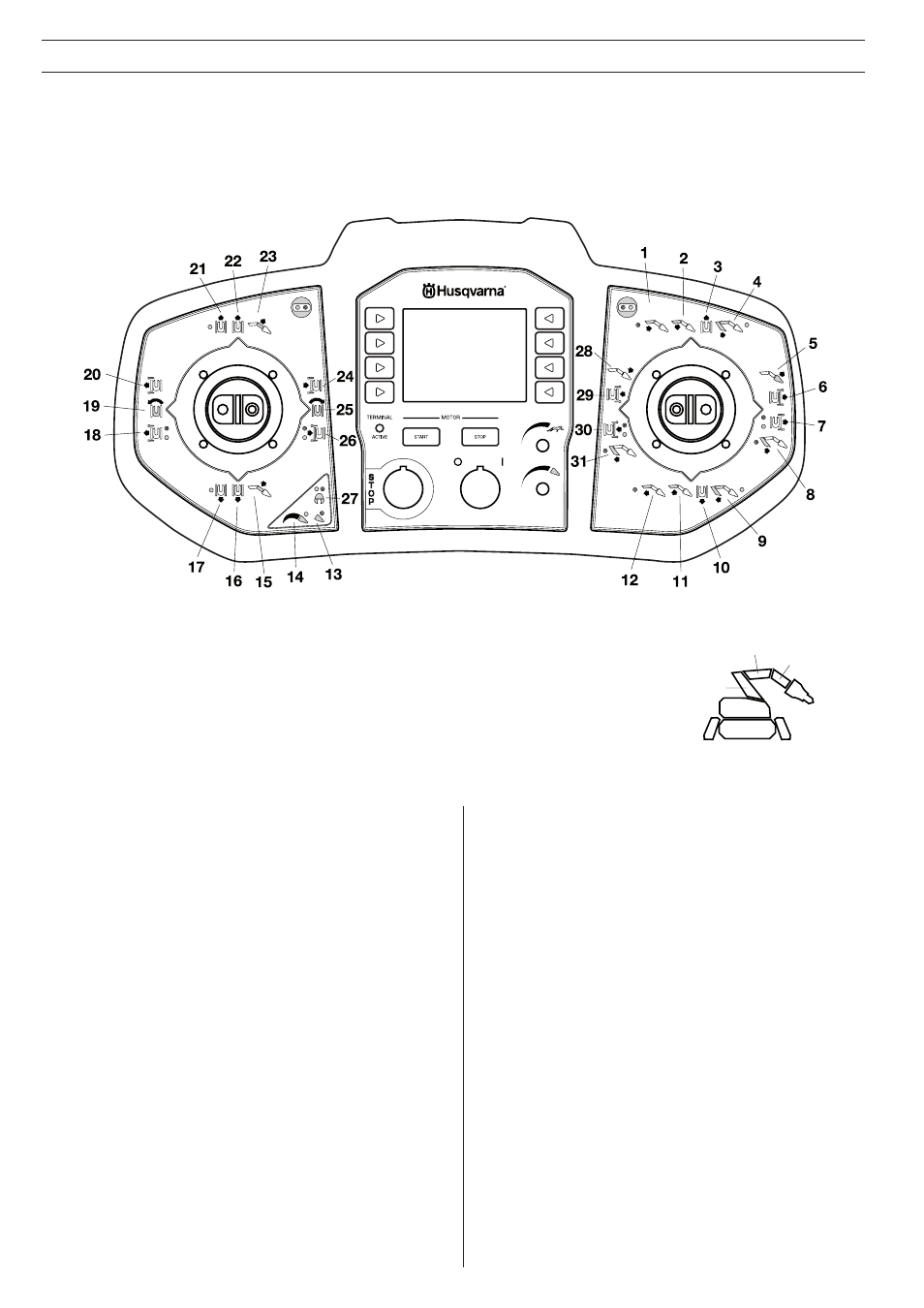

Symbols on the remote
control
1. Arm 2 telescope out
2. Arm 2 down
3. Right track operation forward
4. Arm 1 and arm 2 out
5. Angle tool outwards
6. Right outrigger down
7. Front/rear right outrigger down
8. Arm 1 out
9. Arm 1 and arm 2 in
10. Right track operation backwards
11. Arm 2 up
12. Arm 2 telescope in
13. Sticker - full fl ow to the tool
14. Sticker - adjustable fl ow to the tool
15. Arm 3 down
16. Left track operation backwards
17. Caterpillar tracks backwards
18. Rear/front left outrigger down
19. Rotation tower anti-clockwise
20. Left outrigger down
21. Caterpillar tracks forward
22. Left track operation forward
23. Arm 3 up
24. Left outrigger up
25. Rotation tower clockwise
26. Rear/front left outrigger up
27. Sticker - open/close cutters
28. Angle tool inwards
29. Right outrigger up
30. Front/rear right outrigger up
31. Arm 1 in
