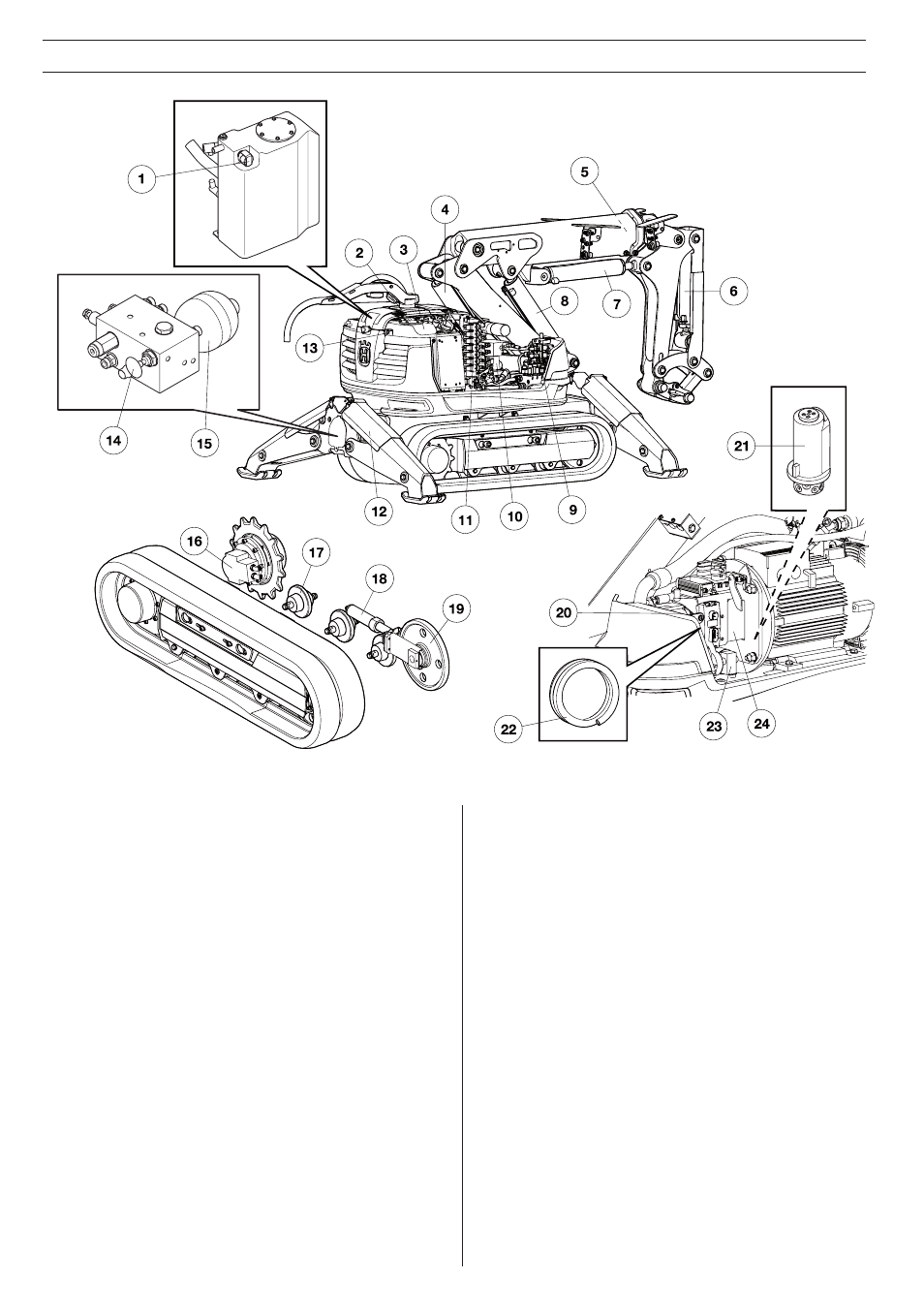

The machine’s hydraulic
system
1. Air fi lter
2. Oil fi lter
3. Hydraulic tank
4. Cylinder 1
5. Cylinder 5
6. Cylinder 4
7. Cylinder 3
8. Cylinder 2
9. Valve block 1
10. Slew motor
11. Valve block 2
12. Cylinders for outriggers
13. Sight gauge
14. Valve - release track tension
15. Accumulator - track tension
16. Drive motor, drive gear
17. Support wheels
18. Cylinders for track tensioning
19. Tensioning wheel
20. Hydraulic pump
21. Swivel
22. Hose for oil fi lling
23. Filling pump
24. Intermediate piece
HYDRAULIC SYSTEM
