5 • installing the motor housing – Hunter Fan Type A Models User Manual
Page 8
8
42859-01 • 04/24/09 • Hunter Fan Company

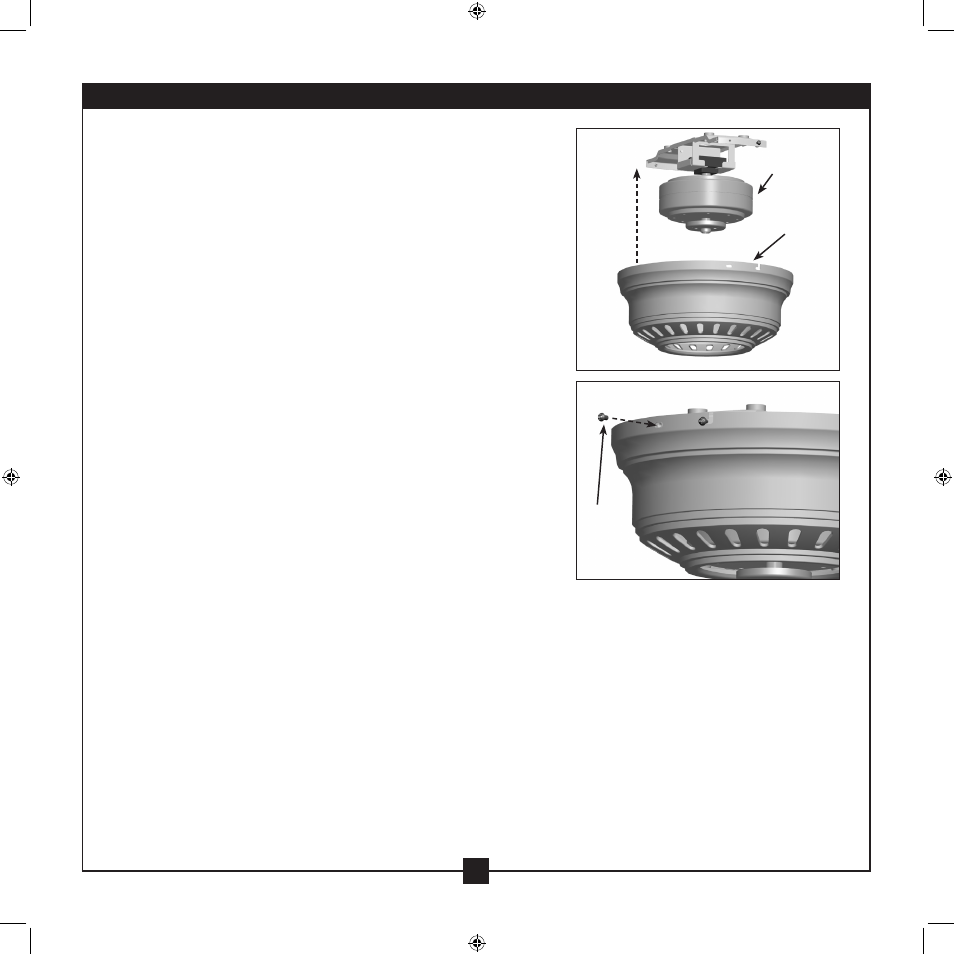

5-1. Place the fan housing over the motor.
5-2. Align the keyholes in the fan housing with the two partially
installed canopy screws in the hanger bracket. Rotate the fan
housing to situate the screws in the narrow ends of the keyholes.
5-3. Install the two remaining canopy screws into the holes in the fan
housing and into the hanger bracket. Securely tighten all screws.
Canopy
Screw
Step 5-1
Motor
Step 5-3
Fan Housing
5 • Installing the Motor Housing
