6 • Assembling the Blades
Hunter fans use several styles of fan blade irons (brackets that hold the blade
to the fan).
6-1. Your fan may include blade grommets. If your fan has grommets, insert
them by hand into the holes on the blades.
6-2. If your fan includes medallions:
Place each blade between a blade iron and medallion. Install three blade
screws to attach the medallion to the blade iron. Repeat for all blades.
If your fan includes standard blade irons:
Attach each blade to a blade iron using three blade assembly screws. If
you used grommets, the blades may appear slightly loose after screws
are tightened. This is normal.
6-3. Some blade mounting screws are installed in the motor to secure
shipping blocks. Remove the blade mountings screws and rubber
bumpers from the motor. Save the screws and discard the bumpers.
6-4. For each blade, insert one blade mounting screw through the blade iron,
and attach lightly to the fan. Insert the second blade mounting screw,
then securely tighten both mounting screws.

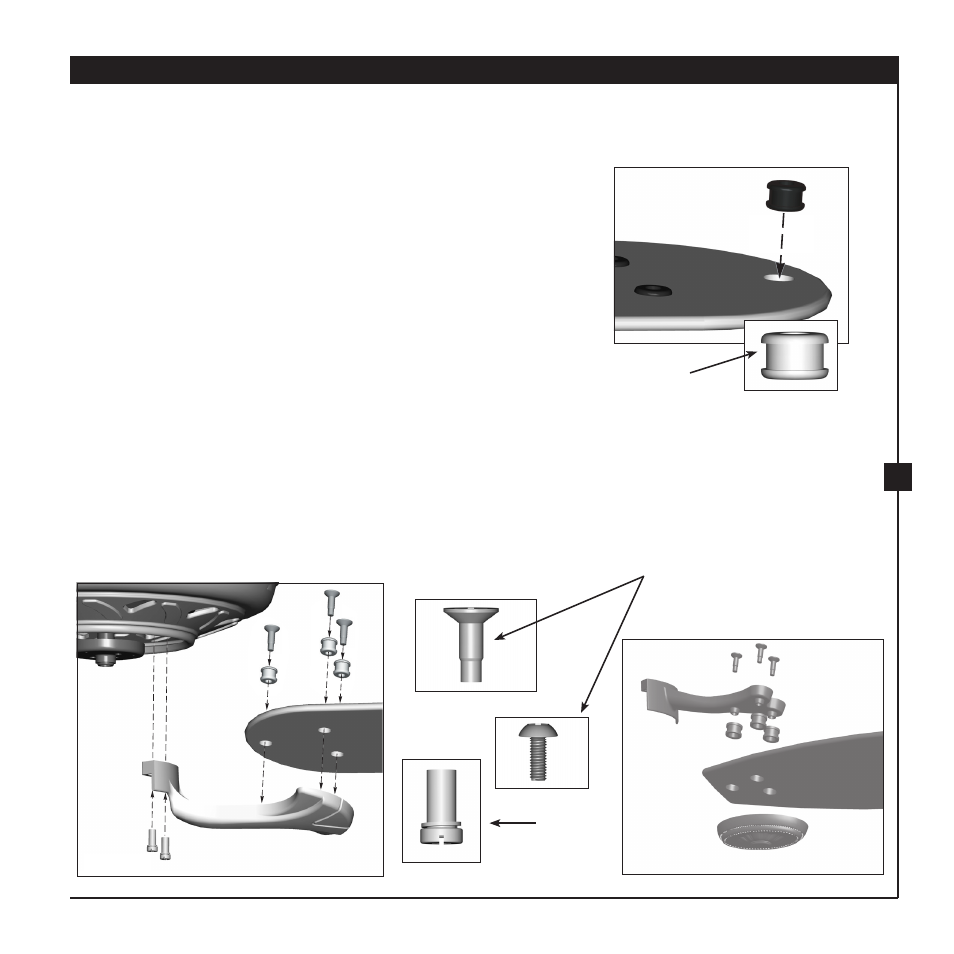

Step 6-1 (Detail)
Grommet
Blade Assembly
Screws
Use without grommet
Blade
Mounting
Screw
Blades without medallions
Steps 6-1 – 6-2
Step 6-4
42639-01 • 4/5/07 Hunter Fan Company
Blades with Medallions
Steps 6-1 – 6-2
