WARNING: Use only the light fixture supplied with this fan model.
7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws firmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light fixture falling.

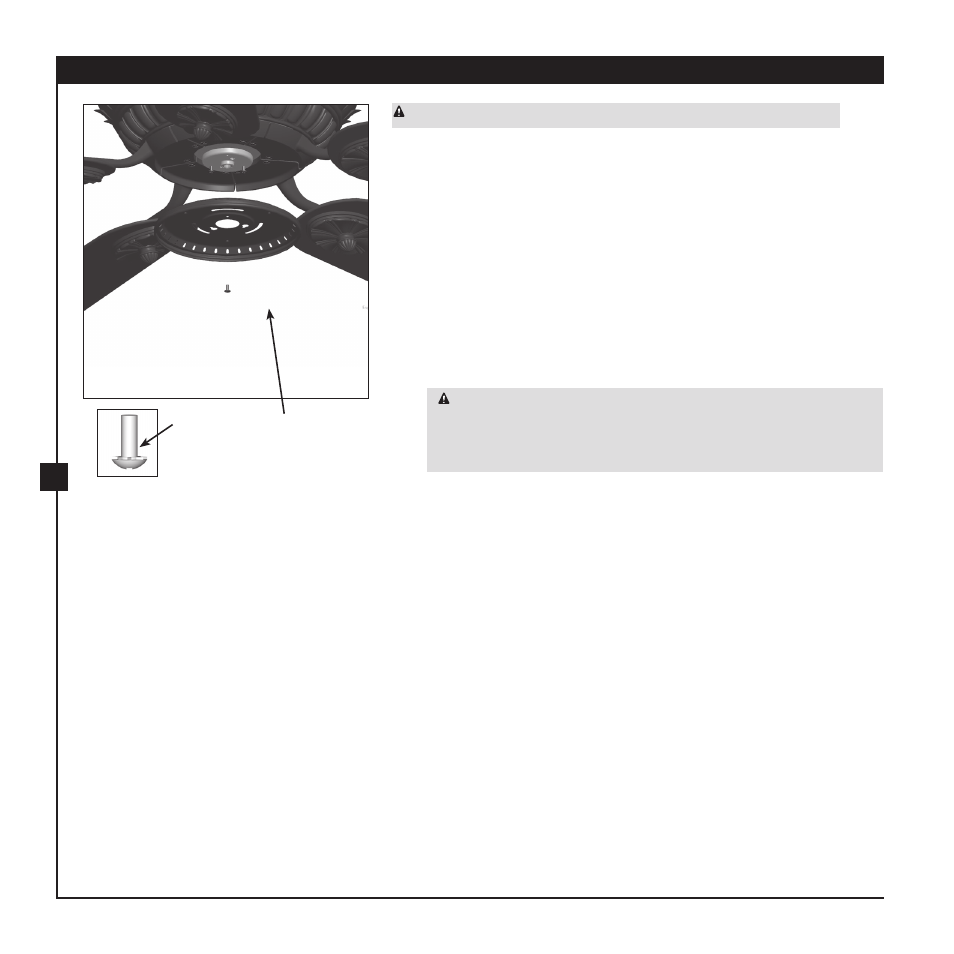

7 • Completing Your Installation With a Light Fixture
Steps 7-1 – 7-3
Housing
Assembly
Screw
Upper
Switch
Housing
Hunter Fan Company 42639-01 • 4/5/07
Your Hunter fan comes with an integrated light fixture assembly and an
optional switch housing cap and plug button. This feature gives you the
option of installing the fan with OR without the included light fixture.
The steps below direct you whether or not you are installing a light
fixture.
WARNING: Use only the light fixture supplied with this fan model.
7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of the
housing.
7-3. Align the keyhole slots in the housing with the housing assembly
screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are firmly situated in the narrow end of the keyhole slots.
Install the remaining screw into the housing. Tighten all three
screws firmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing and light fixture falling.
7-5. If you want to install the light fixture, proceed with step 7-6
now.
If you do not want to install the light fixture, you need to
uninstall it now. See “Uninstalling the Light Fixture” on page 13.
Once you have uninstalled the light fixture, continue with step
7-6.
