Programming Instructions
Introduction
This controller has been designed with four separate
programs, to allow different garden areas to have their
own individual watering requirements.
A program is basically a method of grouping stations
(valves) with similar watering requirements to water on
the same days. These stations will water in sequential
order from the lowest number at the start time (or times)
nominated and on the days selected.
Glossary

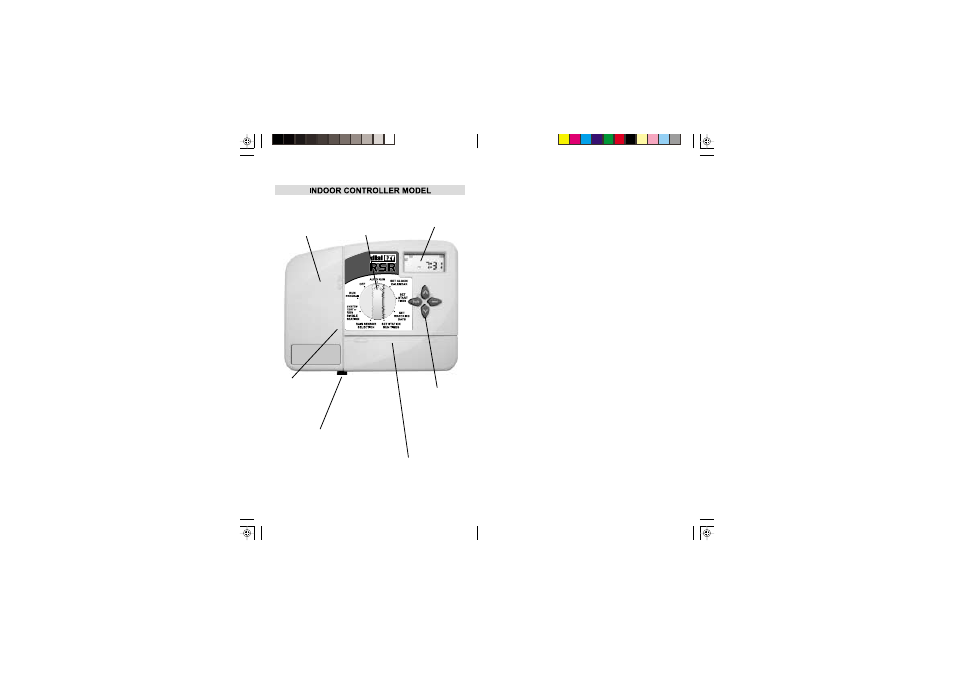

PAGE 2
LCD Display
Easy to read
display.
Selection Dial
Used for
operations &
programming.
Battery Cover
Remove cover
to fit 9V block
battery.
Fuse
Location
Remove
cover to
access.
Socket & Rubber Plug (RSR)
Rain Sensor Cable Socket.
Simple push in, pull out, plug
& socket configuration.
Compatible with HOLMAN
Rain Sensor (CRS1000BC)
Terminal Cover
Remove to access
terminals for
solenoid / valve
wires.
Programming
Buttons
Used for
adjusting the
programmed
information.
The key elements when programming
your controller are:
l Grouping the stations. (valves)
Group together garden areas which have similiar
watering requirements. Examples are: Turf Areas,
Flower Beds, Pergola/Undercover Areas, or Vegetables.
These different groups require individual settings.
l Planning out your watering program.
Complete your individual watering planner, supplied at
the back of this book.
l Setting the current time and correct day of the week.
l Setting an automatic program.
Use the following 3 steps to program each group.
1. Set Start(s).
This sets the time of the day when the watering
program will commence.
2. Set Watering Days.
These are the nominated days when the
automatic system will be active.
3. Set Station Run Times.
This sets the watering duration required for each
station (valve).
