53 Heatilator • Birmingham BIR42-B • 4059-681C• 9/12
DTO134 A B C
in 34 20 24
mm 864 508 610
DTO146
in 46 22.7 26
mm 1168 576 660
DTS134
in 34 21.18 24
mm 864 538 610
DTS146
in 46 21.18 26
mm 1168 538 660
B
C
B
A
C
A

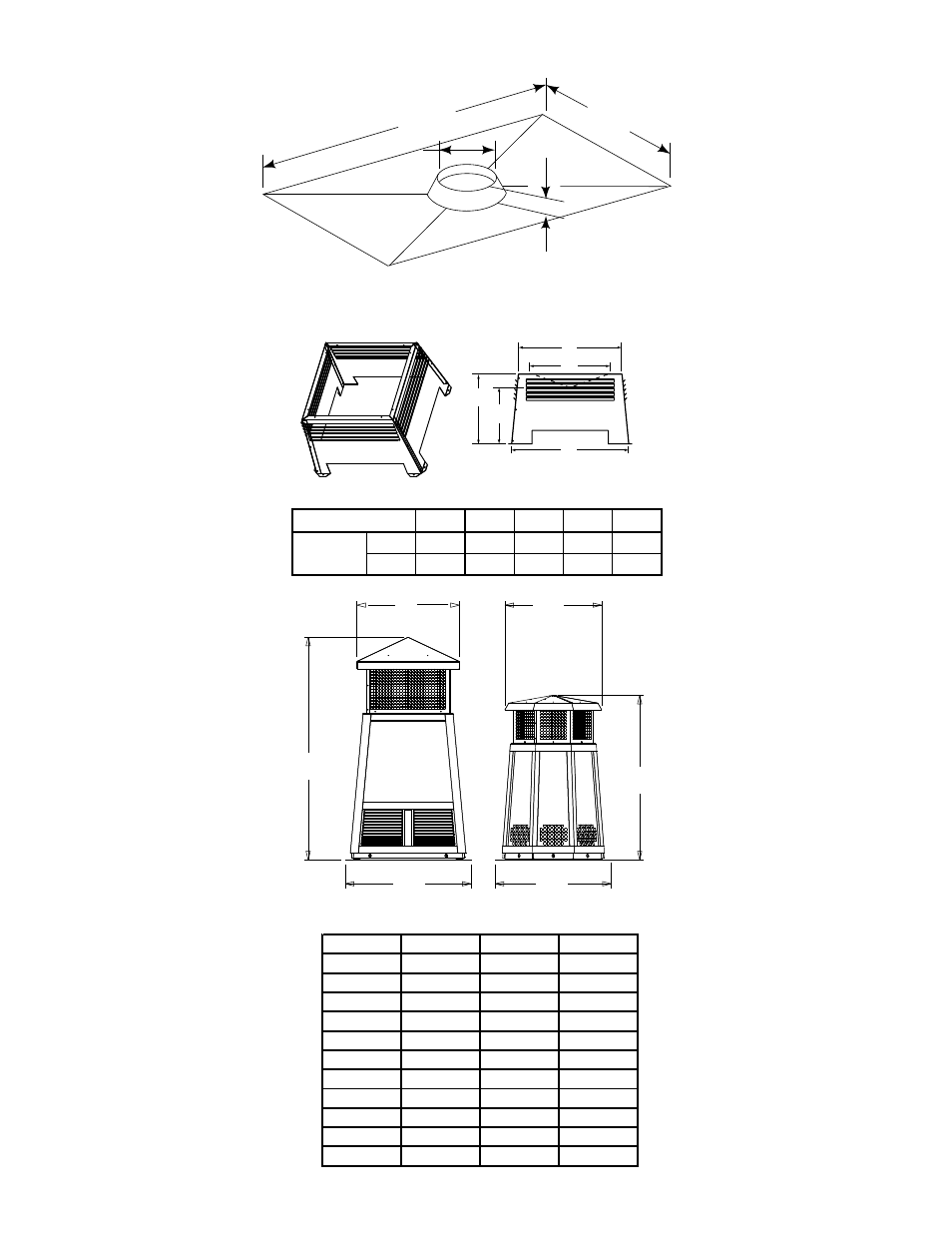

DTS134 /DTS146 DTO134 / DTO146
Decorative Caps
LDS-BV Decorative Shroud
E
D
A
C
B
CT56 Chase Top
72 in.
(1829 mm)
36 in.
(914 mm)
2 in.
(51 mm)
13-3/8 in.
(340 mm)
Catalog # A B C E E
LDS-BV
in. 26 12.5 15.5 22 23
mm 660 318 394 533 584
