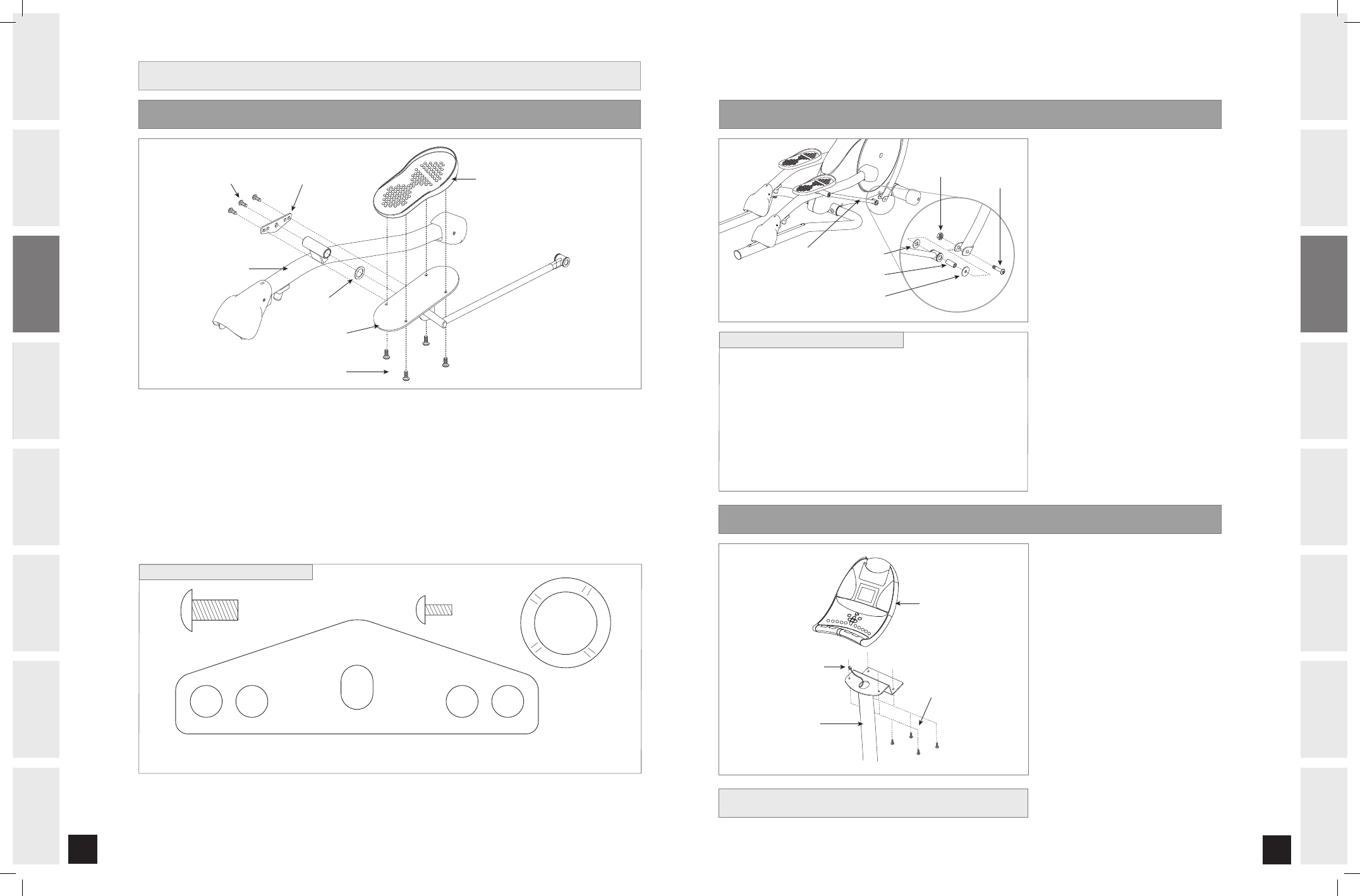

A) Open HARDWARE BAG FOR STEP 6.
B) Attach FOOTPAD to FOOT PLATE using 4 BOLTS (K).
C) Slide WAVY WASHER (L) and the FOOT PLATE onto the PEDAL ARM axle.
D) Attach FOOTPAD BRACKET to FOOT PLATE using 3 BOLTS (M).
E) Repeat on other side.
ASSEMBLY STEP 6
����
����������
������
��������
�����
������
���������������
������
��������
����
������
HARDWARE BAG FOR STEP 6 CONTENTS :
2.2E ASSEMBLY
YOU’RE FINISHED!
ASSEMBLY STEP 8
������������
������
�������
������������
�������������
NOTE: There is NO hardware bag
for this step. All hardware is pre-
installed.
A) Attach the CONSOLE WIRES.
B) Carefully tuck the CONSOLE
MAST wires into the CONSOLE
MAST before attaching the
CONSOLE.
C) Attach CONSOLE to the
CONSOLE MAST using the
4
PRE-ATTACHED SCREWS
(screws will have to be removed
from the console first).
DO NOT PINCH WIRES!
A) Open HARDWARE BAG FOR STEP 7.
B) Remove PRE-ATTACHED BOLT &
WASHERS from CONSOLE MAST.
C) Slide LOWER HANDLEBARS onto
CONSOLE MAST and attach by
re-inserting
PRE-ATTACHED BOLT
& WASHERS.
D) Attach UPPER HANDLEBARS to
LOWER HANDLEBARS using PRE-
ATTACHED SCREWS.
D) Attach HANDLEBAR COVERS using
4 SCREWS (J).
�������
��������
���������������
�������� ���������������
����������
�����������������
ASSEMBLY STEP 7
HARDWARE BAG FOR STEP 7 CONTENTS :
