Front and Back View
8 www.honeywellgenerators.com HW1000i / HW2000i Inverter Generator Owner’s Manual

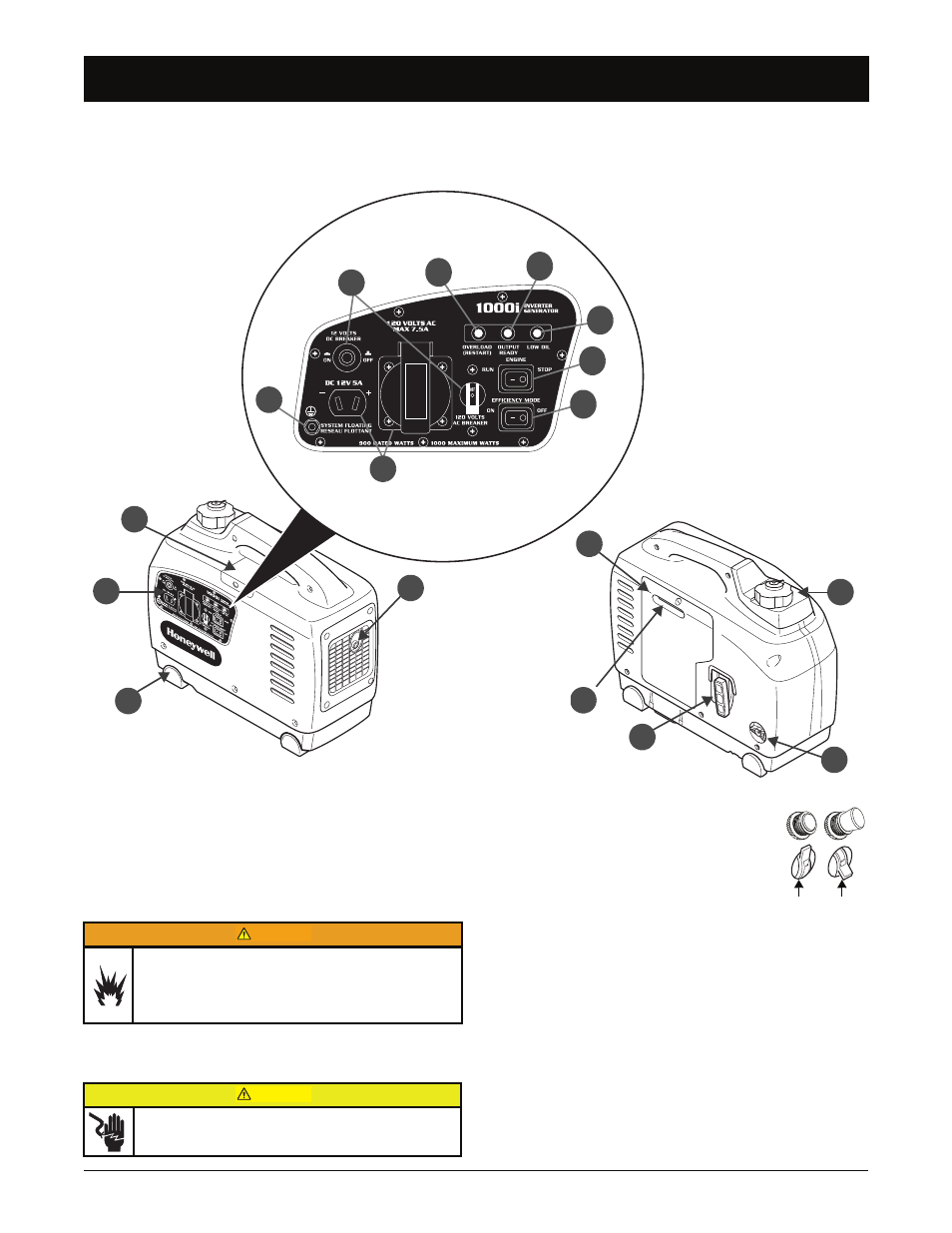

Front and Back View
Front and Back View
HW1000i Model
A—Control Panel
1. Outlets
125VAC outlet(s) (NEMA 5-15R [HW1000i model] and NEMA
5-20R [HW2000i model]) to connect 120V appliances to gen-
erator for power.
DC outlet ranges from 12 to 18 volts and is unregulated. This
outlet should not be used for battery charging.
2. Ground Terminal
Connects generator to ground wire for grounding protection.
3. Breakers
Protect circuits from damage caused by
overload or short-circuit by stopping flow
of electricity from generator to the appli-
ance. If there is no power at outlets, see
“Troubleshooting” on page 27.
4. Overload Indicator Light
Illuminates red when the generator is overloaded or if there is
a short circuit in a connected appliance. Turn the generator
off immediately and determine the reason for the overload.
5. Output Indicator Light
Illuminates green when the generator is running under nor-
mal operating conditions.
6. Oil Alert Indicator Light
Illuminates red when low oil conditions are present and the
generator is running (
or while recoil is pulled). The engine
will automatically stop to prevent generator damage.
A
D
B
C
2
4
7
8
6
1
5
3
G
E
F
H
J
NEVER use unapproved DC cables as this can
result in circumstances leading to death, serious
injury, and property damage. ALWAYS use Honey-
well DC accessory cables (sold separately) available
from a Honeywell dealer.
Generator must be grounded to prevent electrical
shock from faulty appliances. See page 6.
WARNING
CAUTION
Set Tripped
DC
AC
