ENGLISH

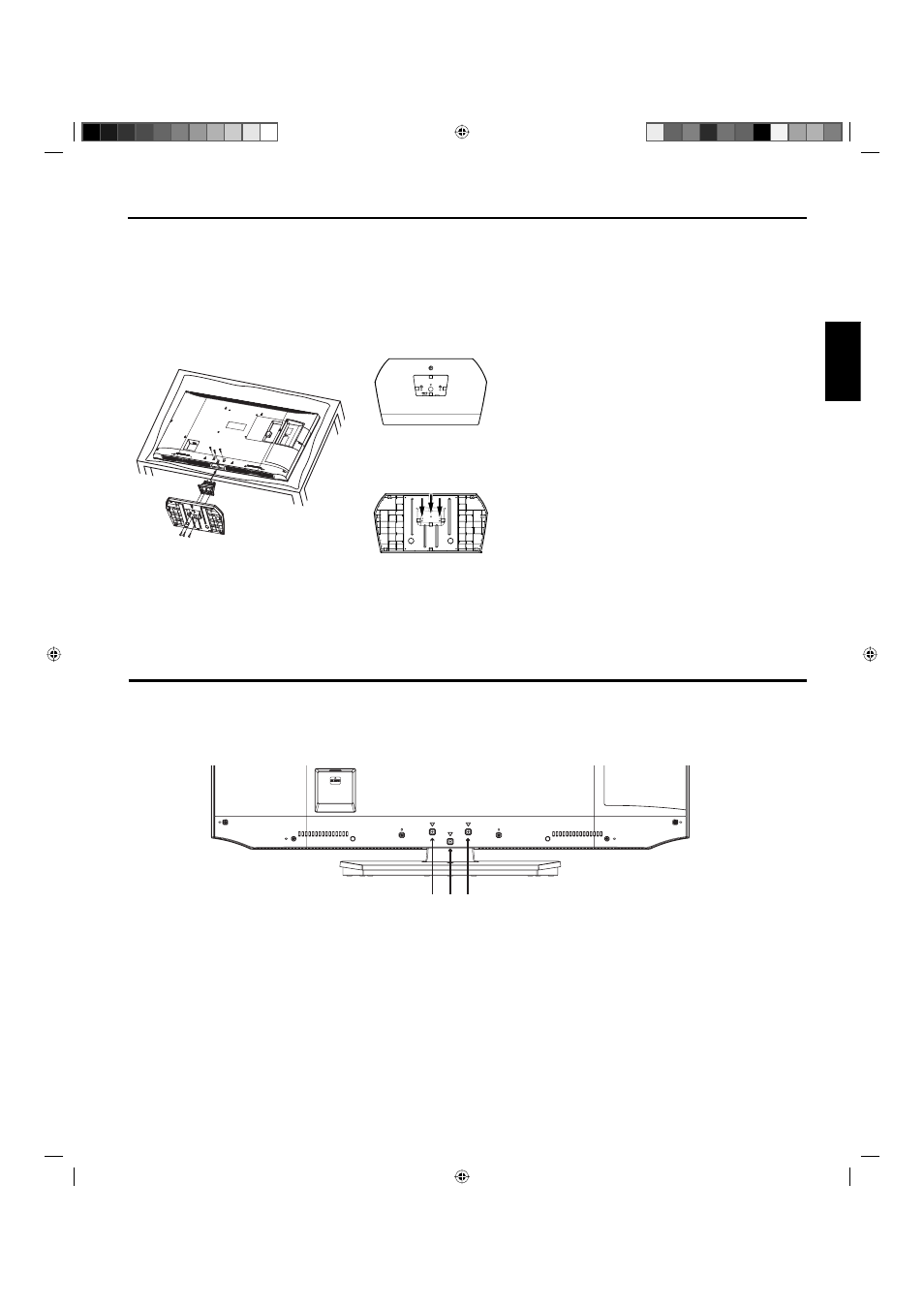

How to attach the stand

How to remove the stand

When you transport this product, remove the stand and pack fl at against the back of the unit in the carton. To remove the stand,
perform these steps in reverse order.

For wall mounting, the base must be removed. To disconnect the base/stand remove the 3 screws from the back.

NOTE:
• Unplug the AC cord from the AC INPUT terminal.
• Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit.
• Do not touch or press the LCD screen, the glass might break under pressure.

Place the TV on its front onto a table.
Align the stand’s bottom-plate (supplied) as seen here.
It will fi t in only one direction.
Hold the unit and attach the stand frame (a) slowly and secure the stand frame (a) with the 3 screws (supplied). (M4x35mm),
as shown in Figure 1.

Finally secure the bottom-plate (b) with 3 screws (supplied) (M4x16mm) as indicated by the arrows in Figure 2.

Be sure to follow the instructions. Insufficient tightening or incorrect installation of the stand will not support your unit correctly, and

could result in damage or injury from tip-over.

•

Screws

LCD PANEL FRONT

Figure 1

Figure 2

(a)

(b)
