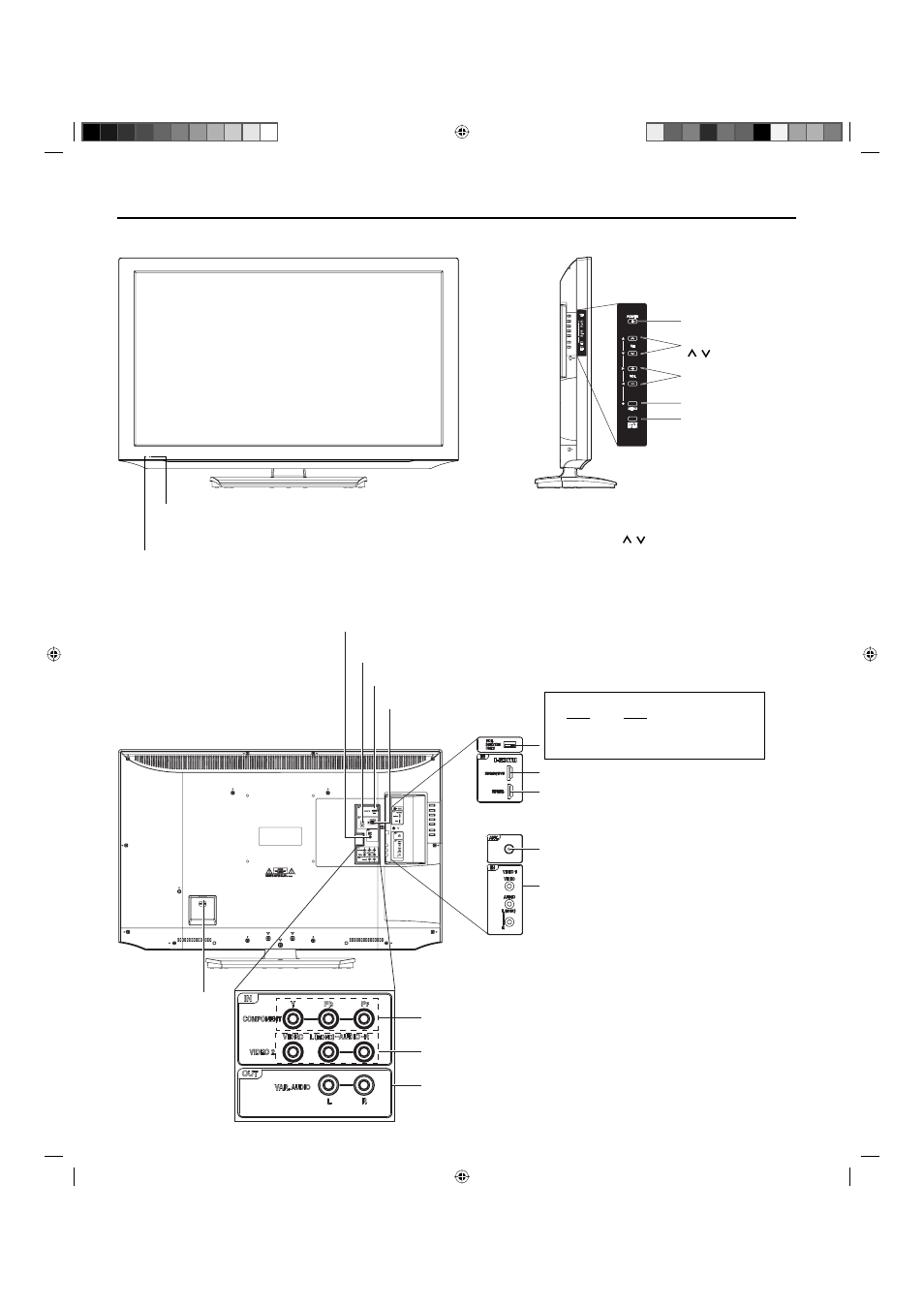

Location of controls
FOR SERVICE PERSONNEL USE ONLY
Do NOT insert ANY USB device into
this port. Use of this port by other than
Service Personnel may void this products
warranty.
Left side Front
Remote sensor
POWER button
INPUT/ENTER button
VOL (VOLUME)
+/– buttons
CH (CHANNEL)
/ buttons
MENU button
Rear
To display the menu screen.
Press MENU button to display the menu screen.
CH (CHANNEL) / buttons, VOL (VOLUME)
+/– buttons and INPUT/ENTER button can be used
to select the desired setting during the menu screen
operations.
PC/DVI AUDIO IN jack
VIDEO1 IN jacks
(VIDEO/AUDIO
(L (MONO)/R))
COMPONENT IN jacks
HDMI2 IN jack
PC MONITOR IN jack
AC INPUT jack
ANT. (RF) IN jack
POWER Indicator
Red : Standby
Green : On
HDMI1/DVI IN jack
DIGITAL AUDIO
COAXIAL OUT jack
VIDEO2 IN jacks
(VIDEO/AUDIO (L (MONO)/R))
VAR.(VARIABLE)
AUDIO OUT jacks
HDMI3 IN jack
