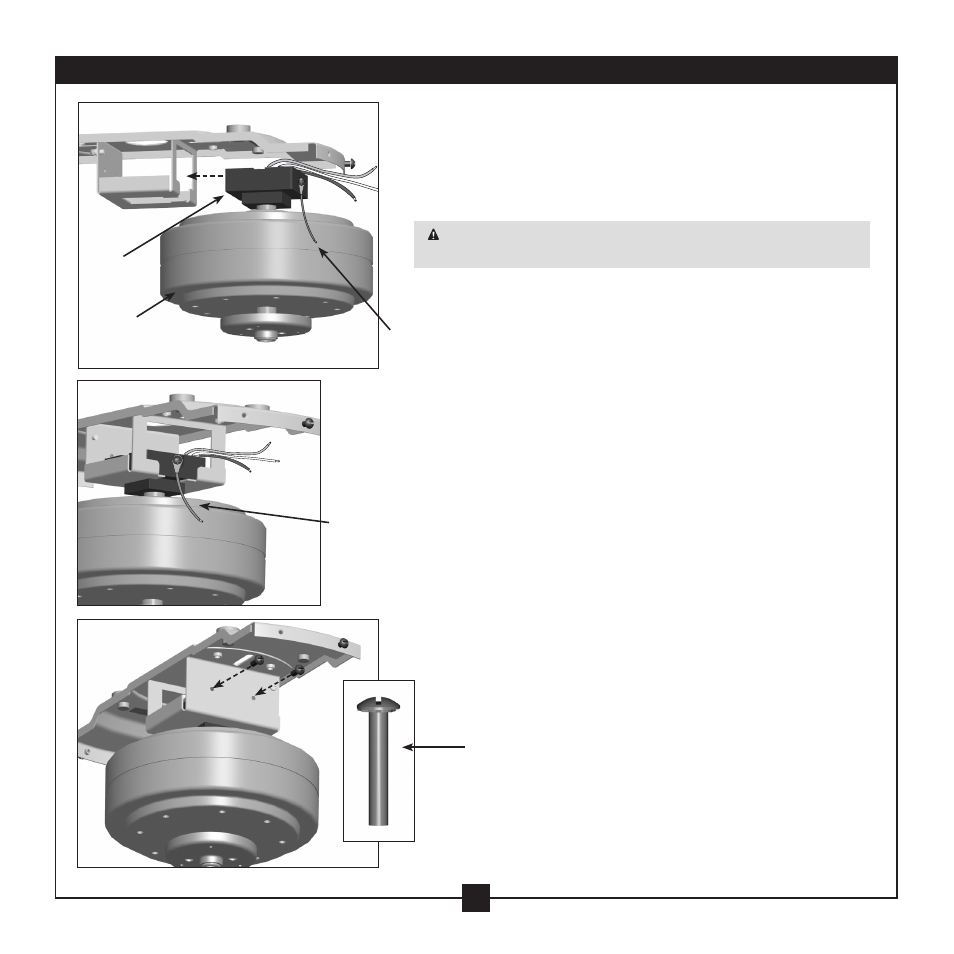

3 • Assembling and Hanging the Fan

Step 3-2

#8-32 x 1” Screw

Green

Ground Wire

3-1. Position the square hanger so that the green ground wire

attached to the square faces out of the large opening in the

metal bracket.

3-2. Holding the wires out of the way, lift the motor assembly and

place the square hanger into the opening in the ceiling plate.

WARNING: Make sure the square hanger can not rotate in the

metal bracket. Failure to do so could result in the fan falling.

3-3. Install two locking screws through the holes in the side of the

metal bracket to secure the square hanger.

Step 3-1

Motor

Assembly

Square

Hanger

Step 3-3

Locking Screw

Green

Ground Wire
