2 • Installing the Hanger Bracket
CAUTION: To avoid possible electrical shock, before installing your
fan, disconnect the power by turning off the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the off position, securely fasten a prominent
warning device, such as a tag, to the service panel.
2-1. Drill two pilot holes into the wood support structure through
the outermost holes in the outlet box. The pilot holes should
be 9/64” in diameter.

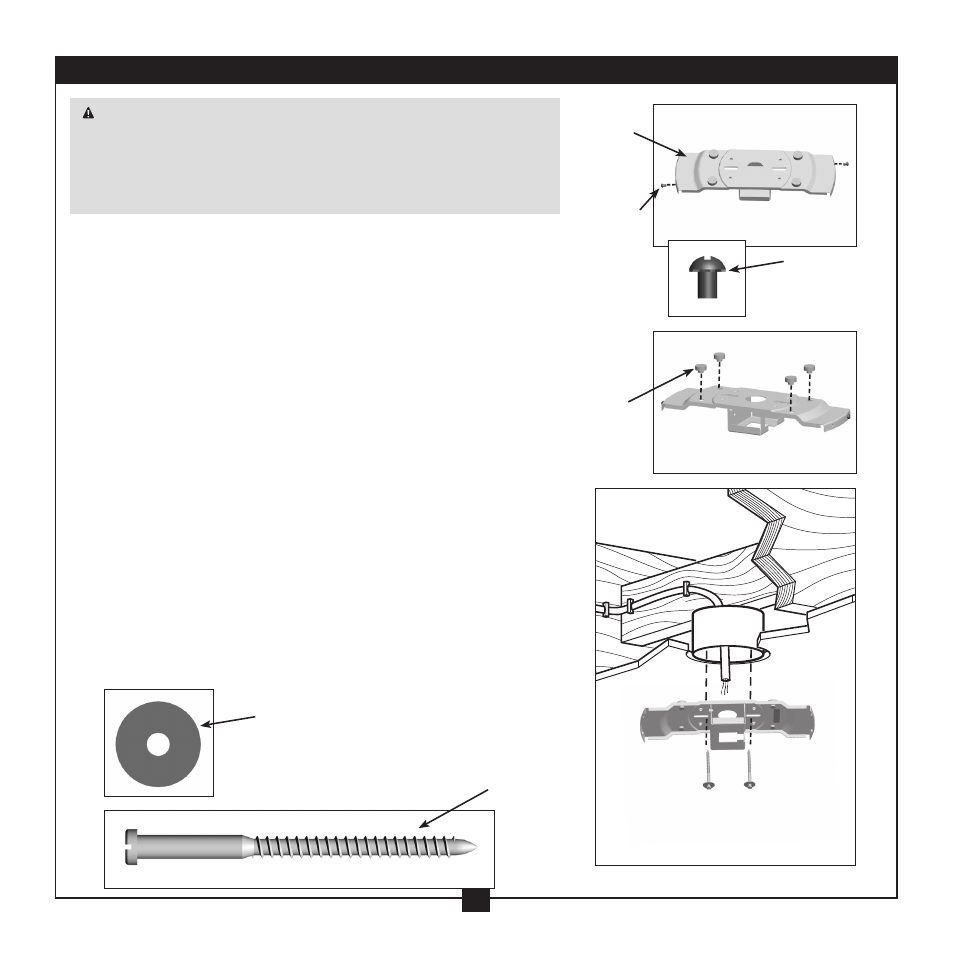

2-2. Partially install two canopy screws in the holes on each end
of the hanger bracket, as shown in the figure to the right.
2-3. Your fan comes with four mounting isolators. Position the
isolators between the hanger bracket and ceiling by inserting
the raised areas on each isolator into the holes in the hanger
bracket.
2-4. Thread the lead wires from the outlet box down through the
hole in the middle of the hanger bracket.
2-5. Align the slotted holes in the hanger bracket with the pilot
holes you drilled in the wood support structure.
Note: The isolators should be flush against the ceiling.
2-6. Place a flat washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the hanger bracket into
the pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use
lubricants on the screws. Do not over tighten.
Step 2-2
Flat Washer
3” Wood Screw
Steps 2-4 – 2-6
Hanger
Bracket
Step 2-3
Canopy Screw
Canopy
Screw
Isolator
