1 Loosen the fastening screws of the back cover,unpack
the back cover gently, avoiding to break the clip claw.
Figure 1
3 Stretch out the drain hose to the right of the frame
from the groove. Fasten it in the base frame with the
drain hose support, and fasten the screws.Then hang
the hook in the drain hose, and hang the drain hose in
the hole of the cabinet. (Figure 3)
2 Take the drain hose from the cabinet, make the mouth of
it flat a little, dismantle the pothook, loosen the fastening
screws, dismantle the drain hose support ,and pull the drain
hose into the cabinet from the left of the base.
Figure 2
Screws
Back cover
( Figure 3 )
(Figure 4)
Lower hook
Upper tab
Side tab
Make the mouth of the
drain hose flat, take off
the pothook.
Drain hose frame
Screws
A
1.Never let the drain hose exceed 10cm above the
ground. If the timeof draining is too long, the washing
machine will stop in the midway.
3. If the drain hose is too long, cut it at mid point. To make
smooth drainage, cut the front end of the hose slantingly.
4. If extra drain hose is needed, please make separate
purchase. The inner diameter of the extra hose shall
not less than 30mm, and the length shall not exceed
1.5m.
5. If the extra hose is too long,cut it either at A or
at B
<10cm
A B
> 30mm
<1.5m

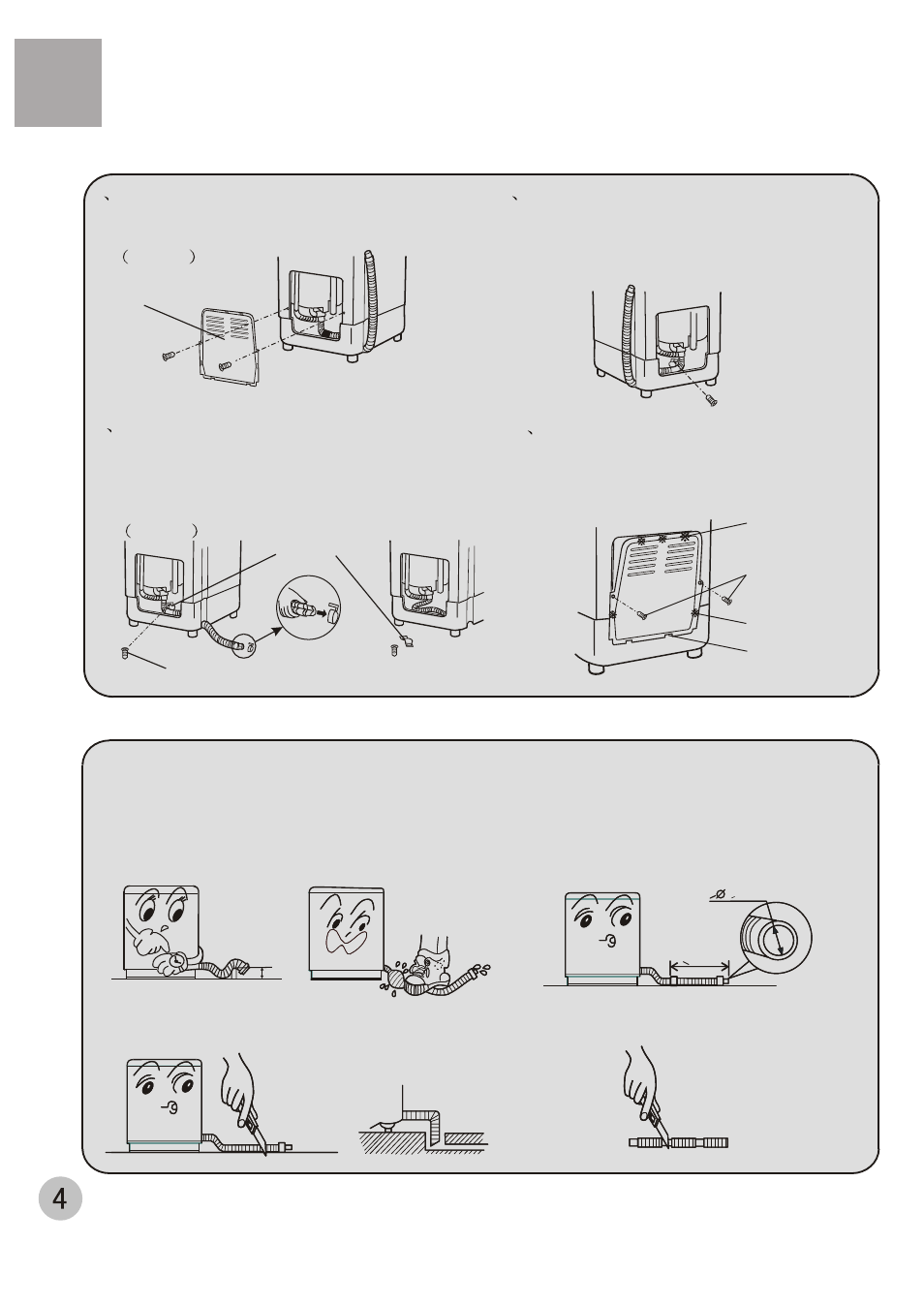

How to change the direction of the drain hose
Usage of the drain hose
The drainage shall be smooth with the drain hose.
2.Do not step on or press the drain hose.
Before Using Before Using
( Figure 2 )
4 Install the back cover. Hang the under side of the
back cover on the cabinet firstly, then push the left
, the right tab and the upside into the cabinet.
Do not do it strongly, and fasten the screws.
(Figure 4)
