SKU 92386 for technical questions, please call 1-800-444-3353. Page 20
Install a new Saw Blade (4). Always use Diamond Saw blades with a 7” diam-
eter, 5/8” round arbor hole, and rated at 3550 rpm or greater.
(See figure p, previous page.)

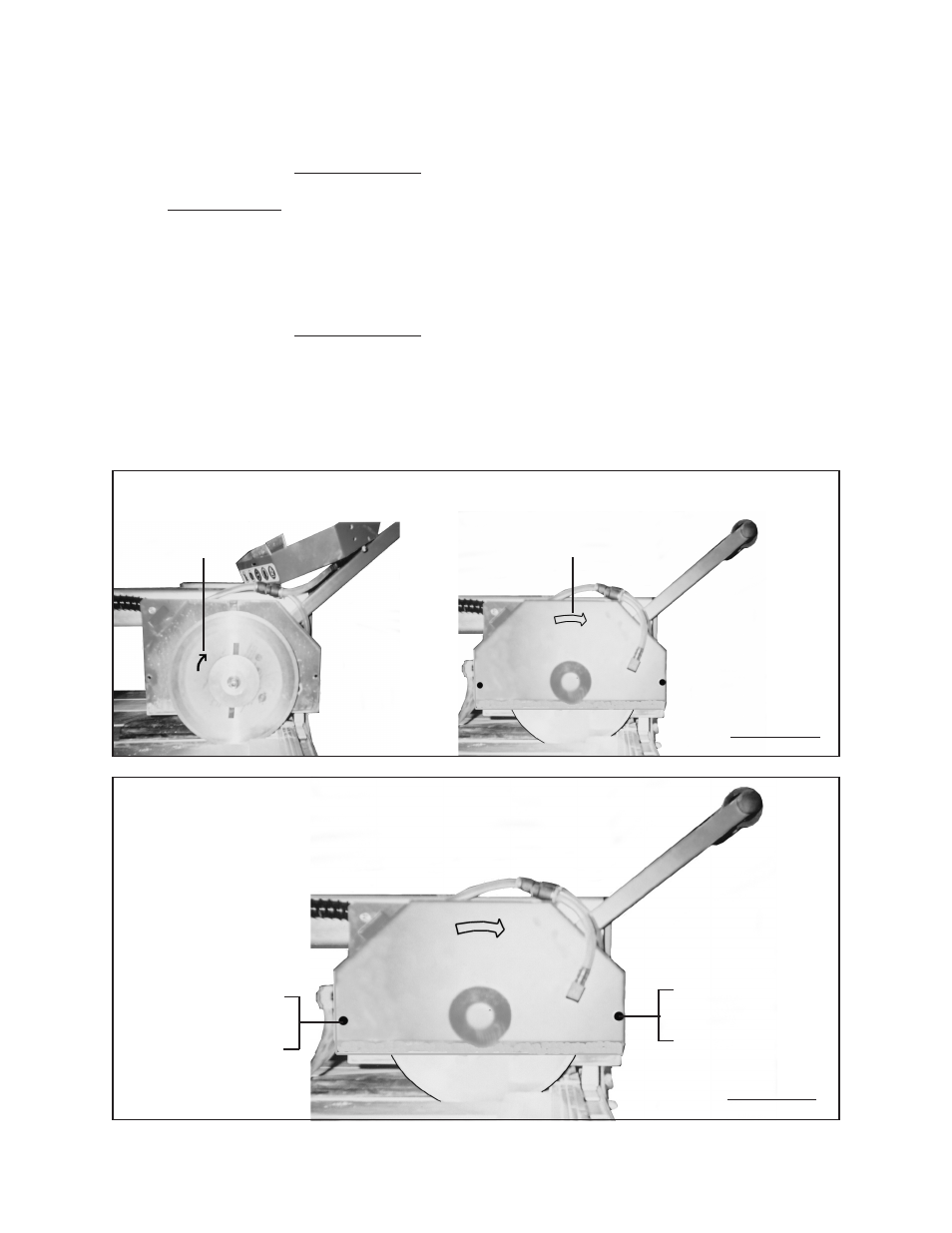

ImpOrTANT: When installing a Saw blade (4), make sure the “ArrOW” de-
picted on the side of the Saw blade points in the same direction as that of the
blade guard (12). (See figure r.)
Once the Saw Blade (4) is installed, refasten the Outside Flange (5) and Nut (6).
Make sure to tighten the Nut fully before using the Tile Saw.
(See figure p, previous page.)
Carefully lower the Blade Guard (12) back into its original position. Then secure
the Blade Guard in place using the Bolts (91), Spring Washers (89), and Washers
(88).
(See figure S.)
6.
7.
8.
9.
SAW blADe (4)
ArrOW
blADe guArD (12)
ArrOW
fIgure r
bOlT (91)
SprINg WASHer (89)
WASHer (88)
bOlT (91)
SprINg WASHer (89)
WASHer (88)
fIgure S
