42
To adjust the Bottom View:
1. Highlight Bottom View on the Sonar X-Press™ Menu.
2. Use the LEFT or RIGHT 4-WAY Cursor Control keys to change the
Bottom View setting. (Inverse, Structure ID®, WhiteLine®, Bottom
Black, Default = Inverse)
Quad Layout
(with Optional-Purchase QuadraBeam PLUS™
Transducer, Side Beam View only)
Quad Layout selects the method used to represent the sonar information from
the two side-looking beams plus the down-looking beam to be presented on
the Side Beam View, and is only available when an optional-purchase
QuadraBeam PLUS™ transducer is attached and the Side Beam View is active.
Use Quad Layout to change the way the Side Beam View is displayed. See Side
Beam View for more information.

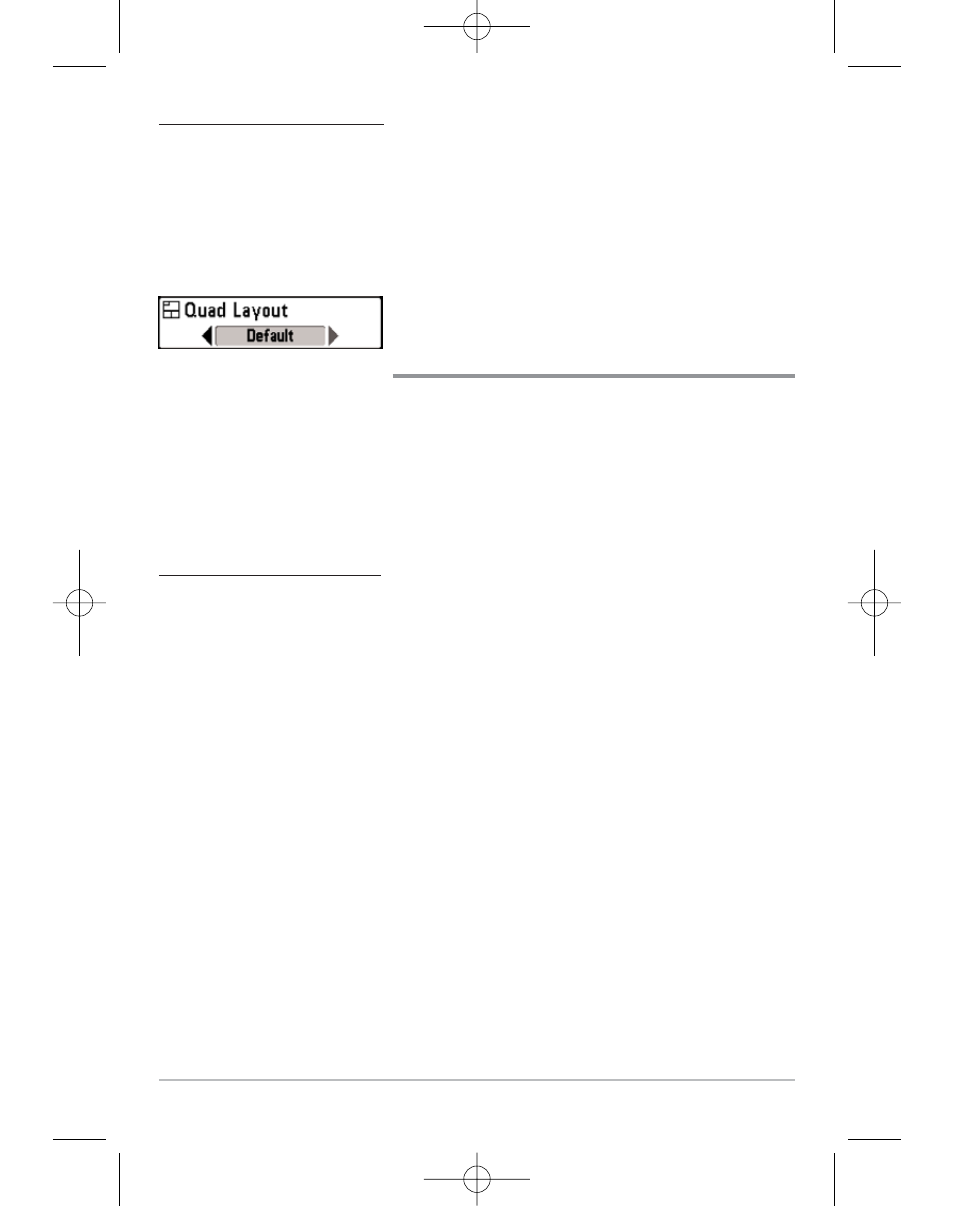

To adjust the Quad Layout:
1. Highlight Quad Layout on the Sonar X-Press™ menu.
2. Use the LEFT or RIGHT 4-Way Cursor Control keys to change the Quad
Layout setting for the Side Beam View. (Default, Classic, Slanted,
Default = Default)
