Hunter Fan ASHBURY 81003 - Manual (Page 6)

41937-01 10/26/2010
6
A
3 Pin
2 Pin
Fan Motor
Light Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground
A14
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option

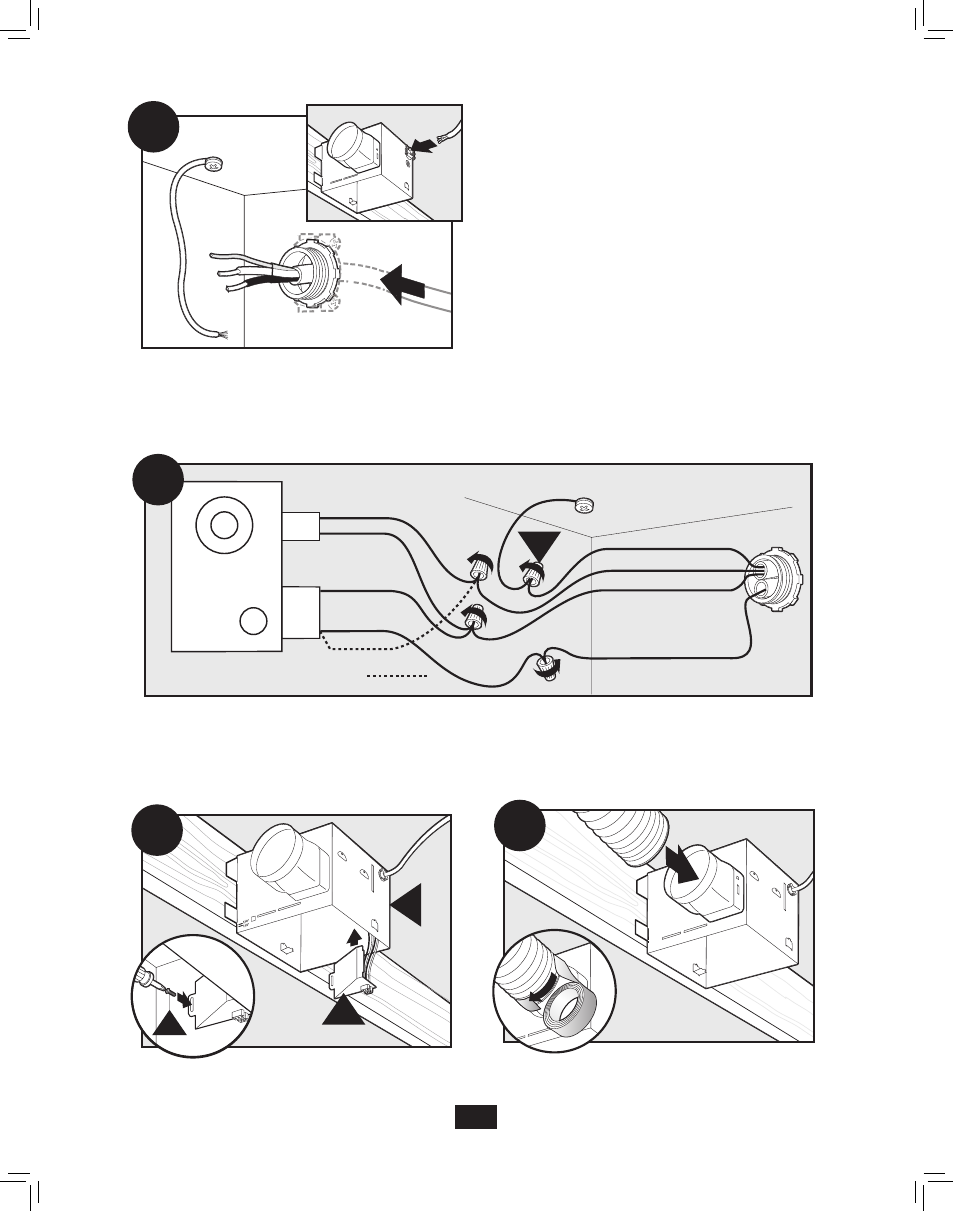

Connect wires as shown.
A13
Route wires through the strain relief. For supply
connection, use wires suitable for at least 90º C (194º F).
0 0 A16
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may need
to be purchased.
A15
E
F
G
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
