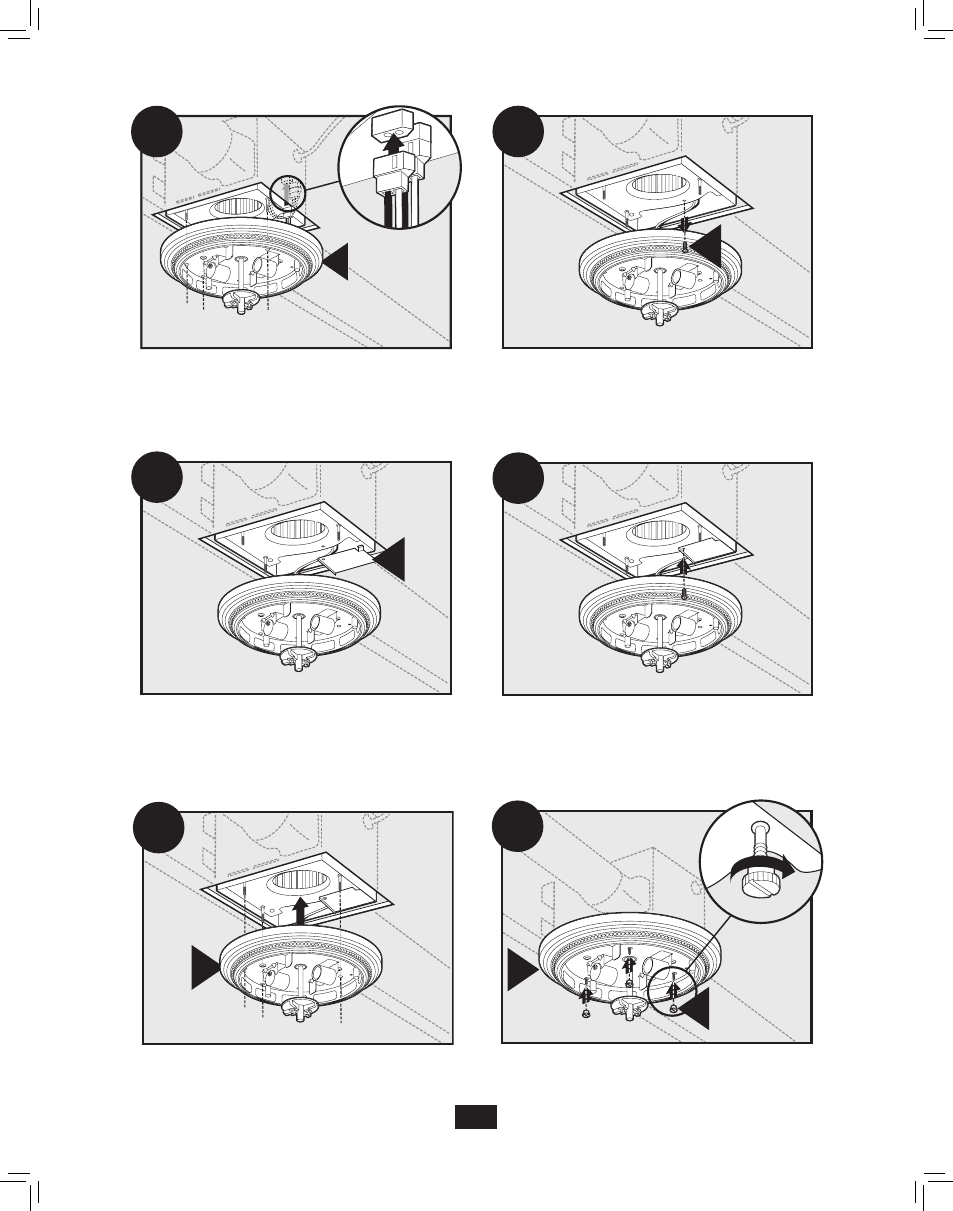

Remove the strain relief bracket screw.
Position the strain relief bracket under the
motor as shown.
Insert the strain relief bracket’s dog-leg tab so that
it hooks over the lip of the motor. Reinstall the
strain relief bracket screw.
L
C3
Connect wiring harness. DO NOT ALLOW THE FIXTURE
TO HANG FROM THE WIRING HARNESS.
C7
L L
C8
M
Align posts 1, 2, and 3 (stamped into motor housing) with
posts 1, 2, and 3 (stamped into light fixture). Slide light
fixture over posts.
Attach thumbscrews.
WARNING: To reduce the risk of electrical shock,
all 3 thumbscrews MUST be properly installed.
